Junction Box Transmitter RTS39
GB
Model
RTS39E5003-01
RTS39E5003-02
Technical Details
Frequency: 868.3 MHz
Modulation: FSK
Coding: Easywave A/B/C/D
Power supply: 230 V AC
Power consumption: max. 0.7 W
Range: up to 75 m under
open field conditions
Degree of protection: IP20
Operating temperature: -20 °C to +60 °C
Dimensions: 48/48/25 mm
Weight: 32.0 g
Scope of Delivery
Juncttion box transmitter, operating instructions
Intended Use
The Junction Box Transmitter may only be used
to operate Easywave radio receivers in undim-
med load circuits.
The manufacturer shall not be liable for any da-
mage caused by improper or non-intended use.
Safety Advice
Before using the device, carefully read
through the operating instructions
Caution! Electrical installation may only be
carried out by a qualified electrician!
Control unobserved never moving equipment or
electric heaters.
Note also the operating instructions of the radio
receiver.
Have faulty radio controls checked by the
manufacturer!
Do not make any unauthorized alterations or
modifications to the transmitter!
Function
With the flush-mounted transmitter RTS39, the
functionality of existing switches or buttons can
be extended by a radio interface.
If a voltage is present at a switch or button, the
transmitter transmits the corresponding Easy-
wave code (A/B/C/D) to an Easywave receiver,
which then switches another device.
Start-Up
1. Mount the transmitter into a standard junction
box.
Attention! Make sure there is no inter-fe-
rence with the wireless connection. Do not
1
mount the device in a distribution box, in me-
tal casings, in direct proximity to large metal
objects, on the floor or close to it.
2. Use with the jumper J the desired mode. Fac-
tory, the transmitter is supplied to the switch
operation (jumper J plugged).
3. Connect the power supply wires and switches
or buttons in a voltage-free state as shown in

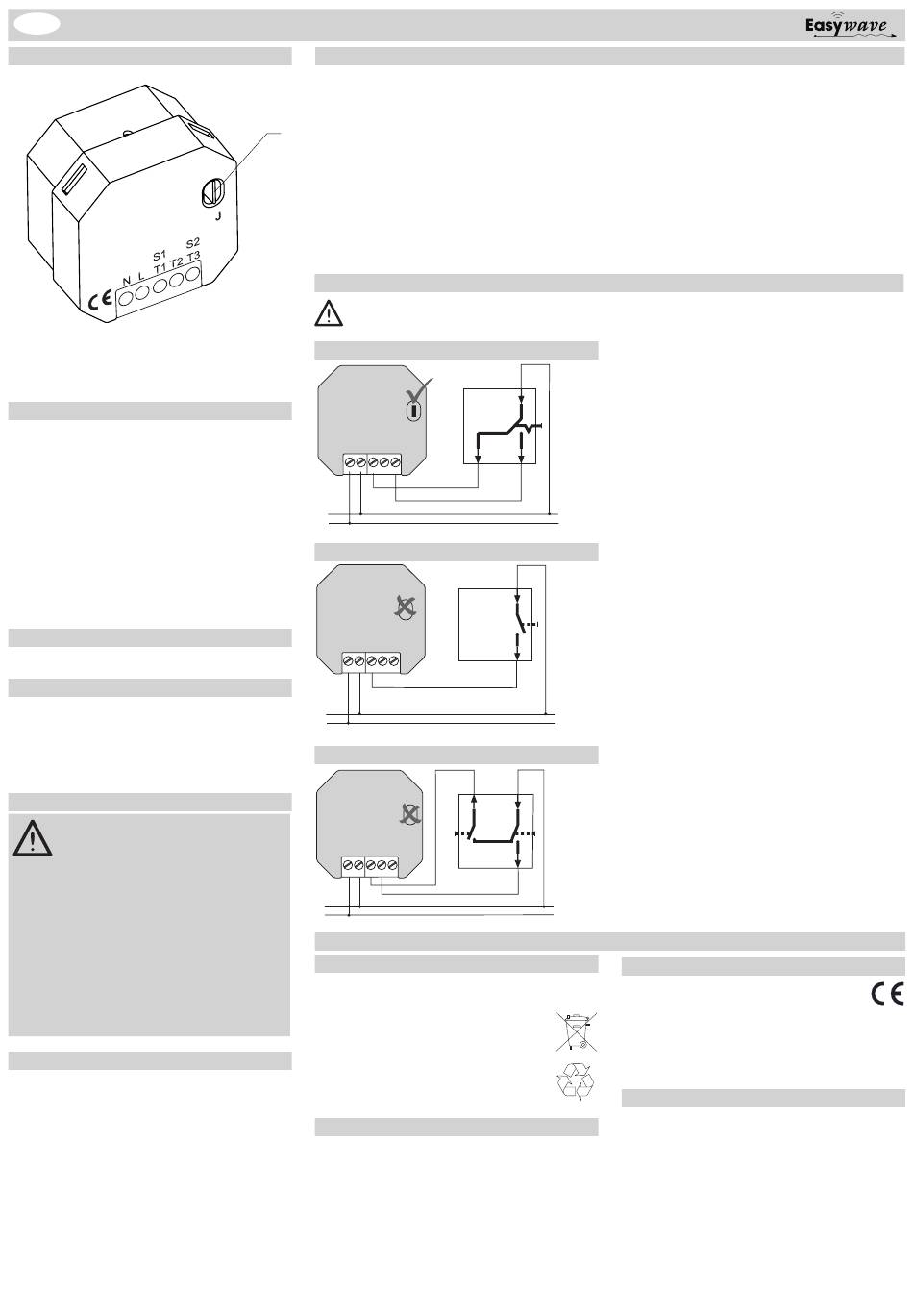

Connection Diagram
All connecting lines (N, L, S1 and S2, T1 to T3) should be directly (<2 m) connected to the
switch/push button which is upgraded.
1 Jumper
Connection to a switch
S1 S2
N L
230 V
L
N
Connection to a push-button
N L T1 T2 T3
230 V
L
N
Connection to a shutter-control
N L T1 T2 T3
230 V
L
N
General Information
Disposal
Waste electrical products and batteries not
be disposed of with household waste!
Dispose of the waste product via a col-
lection point for electronic scrap or via
your specialist dealer.
Put the packaging material into the
recycling bins for cardboard, paper and
plastics.
Warranty
Within the statutory warranty period we under-
take to rectify free of charge by repair or replace-
ment any product defects arising from material or
production faults.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty
null and void.
L
J
S1
S2
L
J
T
T1 L
AUF
J
ZU
T2
the connection diagram.
Attention! Check with local electrical regula-
tions!
4. Put the lid on the junction box. Then turn off
the power supply again. Memorize the trans-
mission code in the receivers. Please read
the operating instructions supplied with the
receivers.
If the switch / button now pressed, the transmitter
transmits the appropriate control command to the
receiver.
Jumper J is plugged
The transmission starts on every change of state
of the switch and lasts approx. 0,5 seconds.
switch 1: Input S1
transmission-code A: close switch
transmission-code B: open switch
switch 2: Input S2
transmission-code C: close switch
transmission-code D: open switch
Jumper J is not plugged
Transmission lasts as long as the button is
pressed but max. 10 seconds.
push-button 1: Input T1 transmission-code A
push-button 2: Input T2 transmission-code B
push-button 3: Input T3 transmission-code C
Several inputs can not be switched simultane-
ously.
Jumper J is not plugged
Transmission lasts as long as the button is
pressed but max. 10 seconds.
push-button 1: Input T1 transmission-code A
push-button 2: Input T2 transmission-code B
Several inputs can not be switched simultane-
ously.
Conformity
This product conforms to the basic
requirements of the R&TTE Directive
1999/5/EC.
For use in: EU/CH/FL/IS/N
The Declaration of Conformity can be found on
the Internet at: www.eldat.de.
Service
If, despite correct handling, faults or malfunctions
occur or if the product was damaged, please
contact your retailer or the manufacturer.
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Telefax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-mail: info@eldat.de
UM100372D 0914 D/GB
