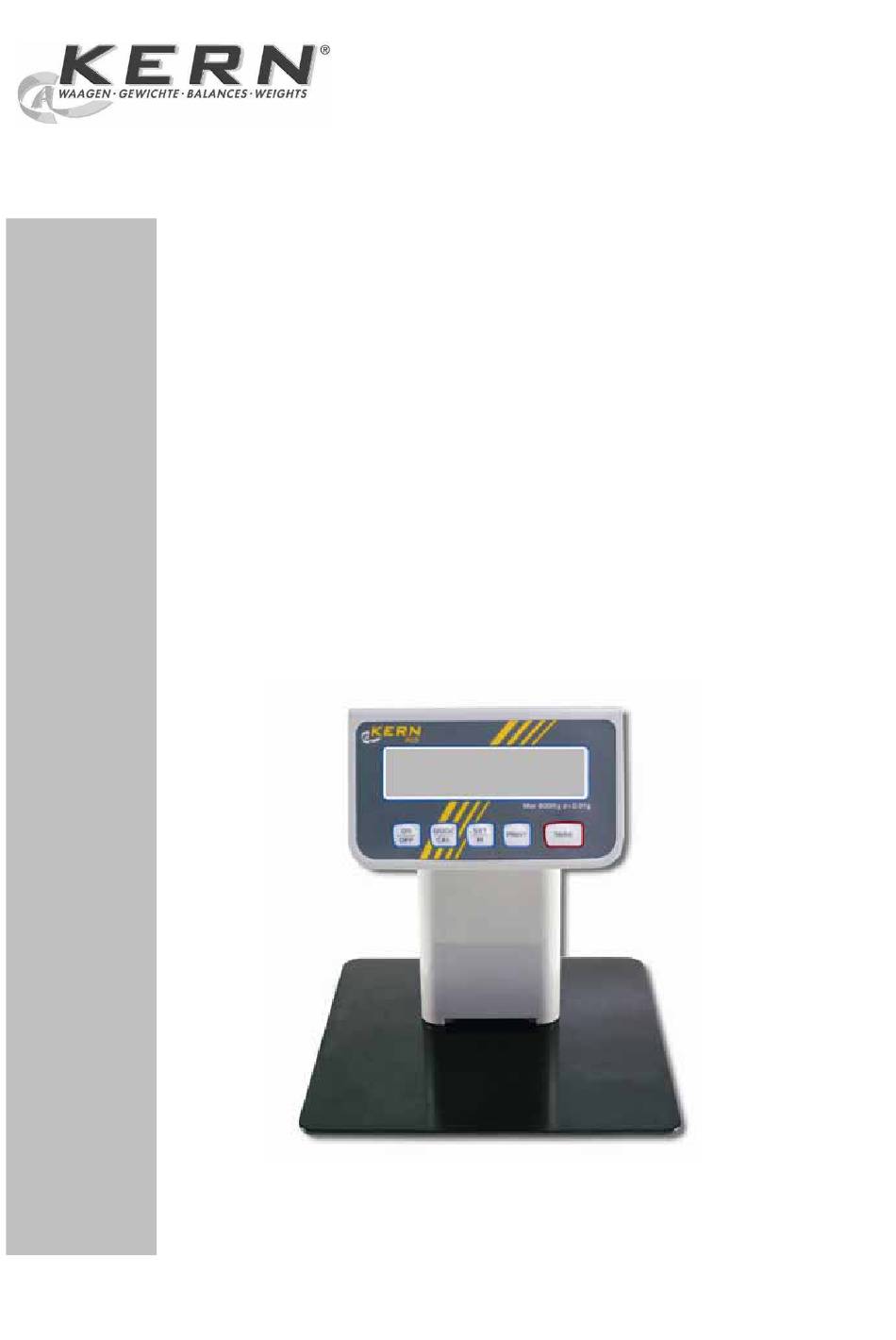

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Assembly instructions Tripod KERN PCD-A03 Version 1.0 08/2011 PCD-A03-IA-e-1110...

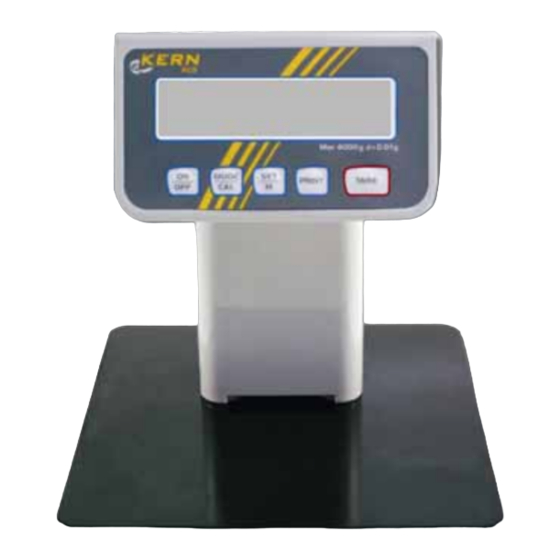

- Page 2 KERN PCD-A03 Version 1.0 08/2011 Assembly instructions Tripod Scope of delivery: Qty. Components Tripod Screws Cable guidance Technical data Tripod height 25 cm Dimensions 195 x 195 x 250 mm PCD-A03-IA-e-1110...
- Page 3 Assembly: There are several possibilities to use the tripod PCD-A03: Variant 1 The tripod is placed on a base foot next to the balance. Variant 2: The tripod is assembled to the platform of the balance Slacken 4 screws on the rear side of...
- Page 4 Variant 1 Put the cable on the rear side of the tripod through the cable guidance and fasten cable guidance by 4 screws PCD-A03-IA-e-1110...
- Page 5 Variant 2: Unscrew 2 screws at the lower side of the adjustment foot Push together tripod and support of the platform PCD-A03-IA-e-1110...
- Page 6 Fasten with screws Put the cable on the rear side of the tripod through the cable guidance and fasten cable guidance by 4 screws PCD-A03-IA-e-1110...
- Page 7 PCD-A03-IA-e-1110...
