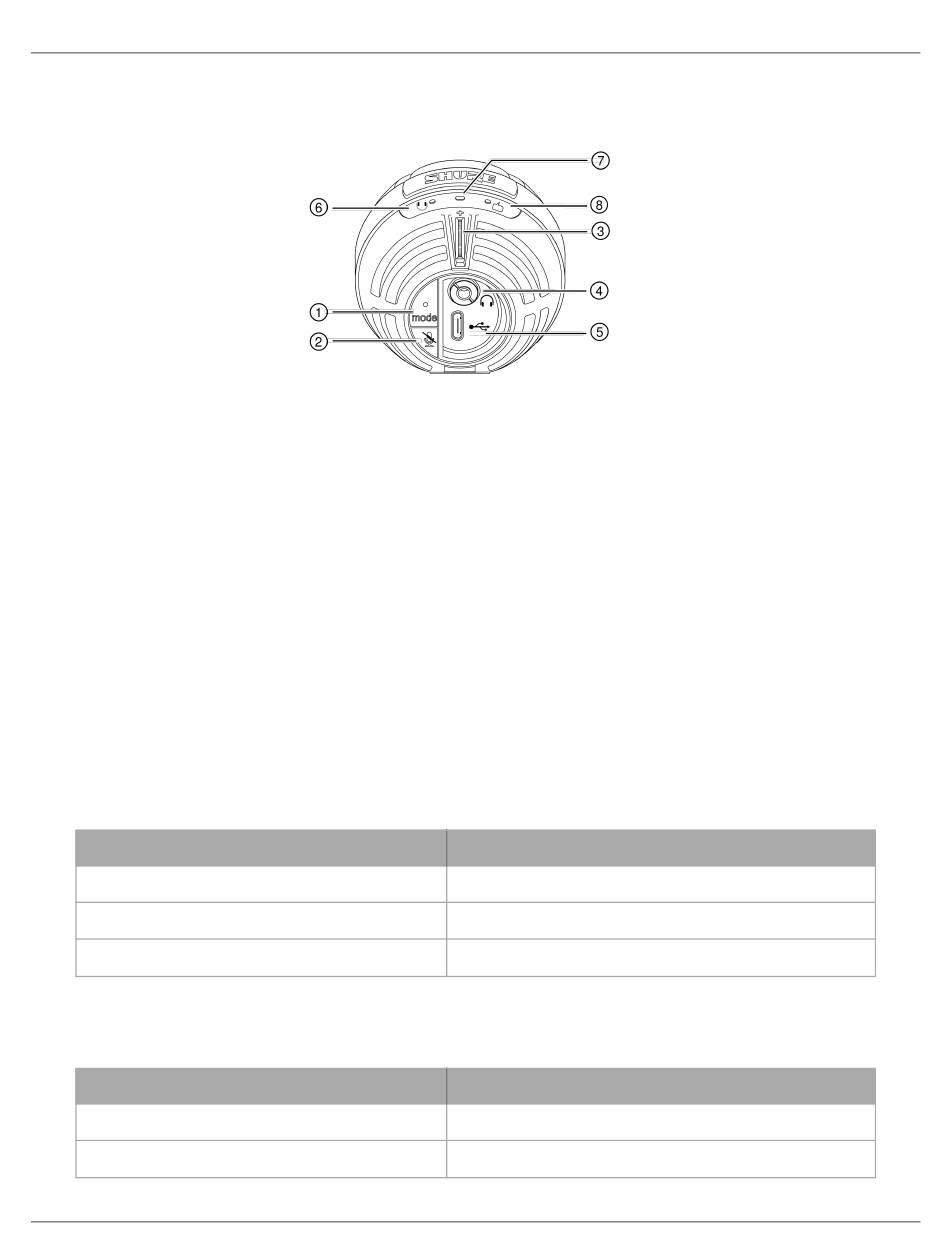

Connections and Controls

① Mode Selection Button
Press to turn speech mode on and off.
② Mute Button
Press to mute the microphone input. All MV5C LEDs will turn red when microphone is muted.
③ Headphone Volume Control
Adjusts the headphone volume when the MV5C headphone output is enabled.
④ Headphone Output
Plug in any headphones with a 3.5 mm (1/8 inch) connector.
⑤ Micro USB Port
Use the appropriate cable (USB-A or USB-C) to connect the MV5C to a computer.
⑥ Monitor Indicator (Headphone LED)
LED Behavior
Green
Red
Off
Note: Direct monitoring refers to listening to playback through the MV5C headphone output.
⑦ Status Indicator
LED Behavior
Green
Red (all 3 LEDs)
Status
Headphone output is enabled. Direct monitoring is on.
Headphone output is enabled. Direct monitoring is off.
Headphone output is disabled.
Status
Active USB connection
Muted
