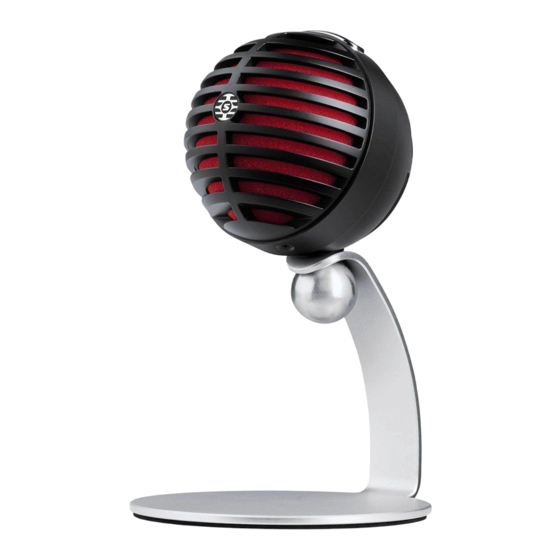

- Page 1 Digital Condenser Microphone The Shure digital condenser microphone, MV5, user guide. Version: 5.0 (2022-J)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Accessing the Control Panel MV5 Digital Condenser Microphone Input Meter Level General Description Listening Through Headphones Features Sampling Rate and Bit Depth Quick Setup Troubleshooting Connections and Controls System Requirements Preset Modes System Requirements and Compatibility: Mac... -
Page 3: Mv5 Digital Condenser Microphone
General Description ® The Shure MV5 microphone connects directly to a computer or mobile device over a USB or Lightning connection. Ideal for home recording or podcasting, the MV5 features preset voice and instrument record modes for fast, easy configuration. -
Page 4: Connections And Controls
Shure Incorporated Connections and Controls ① Mode Selection Button Press to switch between preset modes ② Mute Button Press to mute the microphone input ③ Headphone Volume Control Adjusts the headphone volume ④ Headphone Output Plug in any headphones with a 3.5 mm (1/8 inch) connector ⑤... -
Page 5: Advanced Mic Settings
Shure Incorporated Mode Application Characteristics Use for speech or vocals Equalization to emphasize clarity and fullness, and gentle compression to keep in podcasting or musical levels consistent. A de-esser reduces sibilance (the harsh sound that occurs when Voice applications words with an "S" are spoken). -
Page 6: Placement
Shure Incorporated Tap to access the MOTIV equalizer. Equalization changes are displayed in the equalizer image. EQ persists between preset mode changes. Placement This section suggests microphone placement for typical use cases. Keep in mind that there are many effective ways to record a given source. -
Page 7: Additional Tips
Shure Incorporated Additional Tips Shure offers additional educational publications on recording techniques for specific instruments and applications. Visit www.shure.com for more information. Adjusting Microphone Level Microphone level (gain) typically does not need adjustment when using the appropriate preset mode. However, if you hear dis tortion or the audio is too low, adjust the microphone level in the Audio or Sound control panel of your computer or recording device. -
Page 8: Input Meter Level
Shure Incorporated Mac audio settings panel Input Meter Level If your digital audio workstation or recording software has input meters, adjust the microphone level so it peaks between -12 and -6 dB. Otherwise, simply listen to the audio to make sure it is loud enough and not distorting. -
Page 9: Troubleshooting
Shure Incorporated Troubleshooting Issue Solution The display does not illumi Make sure that the MV5 is fully plugged in. nate Check the computer sound control panel settings. When first connecting the MV5 to your Audio is too low computer, make sure to raise the computer volume level. -
Page 10: System Requirements And Compatibility: Android
Shure Incorporated System Requirements and Compatibility: Android Will work with any Android device that has: • Android Pie 9.0 and higher • USB Host Power Requirement of ≥100 mA • USB Audio Class 1.1 support and higher Android is a trademark of Google Inc. Note: See https://www.shure.com/MOTIVcompatibility... - Page 11 Shure Incorporated Power Requirements Powered through USB or Lightning connector Mute Switch Attenuation Mounting Stand Included Stand Adapter 1/4 inch 20 thread (standard tri-pod mount) Housing PC/ABS Net Weight Without Mounting Stand 0.09 kg (3.17oz.) With Mounting Stand 0.16 kg (5.64oz.) Dimensions 66 x 67 x 65 mm H x W x D Dimensions with Stand 89 x 142 x 97 mm H x W x D...
-
Page 12: Accessories
Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio and television reception. Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. - Page 13 Shure Incorporated Authorized European Importer / Representative: Shure Europe GmbH Department: Global Compliance Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Fax: +49-7262-92 49 11 4 Email: EMEAsupport@shure.de This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
