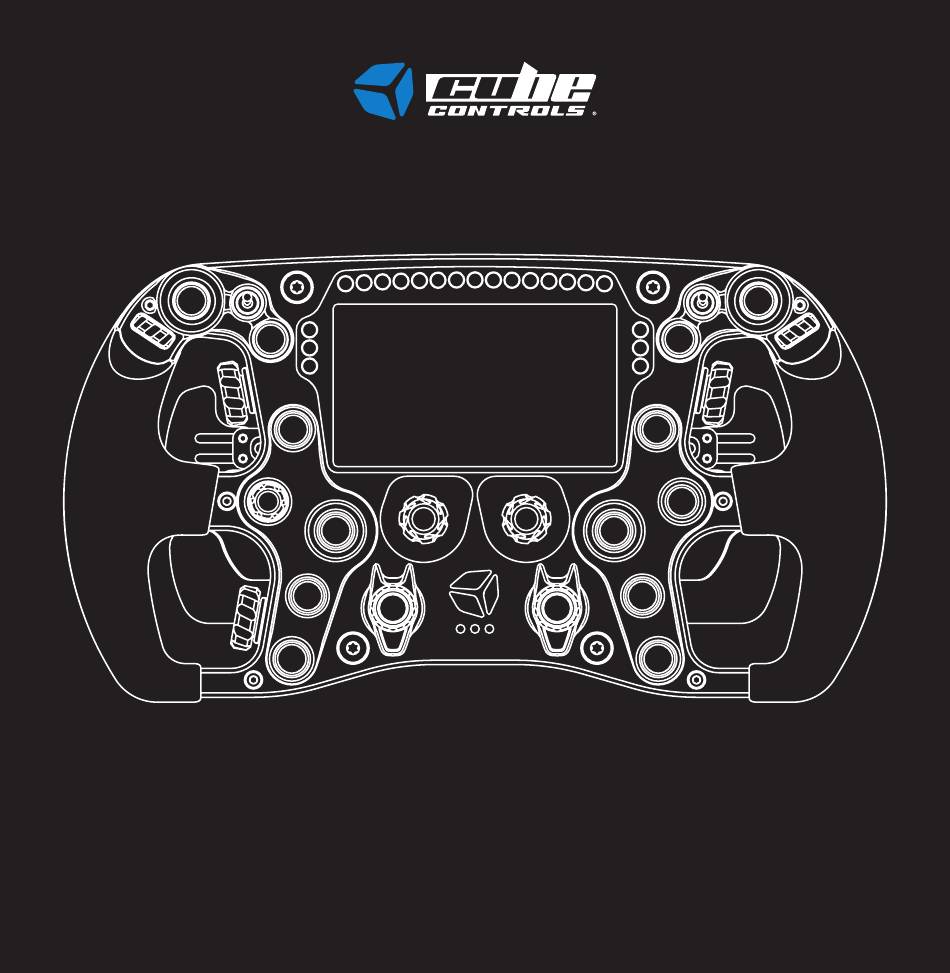

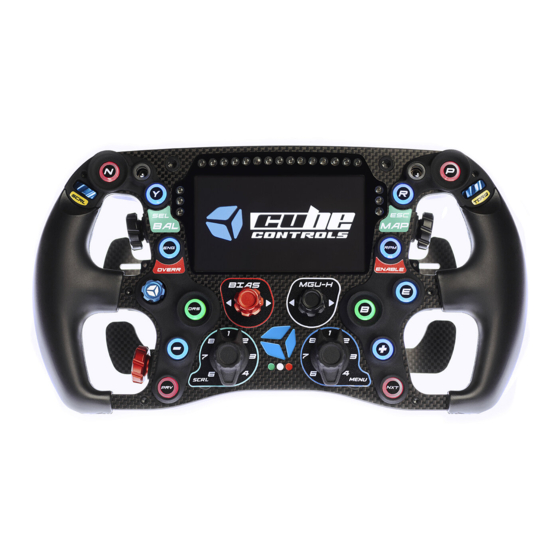

- Page 1 User Guide Formula CSX eSports Racing Wheel...
- Page 2 Due to continuous improvement, the actual product may differ from the manual. This manual is for reference only. For info or support contact us at hello@cubecontrols.com or visit us at www.cubecontrols.com...
- Page 3 S A F E T Y N O T I C E Please read the Manual carefully before you use the racing wheel. Please do not open the racing wheel, otherwise the supplier will not afford warranty service. This product does not have waterproof function, please keep it away from rain, moisture and other items containing liquid such as vape, cup and so forth.
- Page 4 I N T E R F A C E I N T R O D U C T I O N...
- Page 5 I N T E R F A C E N O T E S To use the POV switch (up, down, left, right) you are supposed to just gently move the joystick knob into the desired direction. If you feel the tactile “click”, you are also pressing the center button (button 29).
- Page 6 Finding the correct clutch knob setting: In a practice session, set the clutch knob at around 50% of its travel, fully depress both clutch paddles, engage first gear, reach the optimal engine RPM, release the right clutch paddle. As the car starts gaining speed, release the left clutch paddle and shift gears as normal.
- Page 7 U S B C O N N E C T I O N Connect the steering wheel by only using the provided cable. Please note that the wheel connector it’s keyed as the picture below, so it fits only one way. Once the plug it’s correctly seated into the body receptacle, secure it by turning the retaining ring as bottom right picture.
- Page 8 C O N N E C T I N G T H E W H E E L Each CSX steering wheel is provided with a dedicated Y style splitter USB extension cord. User must use this cable to connect the CSX wheel to your pc, otherwise if plugged directly to a standard front/back panel USB port it might not work as expected due to the port not being able to supply enough power.
- Page 9 B E F O R E F I R S T U S E The Formula CSX steering wheel needs the Ultimate Game Tech (UGT) software to display data streamed from the simulator. It’s also a needed tool useful to customize and configure various options. It can be downloaded from ultimategametech.com On the same website, there is a quick introduction on the Layout Generator, and a useful general guide on the UGT software.
- Page 10 Adjusting shift paddles activation point Introduction: Although all the racing wheels are already tested and should work correctly straight out the box, you might need to adjust the shifter sensor activation point for a correct use on your setup. If the paddles are already set correctly, you may skip these steps.
- Page 11 On the left side of the new window as highlighted in the next screen- shot there is the setting you need to adjust, “Digital Switch Point”. Usually the ideal value is 50, and all CSX steering wheels are factory programmed with such a value. If for some reason you are experiencing the shifter button not being recognized properly you must...
- Page 12 W H E E L I N S T A L L A T I O N Our universal hub on the back of the wheel body allows the user to install various adapter, or even connect it directly to your FFB base. Highlighted in blue the M5x0.8 metric holes.
- Page 13 P A D D L E S A D J U S T M E N T Shift paddles can be easily adjusted to better suit your hand size and driving preferences. T10 drive needed. Length can be adjusted by slightly loosening the two screws highlighted in the right picture, and sliding forward/backwards the...
- Page 14 Make sure your rig is grounded correctly. Main wheel body and hub are connected to the wheel own USB ground. Each wheel comes with an auxiliary USB connector that comes out from the main hub. This will be used with our Cube Controls quick release kit.
- Page 15 S H I F T E R S M A I N T E N A N C E If lubricant dries up you might experience the paddle shifter not coming back to its original position freely. Once a year it’s highly recommended to put a really small drop of lubricant (sewing machine oil or similar) on the points as the...
- Page 16 W W W . C U B E C O N T R O L S . C O M...
