Summary of Contents for Cube Controls GT

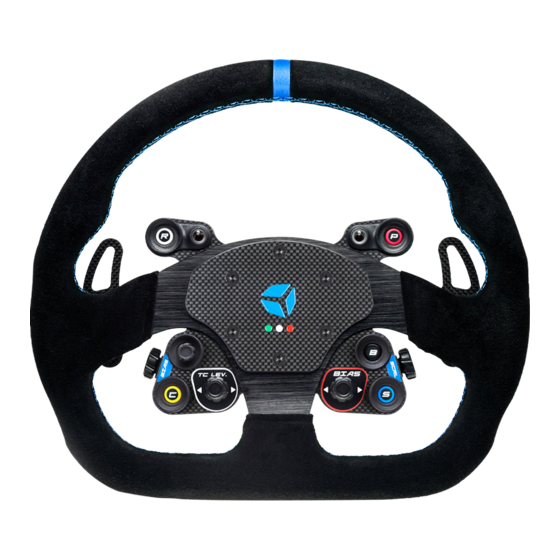

- Page 1 User Guide GT wireless eSports Racing Wheel...
- Page 2 Due to continuous improvement, the actual product may differ from the manual. This manual is for reference only.
-
Page 3: Safety Notice
Safety notice Please read the Manual carefully before you use the racing wheel. Please do not open the racing wheel, otherwise the supplier will not afford warranty service. This product does not have waterproof function, please keep it away from rain, moisture and other items containing liquid such as vape, cup and so forth. -
Page 4: Interface Introduction
Interface introduction L TOGGLE R TOGGLE DOWNSHIFT UPSHIFT 2 WAY TOGGLE 2 WAY TOGGLE ENCODER ENCODER ENCODER ENCODER... - Page 5 POWER BUTTON WIRELESS ANTENNA...
- Page 6 Syncing to your SimuCUBE Turn on the steering wheel by pressing the power button indicated in the picture above. The steering wheel enters discovery mode and announces itself to the SimuCUBE base for 30 seconds. Discovery mode can also be activated by pressing both paddle shifters simultaneously.
-
Page 7: Battery Information
Battery information The Formula wireless wheel features a 3.7V 1500mAh LiPo battery that should allow around 40 hours of use before needing to be charged again. Battery status can be seen via the LED indicator on the front of the wheel as drawing on page 3. -
Page 8: Charging The Battery
Charging the battery To charge the battery connect the steering wheel to your PC by only using the provided cable. Please note that the wheel connector it’s keyed as the picture below, so it fits only one way. Once the plug it’s correctly seated into the body receptacle, secure it by turning the retaining ring as bottom right picture. -
Page 9: Wheel Installation
Wheel installation Our universal hub on the back of the wheel body allows the user to install various adapter, or even connect it directly to your FFB base. Highlighted in blue the M5x0.8 metric holes. In gray, 5,5mm through holes. Both of them are available in 70mm or 50.8mm bolt pattern. - Page 10 Paddles adjustment Clutch and shifter paddles can be easily adjusted to better suit your hand size and driving preferences. T10 drive needed. Length can be adjusted by slightly loosening the two screws highlighted in the right picture, and sliding forward/backwards the carbon paddle.
-
Page 11: Useful Tips
Useful tips Each wheel comes with a full sheet of stickers and a set of plastic tweezers useful to install them as your liking. Before applying the sticker make sure the surface it’s clean. Black and white long labels are designed to be placed over the dial setting name: Try to install the USB coiled cable by wrapping it loosely on your FFB motor... - Page 12 Shifters maintenance If lubricant dries up you might experience the paddle shifter not coming back to its original position freely. Once a year it’s highly recom- mended to put a really small drop of lubricant (sewing machine oil or similar) on the points as the drawing on the right indicates, just where the lever body touches the base of the shifter when...
- Page 13 Adjusting shift paddles activation point Introduction: Whilst all the racing wheels are already tested, you might need to adjust the shifter sensor activation point for a correct use on your setup. Needed tools: Torx T10 drive and a small philips screwdriver (both provided). Accessing the trimmers Locate and remove the two Torx screws on the back of the wheel as high- lighted in the next picture:...
- Page 14 Select your Simucube controller Go to Control Panel and access the Game Controllers window.
- Page 15 Select your Simucube base from the list and open the properties panel. You should now see a window that displays all your controllers buttons:...
- Page 16 Adjusting the trimmers Carefully place a small philips screwdriver inside the screw hole leaved by the screw you removed in the previous step, and move it slightly until it engages the trimmer. It sits around 10mm below the surface of the main body. There is one trimmer for each right (upshift) and left (downshift) paddles.
- Page 17 Notes...
