- Page 1 Use and maintenance owner’s manual Cube Controls racing wheels - Formula Classic and Formula Wireless - GT Classic and GT Wireless Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 2: Table Of Contents
Configuration Maintenance Warning Safety Checks and operations before starting Periodic maintenance Configuration procedure Exceptional maintenance Decommissioning Troubleshooting Disabling the device Power on procedure Dismantling and disposal Power off procedure Operating procedure Use and Maintenance Manual – Cube Controls Steering Wheels... - Page 3 Section 1 Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 4: Manufacturer Data
Email Address hello@cubecontrols.com Website www.cubecontrols.com REPAIR AND ASSISTANCE Exceptional maintenance and technical assistance must only be carried out by Cube Controls Srl or an authorized service centre named by the manufacturer. Use and Maintenance Manual – Cube Controls Steering Wheels... - Page 5 Cube Controls Srl holds the property rights and copyrights on this user manual. It is forbidden to hand over to third parties or reproduce this document, to use or disclose its contents in any way to third parties without prior authorization to do so by the manufacturer.
- Page 6 PRODUCT, ITS COMPONENTS, OR EXPOSE THE USER TO DANGER. DANGER DANGER SIGNS INDICATE PROCEDURES WHOSE TOTAL OR PARTIAL NON-OBSERVANCE MAY CAUSE SERIOUS INJURY TO THE USER OR OTHER PERSONS IN THE VICINITY OR SERIOUS DAMAGE TO THE PRODUCT. Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 7: Symbols
The following symbols are contained in or on the device: MANDATORY READING SIGNAL OF OBLIGATION TO READ THE MANUAL. WARNING SYMBOLS THAT CONTAIN A SAFETY FUNCTION OR WARNING SIGNS MUST NOT BE REMOVED, COVERED OR DAMAGED. Use and Maintenance Manual – Cube Controls Steering Wheels... - Page 8 Section 2 Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 9 This warranty applies to original owner only who has complied with the proper maintenance instructions contained in the manual. Our warranty liability is not extended when the original owner transfers ownership of the product or if any changes have been made to the product. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 10 Date of purchase (proof of purchase is required). Detailed description of failure. NOTE FAILURE TO COMPLY WITH THE PROCEDURES, WARNINGS AND INSTRUCTION OF USE OF THE DEVICE HEREIN CONTAINED RESULTS IN THE FORFEITURE OF THE WARRANTY. Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 11: General Safety Standards
NOTE THE MANUFACTURER DECLINES ALL LIABILITY FOR DAMAGES CAUSED BY THE IMPROPER USE OF THE DEVICE AND BY THE NON- OBSERVANCE OF THE INSTRUCTIONS AND WARNINGS DESCRIBED IN THIS MANUAL Use and Maintenance Manual – Cube Controls Steering Wheels... -
Page 12: Safety Standards
Always keep the user manual in a safe and convenient place for future reference. WARNING WARNING SIGNS INDICATE PROCEDURES WHOSE TOTAL OR PARTIAL NON OBSERVANCE MAY CAUSE DAMAGE TO THE PRODUCT, ITS COMPONENTS, OR EXPOSE THE USER TO DANGER. Use and Maintenance Manual – Cube Controls Steering Wheels... -
Page 13: General Description

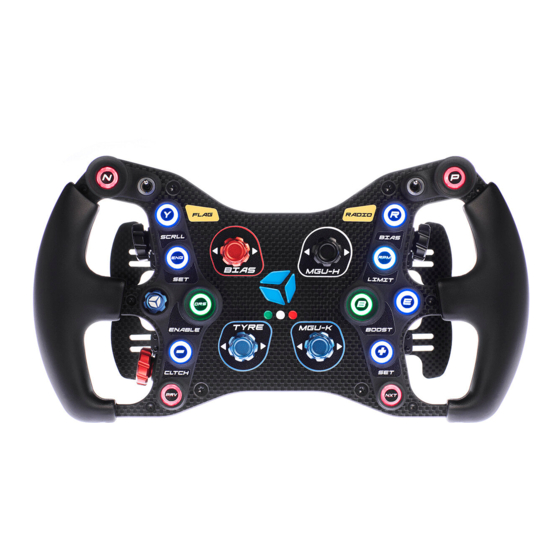

GENERAL DESCRIPTION Cube Controls steering wheels are reproductions of real steering wheels designed for simulation use only. This product is made of coated aluminium, inclusive of all buttons and controls. There are several models available and they are divided in categories: Formula category and GT category. - Page 14 5 V D.C. (WxHxD) Weight (gr) ~ 1000 Power Consumption < 300 mA External Material Anodized Aluminium Input Radio Data Formula Classic Category Radio Transmitter Radio Frequency Maximum Radio Power Output Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 15: Unintended Use
Maximum Radio 2.5 mW Power Output INTENDED USE Cube Controls steering wheels are reproductions of racing wheels intended for use in driving and game simulators. UNINTENDED USE The device was designed and manufactured exclusively for the use set forth in paragraphs: GENERAL DESCRIPTION and INTENDED USE, therefore it is absolutely forbidden any other type of application and use. -
Page 16: Residual Risks
In case of damages or accidental impact of the device resulting in the presence of sharp edges in the outward structure (aluminium frames and/or cladding), please contact the authorized assistance service and follow their instructions. Use and Maintenance Manual – Cube Controls Steering Wheels... - Page 17 (i.e. reliability of the devices) and management reasons. Therefore, the user is hereby informed of the potential residual risks reported. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 18 Section 3 Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 19 FFB base. Please refer to your adapter or motor manufacturer to ensure compatibility with the steering wheel. CONFIGURATION Warning All devices are fully assembled and tested by the manufacturer before the dispatch and delivery of the product. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 20 200 lux. Reporting damages to Cube Controls Srls If any damage or defect is found, consult the manufacturer before proceeding with any operation. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 21 Control Panel, access the Game Controllers window. • Select your Cube Controls Formula Wheel from the list and open the properties panel. • In the next window please check the operation of all the buttons.
- Page 22 • 10 blinks at a slow frequency. NOTE THE MANUFACTURER DECLINES ALL LIABILITY FOR DAMAGES CAUSED BY THE USE OF THE INAPPROPRIATE POWER SUPPLY SYSTEM NON-COMPLIANT WITH LEGAL REQUIREMENTS AND CERTIFICATIONS. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 23 Turn on the steering wheel by pressing the power button on the back of the wheel body. Operating Procedure To operate the device please follow the procedure below: • Install and start up the racing game on your PC to operate the steering wheel. Use and Maintenance Manual – Cube Controls Steering Wheels...
- Page 24 Section 4 Use and Maintenance Manual – Cube Controls Steering Wheels...
-
Page 25: Maintenance Safety
Do not use any spray products such as WD40 or similar. Update the software when a new version becomes available. To update the software: • Please contact Customer Support or visit the website of the manufacturer. Use and Maintenance Manual – Cube Controls Steering Wheels... -
Page 26: Exceptional Maintenance
These situations, which may occur from time to time, are completely unpredictable and therefore it is impossible to describe the appropriate intervention procedures. If exceptional maintenance is required, consult Cube Controls’ technical assistance for appropriate instructions on the situation. Any type of intervention must be carried out by specialized and authorized personnel named by the manufacturer. -
Page 27: Dismantling And Disposal
IN ITS ORIGINAL VERSION AND FOR THE PURPOSES SPECIFIED IN THIS MANUAL. THE MANUFACTURER DECLINES ALL LIABILITY FOR DAMAGES TO PEOPLE AND/OR THINGS RESULTING FROM THE RECOVERY OF PARTS OF THE EQUIPMENT AFTER ITS DISMANTLING Use and Maintenance Manual – Cube Controls Steering Wheels... - Page 28 Cube Controls Srl Z.Ind.le Predda Niedda - Sassari (SS) - Italy Ph. +39 348 3629338 - Mail. hello@cubecontrols.com www.cubecontrols.com Use and Maintenance Manual – Cube Controls Steering Wheels...
