Summary of Contents for Cube Controls Formula eSports

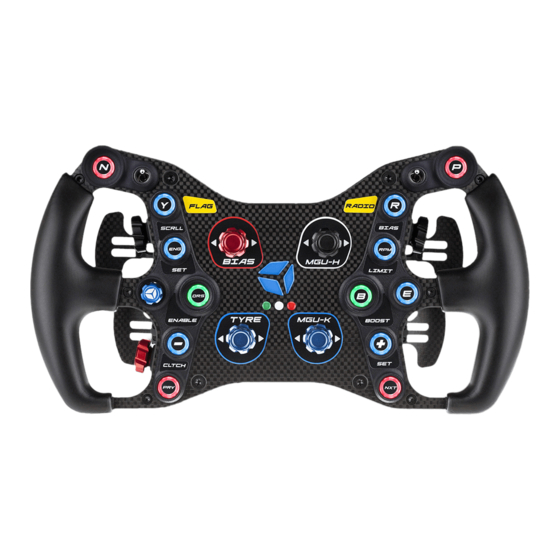

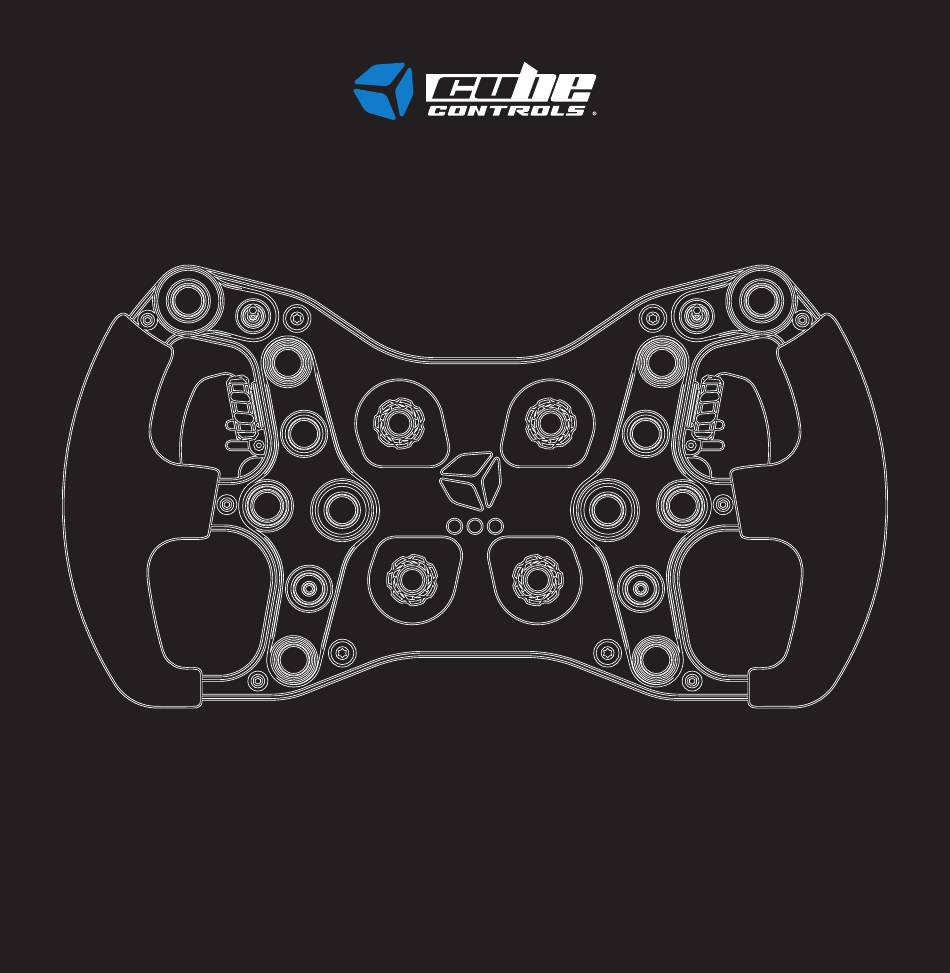

- Page 1 User Guide Formula eSports Racing Wheel...
- Page 2 Due to continuous improvement, the actual product may differ from the manual. This manual is for reference only. For info or support contact us at hello@cubecontrols.com or visit us at www.cubecontrols.com...
- Page 3 S A F E T Y N O T I C E Please read the Manual carefully before you use the racing wheel. Please do not open the racing wheel, otherwise the supplier will not afford warranty service. This product does not have waterproof function, please keep it away from rain, moisture and other items containing liquid such as vape, cup and so forth.
-
Page 4: Interface Introduction
I N T E R F A C E I N T R O D U C T I O N INTEGRATED WARNING LED INTEGRATED WARNING LED LEFT TOGGLE RIGHT TOGGLE STATUS LED STATUS LED LEFT TOGGLE: 16 RIGHT TOGGLE: 23 DOWNSHIFT: 30 UPSHIFT: 31 4 WAY POV SWITCH... - Page 5 I N T E R F A C E N O T E S 15 - 22 integrated warning leds (as well as backlit buttons) are present only on FORMULA-PRO spec wheels. To use the POV switch (up, down, left, right) you are supposed to just gently move the joystick knob into the desired direction.
- Page 6 Operating the launch control system: The maximum value of the left clutch paddle can be adjusted with the respective thumb knob. Therefore, if the clutch knob is set in the middle of its travel, when fully depressing the left clutch paddle, its value will go from the minimum to the value set by the clutch knob, which is middle in this example.
- Page 7 U S B C O N N E C T I O N Connect the steering wheel to your PC by only using the provided cable. Please note that the wheel connector it’s keyed as the picture below, so it fits only one way.
- Page 8 P A D D L E S H I F T E R S C A L I B R A T I O N Introduction: Although all the racing wheels are already tested and should work correctly straight out the box, you might need to adjust the shifter sensor activation point for a correct use on your setup.
- Page 9 Connect the steering wheel to your PC Connect the racing wheel to your PC with the provided coiled USB cable, wait for your computer to recognize the device and in Control Panel, access the Game Controllers window.
- Page 10 Select your wheel Select your Cube Controls Formula Wheel from the list and open the properties panel. You should now see a window that displays all your steering wheels buttons:...
- Page 11 Adjusting the trimmers Carefully place a small philips screwdriver inside the screw hole leaved by the screw you removed in the previous step, and move it slightly until it engages the trimmer. It sits around 10mm below the surface of the main body.
- Page 12 W H E E L I N S T A L L A T I O N Our universal hub on the back of the wheel body allows the user to install various adapter, or even connect it directly to your FFB base. Highlighted in blue the M5x0.8 metric holes.
- Page 13 P A D D L E S A D J U S T M E N T Clutch and shifter paddles can be easily adjusted to better suit your hand size and driving preferences. T10 drive needed. Length can be adjusted by slightly loosening the two screws highlighted in the right picture, and sliding forward/backwards the...
- Page 14 Make sure your rig is grounded correctly. Main wheel body and hub are connected to the wheel own USB ground. Each wheel comes with an auxiliary USB connector that comes out from the main hub. This will be used with our Cube Controls quick release kit.
- Page 15 S H I F T E R S M A I N T E N A N C E If lubricant dries up you might experience the paddle shifter not coming back to its original position freely. Once a year it’s highly recommended to put a really small drop of lubricant (sewing machine oil or similar) on the points as the...
- Page 16 W W W . C U B E C O N T R O L S . C O M...
