TV-Free
Video-in-motion Interface
TF-RTI11
for Volvo
RTI 2011 navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 05.11.2012
TF-RTI11
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems TF-RTI11
Summary of Contents for Caraudio-Systems TF-RTI11
- Page 1 TV-Free Video-in-motion Interface TF-RTI11 for Volvo RTI 2011 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

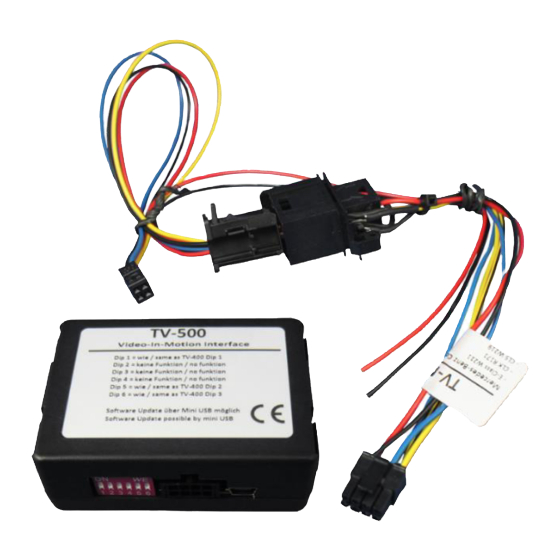

- Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. CAN-box TV-500 Harness HW_____ SW_____ TV-VOL01 Version 05.11.2012 TF-RTI11...
- Page 3 Dip 1 – activation TV-free Dip 2 – no function Dip 3 – no function Dip 4 – no function Dip 5 – CAN-bus termination resistor on the vehicle side Dip 6 – CAN-bus termination resistor on the head-unit side Version 05.11.2012 TF-RTI11...
- Page 4 3. Activation of the video-in-motion function 3.1. Vehicles without extra equipment On vehicles without extra equipment and Dip1 to ON (see chapter “Setting the Dip-switches of the Can-Box TV-500”) the video-in-motion function is activated permanently without disturbing the navigation performance. Version 05.11.2012 TF-RTI11...
- Page 5 ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm 5. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech dealer-support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...
