Caraudio-Systems usbLOGiC USB-MFD2-R1 Manual

Usb-av-player compatible with navigation systems volkswagen mfd2/rns2, rns510, rns810 skoda nexus/columbus seat trinax
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

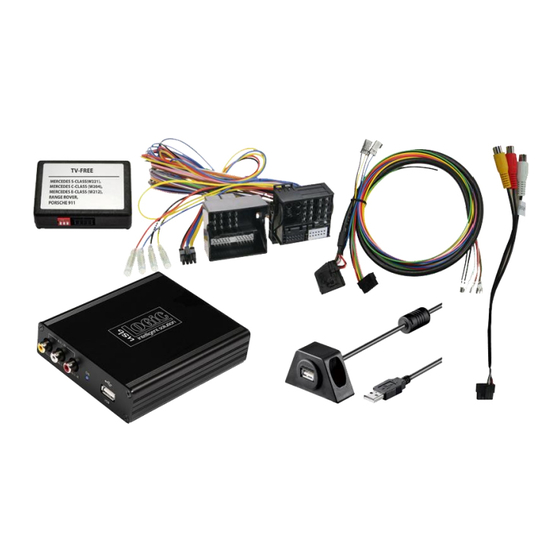

usbLOGiC USB-AV-Player
compatible with navigation systems
Volkswagen MFD2/RNS2, RNS510, RNS810
Only for vehicles WITH factory rear-view camera WITH camera control-box
Product features
• USB-port for media up to 2 TB (2000GB)
• supports FAT32 and NTFS formatted media
• multi partition capable
• compatible with MP3, AVI, VOB, MOV, RMVB, JPG and many more
• last position memory
• integrated into and controllable by vehicle infotainment
• AV-input with IR-control channel
• control of after-market devices by OEM buttons, e.g. DVD-player, USB/iPod devices, ...
• rear-seat-entertainment AV-output
• optional remote control for full USB functions/rear-seat-entertainment
• power on remote out trigger signal (+12V max 1A) to switch on connected devices
• video-in-motion
Version 31.05.2013
USB-MFD2-R1
USB-MFD3-R1
Skoda Nexus/Columbus
Seat Trinax
USB-MFDx-R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the usbLOGiC USB-MFD2-R1 and is the answer not in the manual?

Questions and answers

Related Manuals for Caraudio-Systems usbLOGiC USB-MFD2-R1

Summary of Contents for Caraudio-Systems usbLOGiC USB-MFD2-R1

  • Page 1 usbLOGiC USB-AV-Player USB-MFD2-R1 USB-MFD3-R1 compatible with navigation systems Volkswagen MFD2/RNS2, RNS510, RNS810 Skoda Nexus/Columbus Seat Trinax Only for vehicles WITH factory rear-view camera WITH camera control-box Product features • USB-port for media up to 2 TB (2000GB) • supports FAT32 and NTFS formatted media •...

  • Page 2: Table Of Contents

    Contents 1. Prior to Installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the dip switches of the CAN-box TV-400/403/500 1.4. Setting the dip switches of the USB-box USBC-M500/503 1.4.1. Deactivating usbLOGiC AV-input 2. Connection schema 3.

  • Page 3: Prior To Installation

    Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.

  • Page 4: Check Compatibility Of Vehicle And Accessories

    1.2. Check compatibility of vehicle and accessories Requirements Vehicle Volkswagen, Seat and Skoda With factory rear-view camera with camera control box Navigation MFD2/RNS2, RNS510, RNS810, Trinax, Nexus or Columbus navigation Limitations Factory-TV-tuner Must NOT be installed. USB-port Only for media which work with power supply by ONE single USB connector.

  • Page 5: Deactivating Usblogic Av-Input

    1.4. Setting the dip switches of the USB-box USBC-M500/503 The default dip switch settings of the USB-box need to be changed ONLY if the AV of the usbLOGiC shall be deactivated. The dip switches are located inside the USB-box. For changes it is necessary to open the box. Default settings are: Dip1 = ON, dip2 = OFF, dip3 = ON 1.4.1.

  • Page 6: Connection Schema

    2. Connection schema Version 31.05.2013 USB-MFDx-R1...

  • Page 7: Installation

    3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.

  • Page 8: Interconnecting Usb-Box, Can-Box And Harnesses

    3.1. Interconnecting USB-box, CAN-box and harnesses Plug harness C3C-AV into 6pin Molex of USB-box USBC-M500/503. Plug harness C2C-VWR into 8pin Molex of CAN-box TV-400/403/500. Plug harness C2C-VWR into 14pin Molex of USB-box USBC-M500/503. Plug female 18pin AMP-connector of C2C-VWR into male 18pin AMP-socket of USB-box USBC-M500/503.

  • Page 9: Connections To Head-Unit And Camera Control-Box

    3.2. Connections to head-unit and camera control-box Remove the head-unit from the dash-board and locate the camera control-box which is depending on the vehicle located either underneath the passenger seat, underneath the center console or above the wheel case of the rear right or left tire (e.g. T5 underneath the passenger seat, Tiguan rear right, Alhambra rear left).

  • Page 10: Usb And Optional Ir-Remote Control Set

    3.3. USB and optional IR-remote control set Connect USB-connector of USB-installation socket USBC-EXT to USB-socket of USB- box USBC-M500 and install the USBC-EXT socket in a well accessible location, e.g. the glove-box. Make sure there is enough space to load USB-media. Installation socket for the connection of USB-media.

  • Page 11: Av-Source

    3.4.1. AV-source The usbLOGiC has the possibility to connect and remotely control by navigation buttons a pre-programmed device. The device list in the device control table (appendix A) shows the pre-programmed remote channels and the related IR-remote cables STA-xxx which must be ordered separately for the control of the device.

  • Page 12: After-Market Rear-Seat-Entertainment

    3.4.3. After-market rear-seat-entertainment Using RCA-cables, connect the rear-seat-entertainment to the female RCA-connector VIDEO OUT of USB-box USBC-M500/503. Note: As the output is a full output, not shared with the video signal for the navigation system, splitting the video with an RCA Y-cable might give a good enough picture for two rear-seat-entertainment monitors.

  • Page 13: Selecting The Usblogic As Current Av-Source

    TV-500 The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.

  • Page 14: Assigning Device Control For Connected Av-Source

    4.4. Assigning device control for connected AV-source After selecting the usbLOGiC as current AV source, tap on the touch-screen to receive the options menu. Select Extras and then V-text. Select Seite (page). Enter “2”, followed by the device-related IR-code as described in device control table (appendix A).

  • Page 15: Menu/Setup Navigation

    4.5.3. Menu/setup navigation To navigate through menu or setup options of the AV-sources, it is necessary to see their picture/OSD, which is not possible in the Senderliste (channel list). Instead, after entering menu/setup, select Extras and then V-Text. Now menu navigation is possible by the arrow buttons in the upper left corner of the head-unit (left/right) and touch-screen:...

  • Page 16: Operation Mfd2/Rns2/Nexus

    5. Operation MFD2/RNS2/Nexus 5.1. Activation of the video-in-motion function The video-in-motion function is activated permanently without disturbing the navigation performance. 5.2. Selecting the usbLOGiC as current AV-source CD-Version - Push AUX button of head-unit , then select TV to choose the usbLOGiC as current AV-source. DVD-Version - Push CD button of head-unit, then select AUX to choose the usbLOGiC as current AV-source.

  • Page 17: Button Assignment Table

    5.5. Button assignment table The button assignment table shows which functions of usbLOGiC and additionally connected devices can be executed by head-unit buttons. Once USB or AV-input mode is activated, the head-unit button in the left column will execute the function described in the corresponding device column.

  • Page 18: Picture Settings

    5.6. Picture settings By pressing the button 17, it is possible to switch between 4:3 and 16:9 picture format. To enter the picture settings menu longpress button 11. The picture settings menu always starts with the brightness settings. The respective current picture value is displayed on the instrument panel.

  • Page 19: Technical Support

    8. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 31.05.2013 USB-MFDx-R1...

This manual is also suitable for:

Usblogic usb-mfd3-r1
