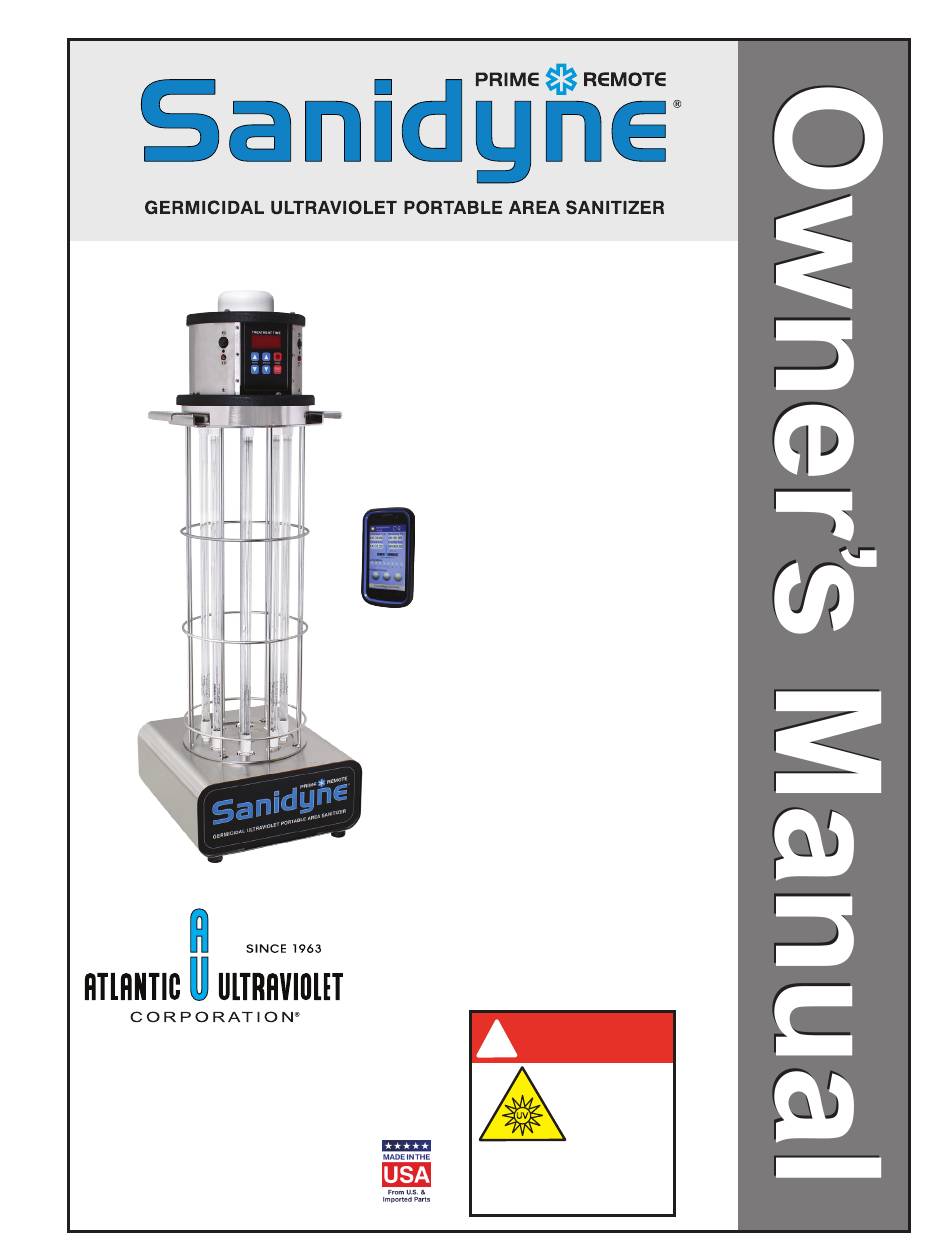

Models
40-0634B (120v)
40-0674B (230v)
8 High Output UV
Lamps with ArmorLite™
Germicidal Ultraviolet
Lamp Safety Shield
Installation,
Operation &
Maintenance
Read and Follow All
Safety Instructions.
Save These Instructions.
DANGER
!
Ultraviolet
Radiation
UV
Protect eyes and
skin from direct and
reflected radiation.
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlantic Ultraviolet Sanidyne 40-0634B
Summary of Contents for Atlantic Ultraviolet Sanidyne 40-0634B
- Page 1 (631) 273-0500 • Fax: (631) 273-0771 Email: Sales@AtlanticUV.com Radiation Ultraviolet.com • BuyUltraviolet.com Extensive Product Information Available at: Protect eyes and Ultraviolet.com skin from direct and BuyUltraviolet.com reflected radiation. Document No. 98-1709B2 • November 2020 • ©2020 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
The information and recommendations contained in this publication are based upon data collected by the Atlantic Ultraviolet Corporation and are believed to be correct. ® However, no guarantee or warranty of any kind, expressed or implied, is made with respect to the information contained herein. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. -
Page 4: Safety Labels
SAFETY LABELS Danger Label: Ultraviolet Location of Danger Label (70-0052A) on 2 Sides of System Radiation (70-0052A) Danger Label: Hazardous Location of Danger Labels (70-0053 and 70-0011) Voltage (70-0053) Hg-Lamp Contains Mercury Label (70-0011) Danger Label: Hazardous Voltage / Location of Danger Label (70-0038) on Both Sides of System Ultraviolet Radiation (70-0038) CAUTION It is the user’s responsibility to determine and validate the suitability of this equipment for use in the user’s system or... -
Page 5: Product Applications
PRODUCT APPLICATIONS onstruCtion The Sanidyne Prime Remote Portable Area Sanitizer consists of: ® • STER-L-RAY Germicidal ultraviolet lamps: Deliver ultraviolet energy at the specific wavelength of 254 nanometers (nm). ® This wavelength is highly effective against microbes including virus, bacteria, and mold spores. Germicidal ultraviolet rays are harmful to eyes and skin;... -
Page 6: Unpacking
• Remove the Sanidyne Prime Remote from its shipping carton. ® • Atlantic Ultraviolet Corporation takes all possible precautions when packaging this unit to prevent damage. Carefully inspect ® the unit, power cord and plug for damage, report all damage immediately. Do not assemble or operate if there is any damage, visible or suspected. -
Page 7: Verview
eyPaD ontroller verview Figure 2 – Keypad Controller Overview Treatment Time Displays HOURS : MINUTES TREATMENT TIME Power Indicator Hours Button Glows RED when power Up and Down Arrows set is applied, flashes during time from 0 to 24 Hours HOURS MINUTES POWER... -
Page 8: O Verview
emote ontroller verview Figure 3 – Hand-held Remote Controller Overview Start Pause Stop Lamp operation indicators. Illuminate yellow when lamps are on. *Numbers 10 and 15 both bring up Settings menu. General Rule of Selection: Except for the ON/OFF button located on the top-right edge of the Hand-held Remote Controller, all selections made to this device will require a gentle touch of a short period of time to achieve a response. -
Page 9: Amp Nstallation
5. Start Button: Starts treatment cycle time. Once selected: a) Remaining Time changes to Countdown Time and begins counting down from 1 minute and 30 seconds to exit area b) The words “LEAVE AREA” appear on the lower status bar. c) Alarm on unit begins to sound d) The word “PrEP”... -
Page 10: Nit Lacement
Step 3: Once pins are aligned Step 4: Applying pressure Step 5: Install the remaining seven correctly, press lamp base into lamp with your thumb on outside of lamps as described in steps 1– 4. socket until it is properly seated. Sanidyne Prime Remote, snap ®... -
Page 11: Sanidyne Prime ® Remote O Peration
aniDyne rime emote Peration ® The Sanidyne Prime Remote has two methods of controlling the unit; the Keypad Controller (Shown in Figure 2) and the ® Hand-held Remote Controller (Shown in Figure 3). These two controls mirror each other; treatment times entered into Keypad Controller will appear on the Hand-held Remote Controller and vice versa. -
Page 12: D Ate
NOTE: Once you select the start button an audible exit alarm will begin to sound and the Sanidyne Prime Remote ® will begin counting down from 1:30 seconds to allow all inhabitants to leave the area before the UV treatment begins. The words “LEAVE AREA”... -
Page 13: D Etermining T Reatment T
etermining reatment ime for izes The Sanidyne is intended for use in UNOCCUPIED AREAS ONLY. Under no Prime Remote ® circumstances should this unit be permitted to operate with humans, plants or animals present in the Operation Area. Consult our UV Application Specialists if you have any questions or need help with the Sanidyne Prime Remote. -
Page 14: Maintenance
MAINTENANCE IN ORDER TO PERFORM THIS TASK, WEAR PERSONAL PROTECTION EQUIPMENT; GLOVES, LONG SLEEVE SHIRT WITH NO GAPS BETWEEN CUFFS AND GLOVES, AND AN ULTRAVIOLET BLOCKING FACE SHIELD MUST BE WORN TO COVER AND PROTECT EYES AND EXPOSED SKIN. Always disconnect power to the fixture before performing any service or maintenance. •... -
Page 15: Use Eplacement
ePlaCement The fuse is contained in a small plastic tray at the bottom of the power connector. Remove the power connector from the back of the Sanidyne Prime Remote. A screwdriver can be used to access the fuse ® by inserting the blade in one of the horizontal slots and gently twisting the handle to bring the tray forward. 2. -
Page 16: Technical Specifications
BuyUltraviolet.com. (See “Replacement Parts” on Page 17 for item number.) For more information and purchasing contact our offices, weekdays between 8:30 am and 5:00 pm Eastern time, at: Atlantic Ultraviolet Corporation , 375 Marcus Boulevard, Hauppauge, New York, 11788 ®... -
Page 17: Replacement Parts
Face Shield & Adjustable Headgear 00-0126 Promate Danger Sign 8.5’’ x 11’’ 00-0098 / 00-0456 Fuse 35-0644 UVC Dosimeter Card 00-0373 Other replacement parts are available. Consult Atlantic Ultraviolet Corporation for specific requirements. ® MAINTENANCE LOG Date Maintenance Performed Service Person Comment(s) - Page 18 MAINTENANCE LOG Date Maintenance Performed Service Person Comment(s)
- Page 19 MAINTENANCE LOG Date Maintenance Performed Service Person Comment(s)
-
Page 20: User Assistance
WARRANTY & PRODUCT REGISTRATION We warrant this product to the original owner to be free from defects in material and workmanship when installed in accordance with Atlantic Ultraviolet Corporation specifications for a period of time as follows: ®...
