Technical Data - Castolin Eutectic POWERmax2 Operating Manual And Spare Parts List

Commissioning
Follow safety instructions.
Connect mains plug.
Connect TIG welding torch cable to adapter cable,
attach the cable to the minus terminal
equipment and lock by turning to the right.
Insert earth cable in plus terminal
turning to the right.
Attach gas tube to argon welding regulator.
The required rate of flow is 3 - 10 l/min.
Turn on main switch.
Tilt selector switch
Adjust welding current (the standard value may be
found in the table) on the welding current poten-
tiometer .
Open gas valve on torch.
Place torch with gas nozzle on the workpiece so that
a distance of 2 - 3 mm is maintained between the
electrode end and the workpiece.
Tilt the torch with the gas nozzle slowly until the
tungsten needle touches the workpiece.
Ignite the arc by carefully lifting the torch.
Start welding.
Stop welding by increasing the distance between
the torch and the workpiece, thereby breaking the
arc.
Standard values for setting parameters for thoriated (2%) and ceriated (2%) tungsten electrodes
Tungsten electrode
Ø/mm
1,0
1,6
2,4
and lock by
to TIG operation .
= (-)
Ampere
< 80
70 - 140
130 - 230

Technical data

Welding current range:
Welding current
at 35 % duty cycle
at 60 % duty cycle
of the
at 100 % duty cycle
No-load voltage (electrode):
Mains voltage:
Max. input power
at 100 % duty cycle
Power factor cos. ϕ:
Efficiency at 100 % duty cycle
Mains fuse rating:
Supply line cross section:
Enclosure protection class:
Cooling system:
Insulation class:
Dimensions L x W x H (mm):
Weight (excluding mains cable):
1
) 10 min. cycle, 40° C ambient temperature to comply with
EN 60974-1 european standard
Argon flow
l/min
3 - 4
4 - 5
4 - 6

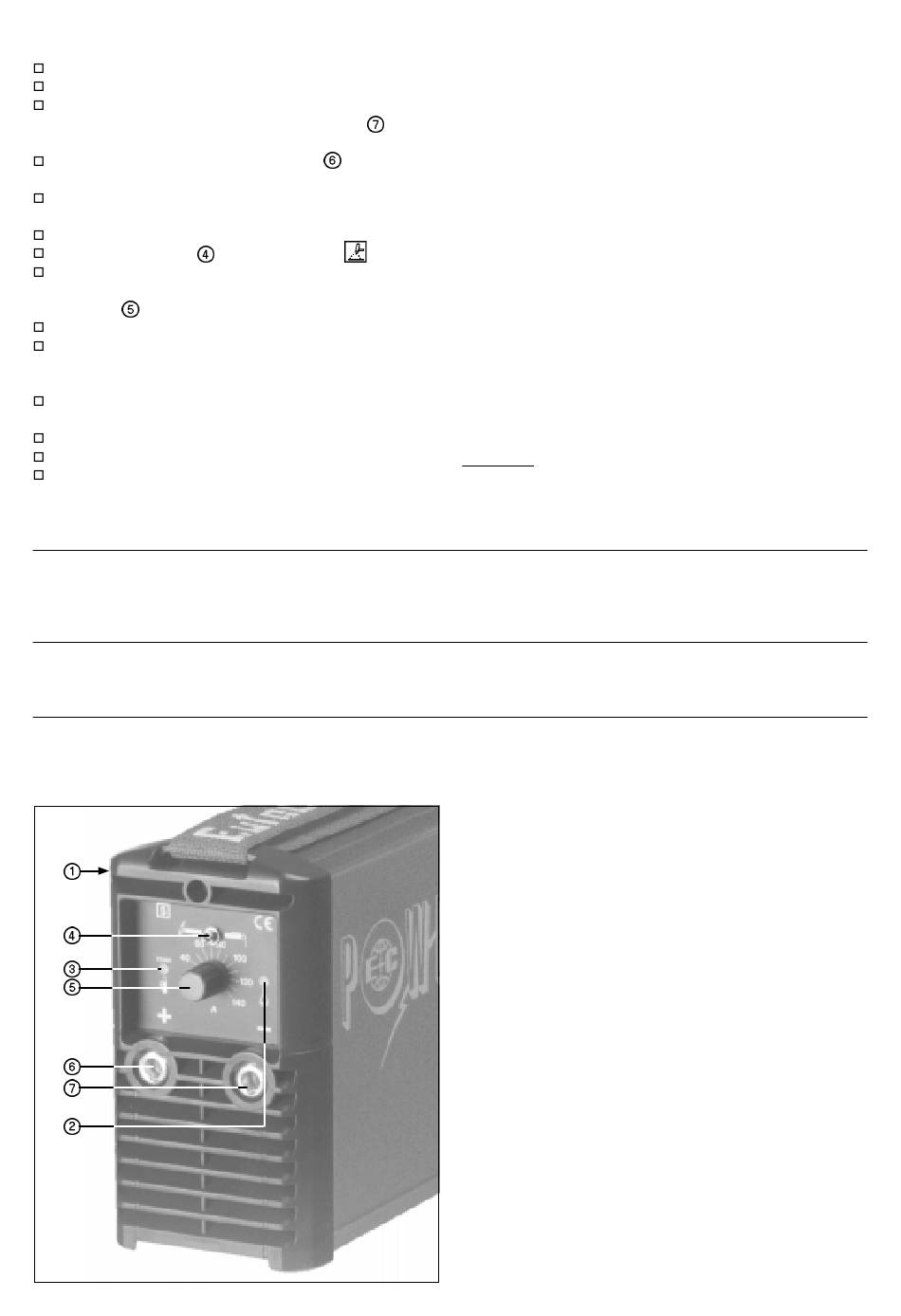

Fig. 2: Front view of POWERmax
1) Main ON/OFF switch (at the back)
2) Control diode for operation
3) Control diode for thermal overload
4) Selector switch for MMA / TIG
5) Read-out potentiometer for welding current (5 - 140 A)
6) Plus output terminal
7) Minus output terminal
5 A - 140 A
1
): 140 A
1
): 120 A
1
): 100 A
93 V
230 V
single phase
50/60 Hz
1
): 3,8 kVA
0,99
1
): 88 %
16 A slow blow
3 x 2.5 mm²
IP 23
AF
B
312 x 109 x 196
4.2 kg
Gas nozzle size
(G 140 RA)
4
6
8
2
9
