Installation

Remove the cap that's covering the locking mechanism, this is located on the
bottom of the NX-181xx. With the cap removed you now have access to the
locking mechanism that secures your NX-181xx to its mounting plate. Insert a
small flat head screwdriver until it is located under the locking tongue.
Whilst turning either clockwise or counter clock wise, slide the NX-181xx down
and clear of the locking tongue, you can now remove the NX-181xx from its
mounting bracket. Use the fixings supplied to secure the mounting plate to the
wall. The top of the NX-181xx will be 9 mm above the top of mounting bracket
after it is locked back in place.

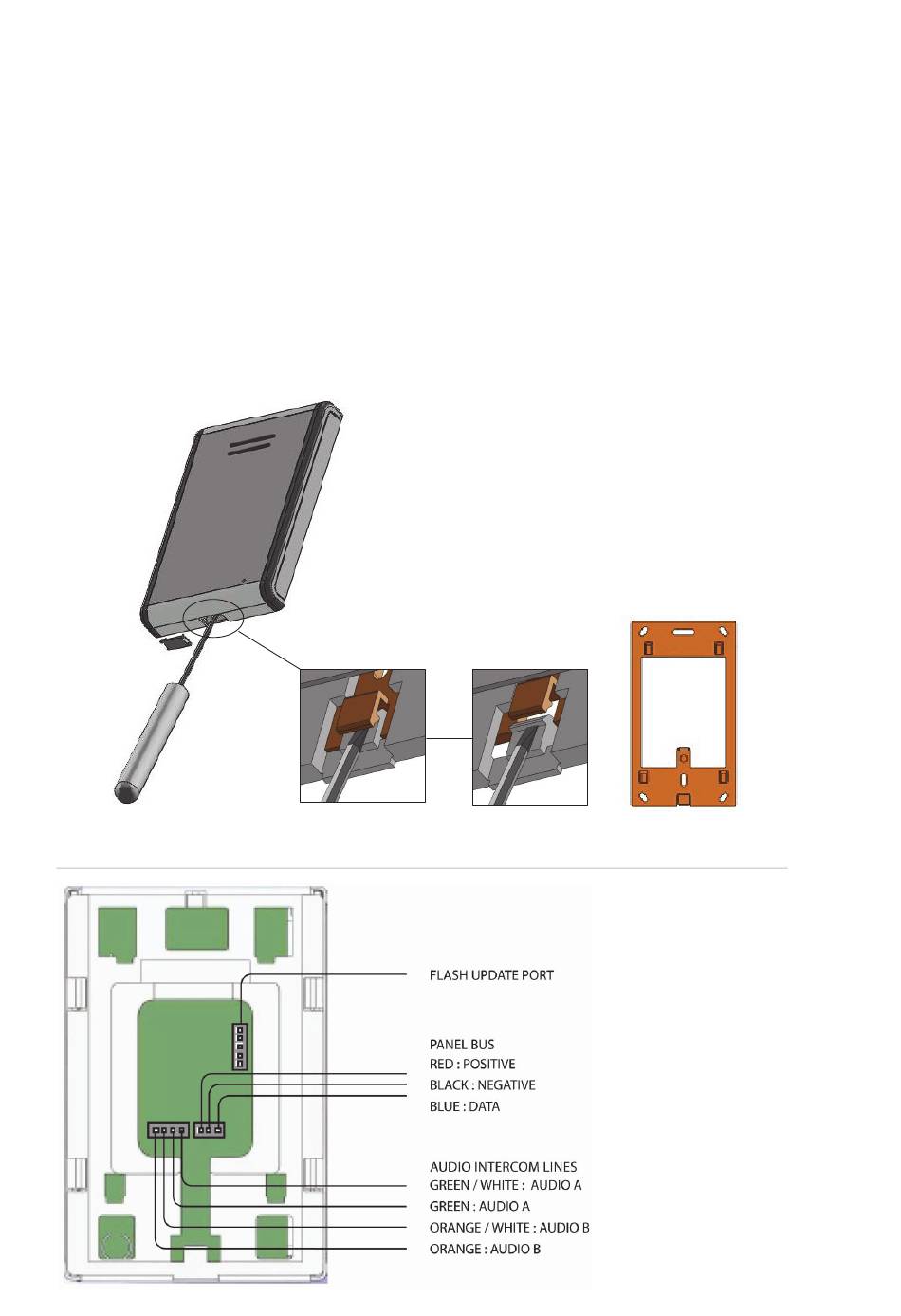

Figure 1: NX-181xx mounting
Figure 2: Rear view showing cable header pins
