The System Layout
PDS™ Control 4 and 8 Station
The System Layout
Below are examples of the Chore-Time Nipple Watering system layouts. These are to be used to show different
methods for installing the PDS™ system. Refer to Parts List Section, page 15 for item part numbers.

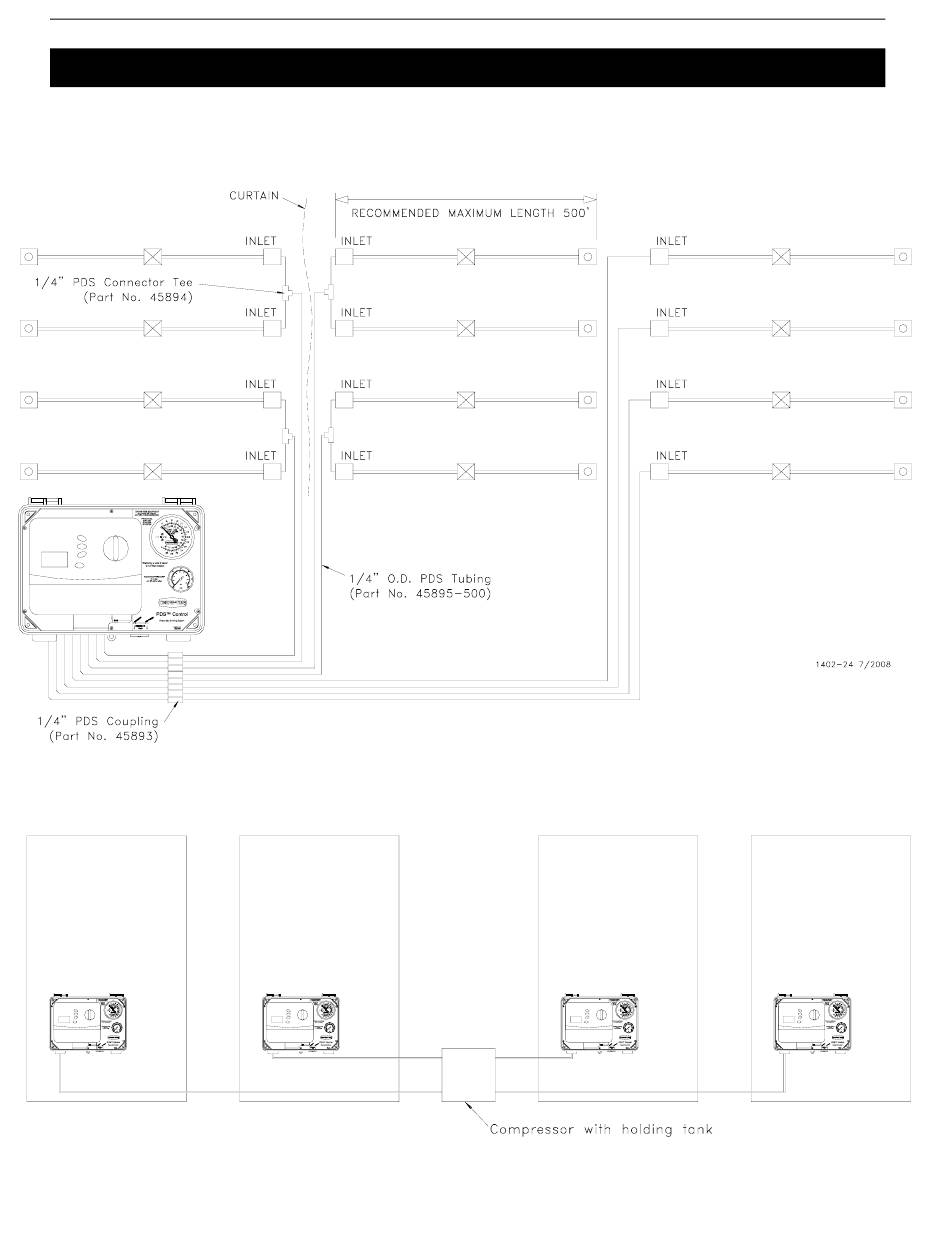

Broiler System Layout
Figure 1. Broiler Layout
Multiple House Layout
Figure 2. (4 House Layout)
Air can be run from a central location to supply multiple houses. Air lines can consist of Chore-Time tubing (Part
number 45895-500), which will supply a sufficient air supply, or PVC plumbing.
6
MW1402D
