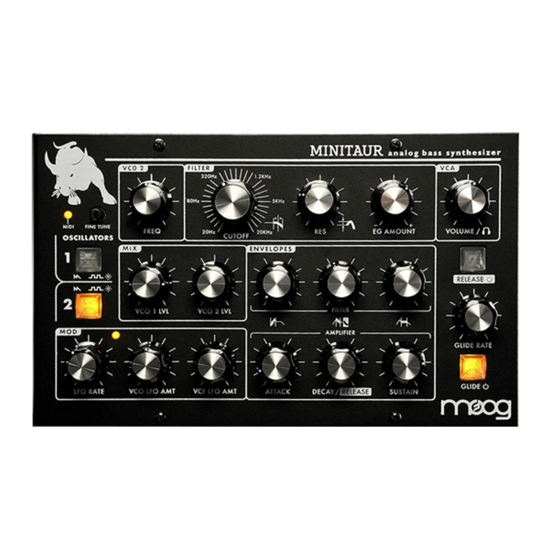

Moog MINITAUR v2.2 Quick Start Manual

MINITAUR v2.2
FREE EDITOR/LIBRARIAN (MAC & WINDOWS)
Access and automate every parameter on and under the hood of your Minitaur right from your DAW.
Get the free Editor/Librarian software when you register your Minitaur at Moogmusic.com/register
STORE AND CHANGE PRESETS
Up to 128 presets can be saved and loaded onto your Minitaur using the free Editor/Librarian
software. Minitaur also supports MIDI Program Change messages, allowing almost any MIDI
controller to change presets on your Minitaur.
NEXT PRESET:
GLIDE + OSCILLATOR 1 WAVE
SAVE TO A NEW LOCATION:
GLIDE + RELEASE
(LEDs begin flashing)
1.
MODULATION SOURCES
Select from 6 different modulation sources: Triangle, Square, Ramp, Saw, Sample & Hold and Filter
EG (MIDI CC 85)
HARD SYNC
VCO 2 Hard Sync allows a number of new sounds to be created with Minitaur (MIDI CC 80)
OSCILLATOR 2 MODULATION
Send modulation to Oscillator 2 only – ideal for use with Hard Sync (MIDI CC 112)
CV MAPPING
Your Minitaur's Pitch and Volume CV inputs can be re-mapped to control any parameter on your
Minitaur, while the Gate input can be re-mapped to alter the state of all on/off parameters like
Oscillator waveshape.
NOTE: All CV Mapping is configured in the free Minitaur Editor/Librarian software.
CV TO MIDI CONVERSION
Minitaur can convert multiple channels of Control Voltage to MIDI. This allows you to take CV
sources like a Moog Mother-32 and translate the voltage into MIDI for CV control over plug-in
effects, soft synths, or other MIDI gear.
WARNING: For optimal CV to MIDI conversion response, adjust the scale and range of the external
control voltage to stay within 0 to +5 Volts.Do not apply a negative control voltage, or a CV greater
than +5 Volts!
PREVIOUS PRESET:
GLIDE + OSCILLATOR 2 WAVE
SELECT A PRESET LOCATION:
GLIDE + OSCILLATOR 1 or 2
2.
SAVE CURRENT PRESET:
GLIDE + RELEASE
(Hold both for 1 second).
SAVE PRESET:
GLIDE + RELEASE
(Press RELEASE to cancel without saving)
3.
