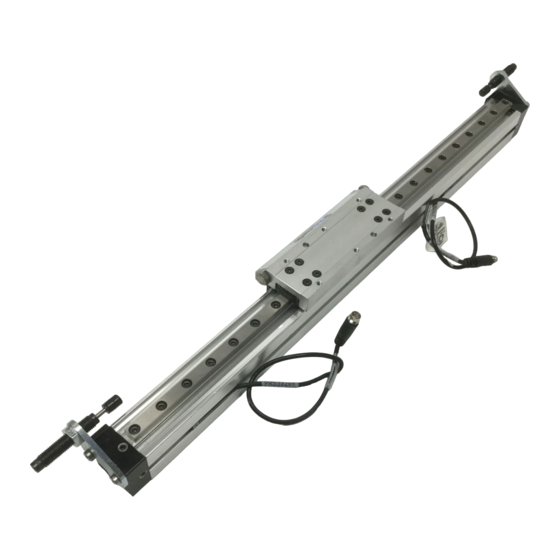

Tolomatic MXP16P Series Instructions

MXP16P Profiled Rail
Models: MXP16PGP MXP16PNP
Both Metric and Inch models
3
4
11
14
10
17
24
12 16 15 13
18
List of Parts
PART NO. or
ITEM CONFIG. CODE DESCRIPTION
8116-1512 Piston Bracket (Inch)
1
8116-1012 Piston Bracket (Metric)
2 8116-1005 Piston
1
3 6906-1024 U-Cup
4 1 6906-1022 Cushion Seal
5 1 8116-1006 End Cap
6 1 8116-1007 Band Ramp
7 1 8116-1059 Wiper
8 8116-1028 Bearing, Piston Bracket, Plastic
9 2 8125-1022 Low Head Cap Screw
8116-9001 Head Assy, Metric Mount, Inch Port
8116-9501 Head Assy, Inch Mount, Inch Port
10 2
8116-9007 Head Assy, Metric Mnt, Metric Port
8116-9507 Head Assy, Inch Mount, Metric Port
2
11 6906-1023 Cushion Spear
12 2 8116-1039 Clamp, Seal Band
13 2 8116-1032 Clamp, Dust Band
1,2
14 6906-1065 O-Ring
15 2 6906-1026 Needle Cushion Screw
16 2 0912-1101 O-Ring
5910-1008 Set Screw (Inch)
17 2
7906-1029 Set Screw (Metric)
18 2 8116-1071 Set Screw
Replacement Seal Band (8116-1017)
1
19 NSBMXP16P
Specify Stroke
Tolomatic • URL: http://www.tolomatic.com • Email: help@tolomatic.com • Fax: (763) 478-8080 • Toll Free: 1-800-328-2174
16mm (5/8 inch) Bore
34
33
28b
25
22
8
7
6
2
5
23
9
1
31
30
29
28a
26
PART NO. or
QTY. ITEM CONFIG. CODE DESCRIPTION
1 Replacement Dust Band (8116-1018)
1
20 NDBMXP16P
Specify Stroke
1
Replacement Magnet Band (8116-1019)
2
21 NMBMXP16P
Specify Stroke
2
22 8116-1008 Magnet
2
23 0601-1038 Socket Head Cap Screw
2
24 2 8316-1022 Head Screw
2
25 7906-1029 Set Screw
2
RTBMXP16P Replacement Tube (8116-1010) Specify
26
2
Stroke
4
Replacement Bearing Rail (Specify stroke)
28a 3,4
2
NPRMXP16P add DW for Dual Carrier
3,4
28b
2 add BB for optional Bearing Blocks
2 29 8116-1034 Adjustment Plate
2
30 4905-1005 Socket Head Cap Screw
2 8116-1515 Low Head Cap Screw (Inch)
31
2
8125-1022 Low Head Cap Screw (Metric)
2
32 Number is not used
2 8116-1521 Carrier (Inch)
33
2
8116-1021 Carrier (Metric)
2
34 8125-1022 Low Head Cap Screw
6
1
Parts included in Repair Kits. (RKMXP16PSK or SM_ _ _, indicate stroke length in inches or millimeters)
2 Parts included in Head Assemblies (10)
6
3
Linear Bearing Block Kit includes 2 Bearing Blocks (8116-1044) on a rail for installation.
4
MUST BE ORDERED AS A KIT.
4
Bearing Blocks and/or Bearing Rail purchased before Oct. 1, 2014 are NOT compatible with current
A/R
Bearing Blocks and Bearing Rails purchased after Oct. 1, 2014.

Parts Sheet

8100-4115_05_MXP1
21
19
20
QTY.
A/R
2 A/R
1
4
8
1
A/R
A/R
2
A/R
8
8
1
1
1
8
