Page 1: Table Of Contents
Table of Contents About BPI-D1 BPI-D1 hardware BPI-D1 hardware interface 1.2.1 BPI-D1 hardware spec 1.2.2 BPI-D1 GPIO Pin define 1.2.3 BPI-D1 schematic diagram 1.2.4 BPI-D1 Software BPI-D1 Use Method 1.3.1 How to record a video 1.3.1.1 How to connect to the AP 1.3.1.2 View Real-time Video 1.3.1.3 How to view files 1.3.1.4 How to set 1.3.1.5 WIFI relevant Information 1.3.1.6 Program the Firmware 1.3.2 BPI-D1 source code on github 1.3.3 BPI-D1 Power Supply AK3918 Specification All banana pi product BPI 4.0 customized Server... -
Page 2: About Bpi-D1

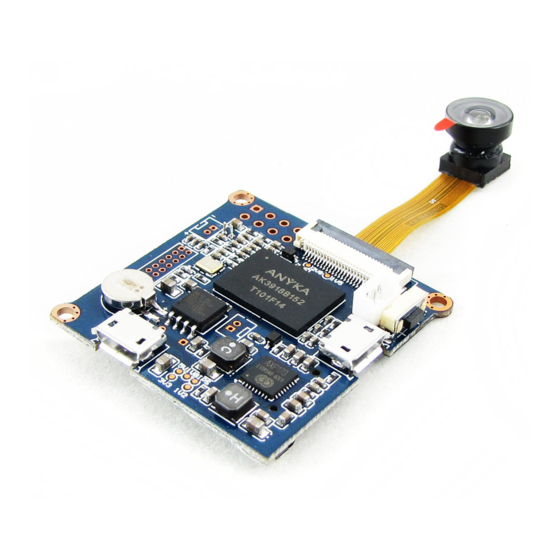

About BPI-D1 Banana pi BPI-D1 open source IP camera project. The BPI-D1 is the smallest open-source development board around, with a built-in HD mini camera. At 38mm (w) x38mm (l) and weighing in at 10g, it’s much smaller and lighter than any mini-cam or camera board out there. It allows you to create and customize your own mini-cam and can be a valuable part of any cool hardware you are working on. The BPI-D1 prides itself on providing high-resolution image quality: Both video and photos are captured at 1280x720p with a video capture rate of 30 fps. The BPI-D1 is designed specifically to give you all the multimedia tools you need in one small package.Simply connect to an external battery source (with your desired power capacity), and the BPI-D1 does the rest: there’s a HD mini-cam, audio sensor, microphone, CPU, GPIO, WiFi, and more - you name it, the BPI-D1 has it. forum: http://www.banana-pi.org forum: http://www.bananapi.com product: http://www.banana-pi.com... - Page 3 About BPI-D1...
-
Page 4: Bpi-D1 Hardware
BPI-D1 hardware First Chapter GitBook allows you to organize your book into chapters, each chapter is stored in a separate file like this one. -
Page 5: Bpi-D1 Hardware Interface
BPI-D1 hardware interface BPI-D1 hardware interface Front: Back:... - Page 6 BPI-D1 hardware interface...
-
Page 7: Bpi-D1 Hardware Spec
BPI-D1 hardware spec BPI-D1 hardware spec Hardware Specification: Product PCB 38x38mm Size 400MHz ARM926EJ 32Bits RISC Core 64MB DDR2 Flash 16MB SPI-FLASH Storage Micro SD Card Seat ,supportable for 8G,16G, 32G TF cards CMOS Image Sensor SoC30FPS@720P, Visible light with 940 nm two-way infrared lens filter, with CMOS infrared night vision function Lens M7*P0.35 EFL=3.0mm/F.NO=2.8/View Angle=60° It achieves H.264 hardware encoding at 1280x720p_30fps. 32G TF card can store 120 hours of Video video data Audio MP3/WMA/AAC USB WIFI (OPTION):WiFi module can be switch between the AP and the SLAVE mode, easy to WIFI configure the WiFi module.BPI-D1 support WPS mode RTC circuit, and supporting OSD Support Li-ion Charging with Built-in AXP173 power management chip Embedded electrets microphone Power Recording: 5V-200mA; WiFi On: 5V-350mA; continuously record 720P video or audio data for Consumption 24hour when a mobile power of 10000mAH is available. 1UART/2GPIO；2PWM/2GPIO；I2C；Audio Line IN；HP Audio Out L；HP Audio Out R；1SPI GPIO Interface Independent UART debugging interface USB programmatic interface/ OTG device (WiFi module/USB drive) DC IN Micro-USB single +5V power input Battery 3.7V Li-ion socket... -
Page 8: Bpi-D1 Gpio Pin Define
BPI-D1 GPIO Pin define BPI-D1 GPIO Pin define... -
Page 9: Bpi-D1 Schematic Diagram
BPI-D1 schematic diagram BPI-D1 schematic diagram google driver download link: https://drive.google.com/file/d/0B4PAo2nW2KfnWDdTLTdxS1RsaVE/view?usp=sharing File name :banana pi BPI-D1_SCH.pdf... -
Page 10: How To Record A Video
How to record a video How to record a video In a fully charged or connecting micro - power USB cable, BPI-D1 will automatically start the default set of video application. Start recording the video and sound and generate file storage to TF card. Recorded 30 minutes to automatically generate and save for a video file. Click the “function key " button, then manually stop recording the current task and generate a complete video file, start the next record files after 10 seconds. -
Page 11: How To Connect To The Ap
How to connect to the AP How to connect to the AP Connect to the specified AP The USB-WiFi module is connected to the USB interface of OTG. Press the BPI-D1 "primary key" button, green LED will keep long bright after flashing about 8 seconds; it means BPI-D1 work in AP mode. 1. Connect any mobile devices (e.g. Smartphone, tablet or computer) to the WiFi connection “SSID= XXX_D1_A39XXX” and enter the default password “12345678”. 2. In Internet Explorer, enter the FTP address “ftp://192.168.0.1”. (user name: admin, password: admin) 3. Click "Ethernet”, select one of the available WiFi. The SSID parameter will be displayed in the above, click password blank and enter the known password, then click the "save". After flashing on the screen, four parameters in the form disappeared that the connection is successful. 4. Click on the (39) Boot/WPS button, BPI-D1 switches to slave mode; you will see LED flashes from fast into slow, which has been connected to the specified WiFi-AP. -
Page 12: View Real-Time Video
View Real-time Video View Real-time Video View in range of LAN At present, viewing real-time video can be achieved in the LAN through VLC player or MX Player. If the two players installed on your PCs or mobile devices, it could be view via network stream. To do this: note: Just take the case of VLC player. 1. Install VLC player on your PCs or mobile devices. 2. Connect any mobile devices (e.g. Smartphone, tablet or computer) to the WiFi connection “SSID= XXX_D1_A39XXX” and enter the default password “12345678”. 3. Open VLC player and click “ ”and open network stream. 4. Enter the AP of BPI-D1“rtsp://192.168.0.1”, click “open” and view the real-time video. [Reminder]: Real-time video may be delay, which related to the network transmission. -
Page 13: How To View Files
How to view files How to view files 1. Remove the SD card from the board and insert it into the SD card reader of a computer. 2. Battery mode, using micro-USB data cable to connect the BPI-D1 and PC. PC client can access the contents of TF card through the data cable, while charging the lithium battery. [Reminder]: Micro-USB interface supports USB flash disk connected through USB female port of OTG cable, Support directly copy files from the TF card to the external USB drive. 3. Connect PC or mobile devices to the SSID access point named “XXX_D1_A39XXX”, and access files at the FTP address ftp://192.168.0.1 Support IE, Chrome, Opera, Safari or Firefox browser login FTP to view or download. If you need play the video you will need to install player support for H.264 or MJPEG decoding format. -
Page 14: How To Set
How to set How to set Record Parameters Settings When BPI-D1 power is ON, video recording will start automatically according to the default set. If you want to set the BPI- D1 video parameters, you can refer to the following steps: 1. 1.Switch on the WiFi and switch to the AP mode（The LED light will remain steady）. Connect any mobile devices (e.g. Smartphone, tablet or computer) to the WiFi, connection “SSID= “XXX_D1_A39XXX” and enter the FTP address “ftp://192.168.0.1”. [Reminder]: User Name: admin; Password: admin 2. Click the "Video Settings" or "Record Settings" can adjust the record parameters. After saving the changed settings，all setup are validated only after manually re-open after switching off the device. Video Settings "Video" related to the format of the final recorded and resolution, devices support the two coding formats which are H.264 and MJPEG; relevant parameters can be set manually according to the required. After setting，click "Save". Record Settings “Record “related to recording save time, the number of video files and the size of video files, devices support the two coding formats, setting Loop Recording Time and Timed Loop Recording; relevant parameters can be set manually according to the required. After setting，click "Save". Video Stream: Choose the two streams in the “Video” which are H.264 and MJPEG. Loop Recording Time: Finish a video and save a file according to setting recording time. Timed Loop Recording: Start recording according to Loop Recording Time setting after switch on the device，beyond the setting time automatically stop recording. - Page 15 How to set [Reminder]: Video resolution depends on choosing a different video stream, and the generated video file size will be different.
-
Page 16: Wifi Relevant Information
WIFI relevant Information Relevant Information WiFi LED at work BPI-D1 "function key" button, click open WiFi AP mode, and then click close. “Green LED “will flash for about 8 seconds: LED Status Description Light WiFi work in AP mode, you can search the AP SSID.( for example, XXX_D1_A39XXX ) Flash WiFi work in slave mode, it will automatically connect the AP that set the parameters before. WiFi ON/OFF Energy Consumption WiFi ON/OFF to save the power consumption, the two statuses generally as follows: 1. WiFi OFF, BPI-D1 is recording and saved to TF card, current 5V power is about 250mA. 2. WiFi ON, BPI-D1 is recording and saved to TF card, at the same time BPI-D1 connected to the network through WiFi， current 5V power is about 350mA. 3. It can be used to predict 500mah lithium batteries can maintain BPI-D1 work 1 to 2 hours. -
Page 17: Program The Firmware
Program the Firmware Program the Firmware Important Notes before You Start: 1. You must use the compatible version of the firmware programingsoftware with source codes. 2. The software works on Windows XP Service Pack 3 and newer versions. 3. The software file path is located at: /lamobo.dev/tool/burntool in the code directory 4. Before programming the firmware, please make sure to copy and paste the3compiled files “zImage,” “root.sqsh4,” and “root.jffs2” to the root directory. (Note: The complied files are saved at: /lamobo.dev/output) image download and forum: http://www.banana-pi.org How to Program the Firmware 1. Battery mode, press and hold the "primary key" 5 seconds off BPI-D1 power. Before the PC inserts BPI-D1 micro - USB programming cable, double-click firm programming tools icon, runs the burn tool. Holding down the "function key" and the micro - USB programming cable connecting to the PC, the module enters the programming mode. At this time BPI-D1 LED no instructions. If there is no lithium battery, you do not need to connect the micro USB power cable. 2. After the PC inserts BPI-D1 micro - USB programming cable, the firm programming tools will detect the launch of the application. Once connected, a yellow status bar will appear next to the device in the window, and the status will show “Ready” (please recheck and repeat the steps above if no response). Press the “Start” button on the top to start the firm programming automatically. 3. Burning completed, micro-USB data cable disconnected with PC. Status Descriptions The status, progress and elapsed time will appear in the programming window. [Successful] Once the status and progress bar turn green, the progress bar reaches 100%, and the status reads “Completed, “the firmware has been programmed successfully. - Page 18 Program the Firmware [Unsuccessful] When the status and progress bar turn red, the status area will display one of several error messages, indicating an unsuccessful programming attempt. If the operation is unsuccessful, please retry after adjusting the following settings: 1. Click Settings, select “Researcher” as the User Name, leave the Password blank, and then select “OK”. 2. 2.Choose “General” on the left-side menu and check the two boxes “force write to the Mac address” and “force write serial number,” and then select “OK.”...
- Page 19 Program the Firmware 3. Repeat steps 1-3 in the “How to Program the Firmware” and try again.
-
Page 20: Bpi-D1 Source Code On Github
BPI-D1 source code on github BPI-D1 source code on github Lamobo-D1 is same as banana pi BPI-D1 All newest source code have update on this github site. https://github.com/Lamobo/Lamobo-D1... -
Page 21: Bpi-D1 Power Supply
BPI-D1 Power Supply BPI-D1 Power Supply Battery mode: Built-in lithium battery power supply independently. External power supply mode: DC-micro-USB power cable at the same time for charging the BPI-D1 built-in lithium battery. -
Page 22: Ak3918 Specification
AK3918 Specification AK3918 Specification BPI-D1 use AK3918 chip on board, more about AK3918 Specification,please download this document. Google driver download link: https://drive.google.com/file/d/0B4PAo2nW2KfnbGJpa19FWWpwWDQ/view?usp=sharing baidu download link: http://pan.baidu.com/s/1pJUgCo7... -
Page 23: All Banana Pi Product
All banana pi product All banana pi product banana pi BPI-M1 allwinner A20 dual core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m1/content/en/ banana pi BPI-M1+(BPI-M1+ plus) allwinner A20 dual core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m1-bpi-m1-plus-/content/en/ banana pi BPI-M2 allwinner A31s quad core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2/content/en/ banana pi BPI-M2+（BPI-M2 Plus）allwinner H3 quad cord single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2-/content/en/ banana pi BPI-M2 Ultra allwinner R40 quad core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2-ultra/content/ Banana pi BPI-M3 allwinner A83T (R58 H8) octa-core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m3/content/en/ banana pi BPI-M64 allwinner A64 64 bit single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m64/content/en/ banana pi BPI-R1 allwinner A20 dual core smart router board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-r1/content/en/ banana pi BPI-D1 open source IP camera board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-d1/content/en/ banana pi BPI-G1 open source IoT development board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-g1/content/en/ banana pi BPI Accessories gitbook online datasheet:https://bananapi.gitbooks.io/bpi-accessories/content/en/ BPI Open debugger burn development tool board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-open-debugger-burn-board/content/en/... -
Page 24: Bpi 4.0 Customized Server
BPI 4.0 customized Server BPI 4.0 customized Server Having been doing R&D in embeded systems for more than 12 years. Our experienced teams are able to help you to carry out your dream. Whether you want to customize banana pi or want to design a computer from scratch, we got you covered. Also, our modern ISO factory spans over 10,000 square meters can help you mass manufacture products to hit the market Our factory:Sinovoip In order to meet the companys development needs, and further production capacity and product quality. Sources Communication shareholders decided to invest in new plant to build their own, the new factory site is located in manholes and covers an area of more than 10000 square meters,equipped with full range of production equipment and high quality technical management personnel . We have complete SMT production lines, plug-ins production line, assembly line, production line testing. your Idea, we will help you optimize and design. your Design, we will help you bring it to live. your Product, we will help you mass produce it. Customize Pi If you want to tailor your Banana pi to your specific use or to minimize the cost for mass production purpose, you are coming the right place. We provide the customization service of banana pi such as remove/add headers or connectors,change component layout,add/remove components,change interfaces etc. Start from scratch (ODM) An idea flashes through your mind in your dreams or a solution bearing in your mind for a long time, which you think would turn out to be great gadget to hit the market, but you are worrying about how to start and realize it without R&D and manufacturing, now that's no longer a trouble to you. Taking advantage of our expertise,we provide full ODM service for you. We let you have your sample products from scratch within 45 days. Don't wait,come to realize your dreams. - Page 25 BPI 4.0 customized Server Have a prototype (OEM) You are an expert, you designed a wonderful device that most people would want to have it, you knew it quite well that your success is just around the corner. The only last step is to produce it,but without manufactruing capability..., no problem, let us carry you through. Our 13 years of SCM experience and mass manufacturing facilities enable you free from quality issue,delivery...
