Summary of Contents for Siemens SIMATIC USB-Prommer

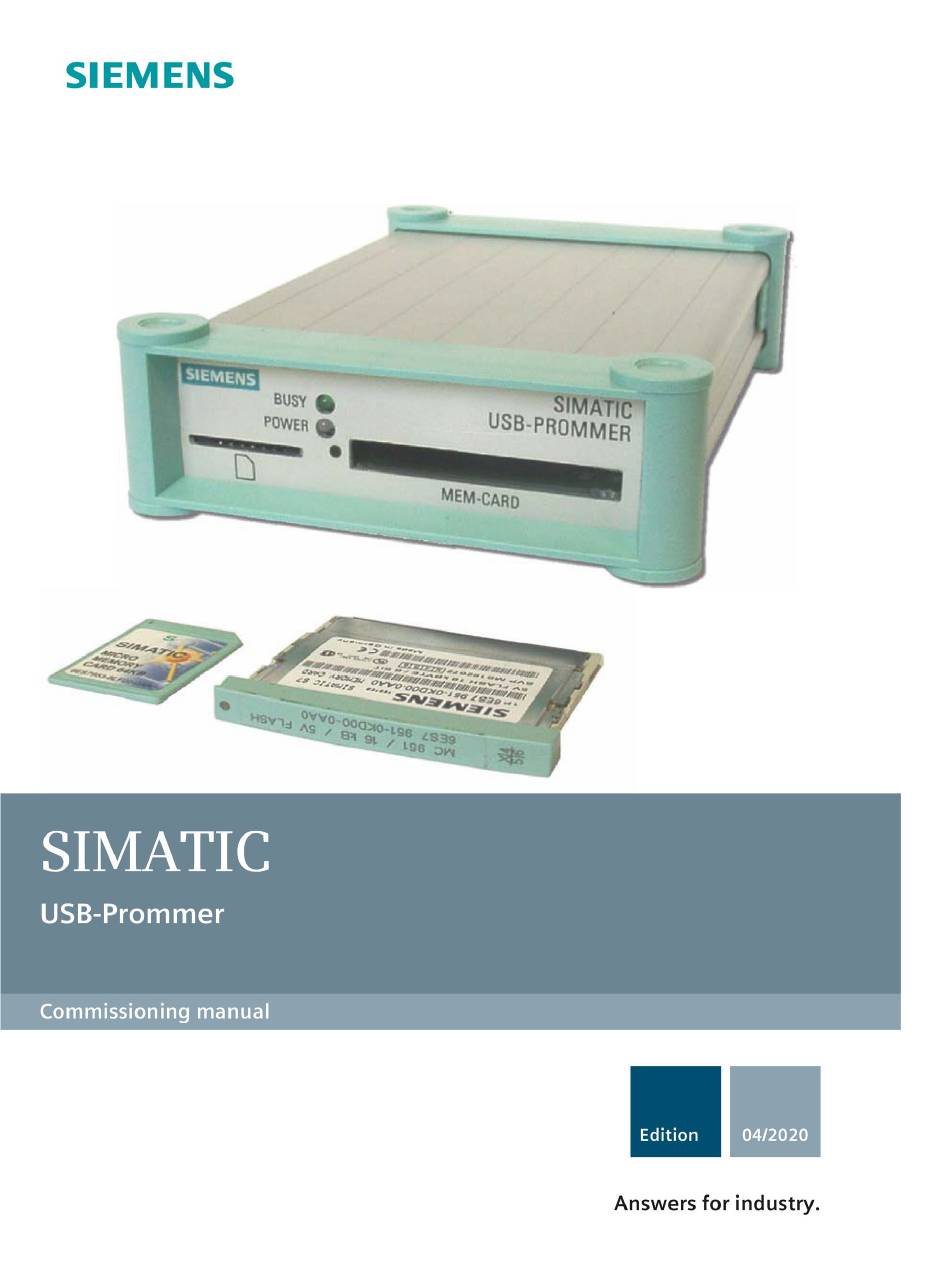

- Page 1 USB-Prommer...
- Page 2 Usage and Function Hardware Installation SIMATIC Software Installation Connecting to the PC USB-Prommer Working with the SIMATIC USB-Prommer Firmware Update Commissioning Manual Fault Diagnostics Specifications Additional Support and Sales Information Certificates, Guidelines and Declarations 04/2020 A5E50041544-AA...
- Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 4: Table Of Contents
Usage and Function ........................... 4 Hardware Installation ..........................5 Software Installation ..........................8 Connecting to the PC ..........................9 Working with the SIMATIC USB-Prommer ....................10 Firmware Update ............................. 11 Fault Diagnostics ............................. 12 Specifications ............................13 Additional Support and Sales Information ....................15 Certificates, Guidelines and Declarations .................... -
Page 5: Usage And Function
Micro Memory Cards. For editing SIMATIC S5 EPROM modules, the SIMATIC S5 programming adapter must be plugged in. The adapter is included in the product package. The SIMATIC USB-Prommer is compatible with USB V1.1 and meets the specifications for a "high-powered" USB device. -
Page 6: Hardware Installation
Hardware Installation Rear of the device On the device rear, you will find: ● The power supply connector for connection of the plug-in power supply ● The USB port type B for connection to the PC Front of the device On the device front, you will find: ●... - Page 7 Only USB cable is plugged in (power supply from the USB port). Flashes when a hardware fault has occurred. The Power LED will not light up in green until the SIMATIC USB-Prommer has been connected to a switched-on PC with the USB cable and the plug-in power supply is plugged in.
- Page 8 Hardware Installation WARNING Plug-in power supply When operating the SIMATIC USB-Prommer with an external power supply, you may only use the supplied plug-in power supply. CAUTION Plug-in power supply A power source with limited power is required for the operation of the SIMATIC USB- Prommer (USA/Canada: NEC Class 2).
-
Page 9: Software Installation
3. Start the setup program with a double-click on the "setup.exe" file. The setup program will guide you through the entire installation. Observe the notes regarding the installation and use of the SIMATIC USB-Prommer software in the Readme file that is located in the root directory of the CD. -
Page 10: Connecting To The Pc
1. Insert the supplied USB cable into a USB port on your PC. 2. Insert the other end of the USB cable into the USB port of the SIMATIC USB-Prommer. 3. During initial operation of the SIMATIC USB-Prommer, you must set the programming interface to "External prommer"... -
Page 11: Working With The Simatic Usb-Prommer
Working with the SIMATIC USB-Prommer Requirement: The SIMATIC USB-Prommer is connected to your PC as described above. 1. Insert the desired storage medium: – Micro Memory Cards into the Micro Memory Card interface – SIMATIC S5/S7 Memory Cards into the MEM-CARD interface –... -
Page 12: Firmware Update
2. Download the self-extracting exe file of the offered firmware and the firmware tool to your 3. Unzip the files to a local drive and update the firmware on your SIMATIC USB-Prommer by following the instructions of the firmware update tool. -
Page 13: Fault Diagnostics
Plug in USB cable • • PC is switched off Switch on the PC • • PC and SIMATIC USB-Prommer are in pow- Permissible operating mode • • er-saving mode (Hibernate mode). SIMATIC USB-Prommer is not recognized by • the PC. -
Page 14: Specifications
12 V DC, 1.5 A Primary adapter EURO EURO connector, according to VDE 0620, part 101 or IEC 83/C5 Primary adapter USA USA connector, according to ANSI C73.10 or IEC 8/AI-15 SIMATIC USB-Prommer Order number 6ES7792-0AA00-0XA0 Dimensions Approx. 172 x 121 x 40 mm Weight Approx. - Page 15 Specifications Climatic conditions Temperature tested according to DIN IEC0 60068-2-2, DIN IEC 60068–2–1, Operation +5 °C to +40 °C, temperature change max. 10 K/h • • Storage/transportation -20 °C to +60 °C, temperature change max. 20 K/h • • Relative humidity tested according to DIN IEC0 60068-2-30, DIN IEC 60068–2–14 Operation 5% to 80% at 25 °C (no condensation)
-
Page 16: Additional Support And Sales Information
Additional Support and Sales Information Additional support Your local Siemens representative will be pleased to provide answers to any open issue relating to the use of products described in this manual. Find your contact partner at: http://www.siemens.com/automation/partner (http://www.siemens.com/automation/partner) A guide to the technical documentation of the various SIMATIC products and systems is available at: http://www.siemens.com/simatic-tech-docu-portal... -
Page 17: Certificates, Guidelines And Declarations
Declaration of conformity The EU declarations of conformity and the corresponding documentation are made available to authorities in accordance with the EU directives stated above by: Siemens AG Automation and Drives A&D AS RD ST Type Test PO Box 1963 D-92209 Amberg Tel.: +49 9621 80 3283... - Page 18 Certificates, Guidelines and Declarations Observing installation guidelines The installation guidelines and safety instructions given in this description have to be noted during commissioning and operation. Connecting I/Os Noise immunity requirements according to EN 61000–6–2 are met if the connected PC is suitable for industrial applications.
- Page 19 Certificates, Guidelines and Declarations Canada Canadian Notice This Class B digital apparatus complies with Canadian ICES-003. Avis Canadien Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. RCM AUSTRALIA / NEW ZEALAND This product meets the requirements of the standard EN 61000-6-3 Generic standards - Emission standard for residential, commercial and light-industrial environments.
