Hardware Installation

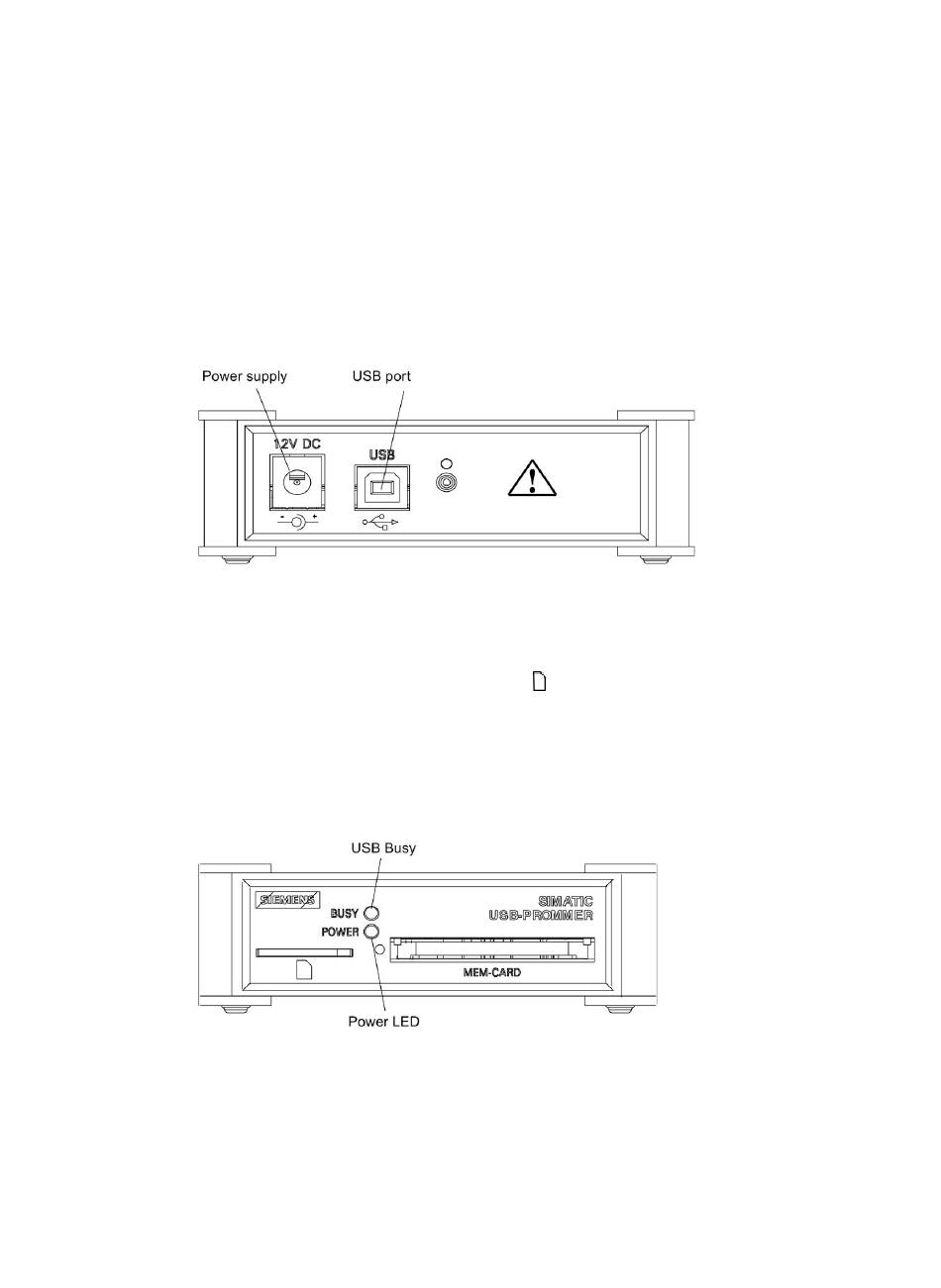

Rear of the device
On the device rear, you will find:
● The power supply connector for connection of the plug-in power supply
● The USB port type B for connection to the PC
Front of the device
On the device front, you will find:
● SIMATIC Micro Memory Card interface:
● SIMATIC S5/S7 Memory Card interface: MEM-CARD
● Two operating state displays
– BUSY
– POWER
USB-Prommer
Commissioning Manual, 04/2020, A5E50041544-AA
