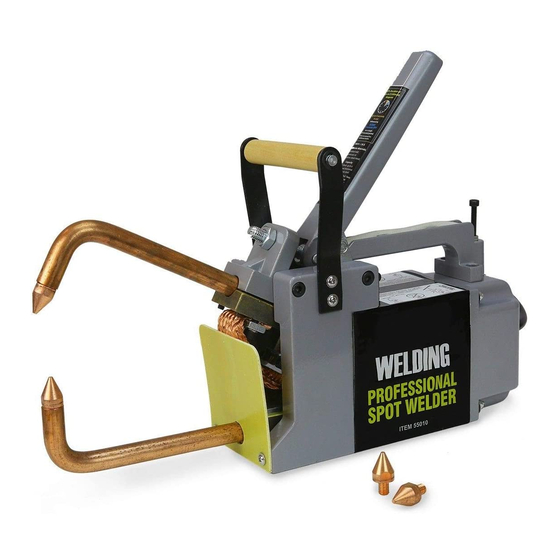

240V 16 AMP ELECTRIC SPOT WELDER
ITEM: 55010 & 55009
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628-4900 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Related Manuals for Stark 55010
Summary of Contents for Stark 55010
- Page 1 240V 16 AMP ELECTRIC SPOT WELDER ITEM: 55010 & 55009 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 3 IMPORTANT SAFETY INFORMATION Exposure to welding or cutting exhaust fumes can increase the risk of developing certain cancers, such as cancer of the larynx and lung cancer. Also, some diseases that may be linked to exposure to welding or cutting exhaust fumes are: • Early onset of Parkinson’s Disease • Heart disease • Ulcers •...
- Page 4 IMPORTANT SAFETY INFORMATION Clear away or protect flammable objects. Remove or make safe all combustible materials for a radius of 35 feet (10 meters) around the work area. Use a fire resistant material to cover or block all open doorways, windows, cracks, and other openings. Keep ABC-type fire extinguisher near work area and know how to use it.
-
Page 5: Specifications
GENERAL INFORMATION EXTENSION CORDS 1. If an extension cord is used, it must have the following wire size: up to 30 feet, use 10 AWG size wire; 30 to 50 feet, use 8 AWG wire; Over 50 feet, use 6 AWG wire. 2. - Page 6 COMPONENTS OPERATING HANDLE WOODEN HANDLE UPPER TONG FIXED HANDLE SPLATTER GUARD ELECTRODE TIPS LOWER TONG FRONT JAM NUT POWER SWITCH...
- Page 7 ELECTRODES 1. Electrode Tips (24) deform during use. For optimal weld quality, inspect Electrode Tips before use and clean, dress (resurface), or replace as needed to maintain a proper contact surface. 2. Use a file or tip dresser tool (both not included) to dress Electrode Tips and restore the spot diameter and face angle to a condition approximately the same as a new tip.
-
Page 8: Operation
OPERATION ADJUSTING TONG AND LEVER PRESSURE 1. The amount of pressure applied by the Tongs is adjustable, and should be checked and/or set before operation. Correct Tong pressure is necessary to create a proper weld and to prevent damage to the Electrode Tips. 2. - Page 9 OPERATION TO PREVENT SERIOUS INJURY AND ELECTRIC SHOCK: Never touch the Upper and Lower Tongs when welding a work piece. Allow the Electrode Tips and the work piece to cool before handling. 1. Ensure that materials to be welded are free from scale, oxides, paint, grease, and oil. 2.
-
Page 10: Troubleshooting
TROUBLESHOOTING... - Page 11 OPERATION PARTS LIST PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
