Installation Guide | VLT® PROFINET MCA 120
Ethernet Port 2
Option A
134B6779
B:08:XX:XX:XX
Host Name
8 7 6 5 4 3 2 1
ON
OFF

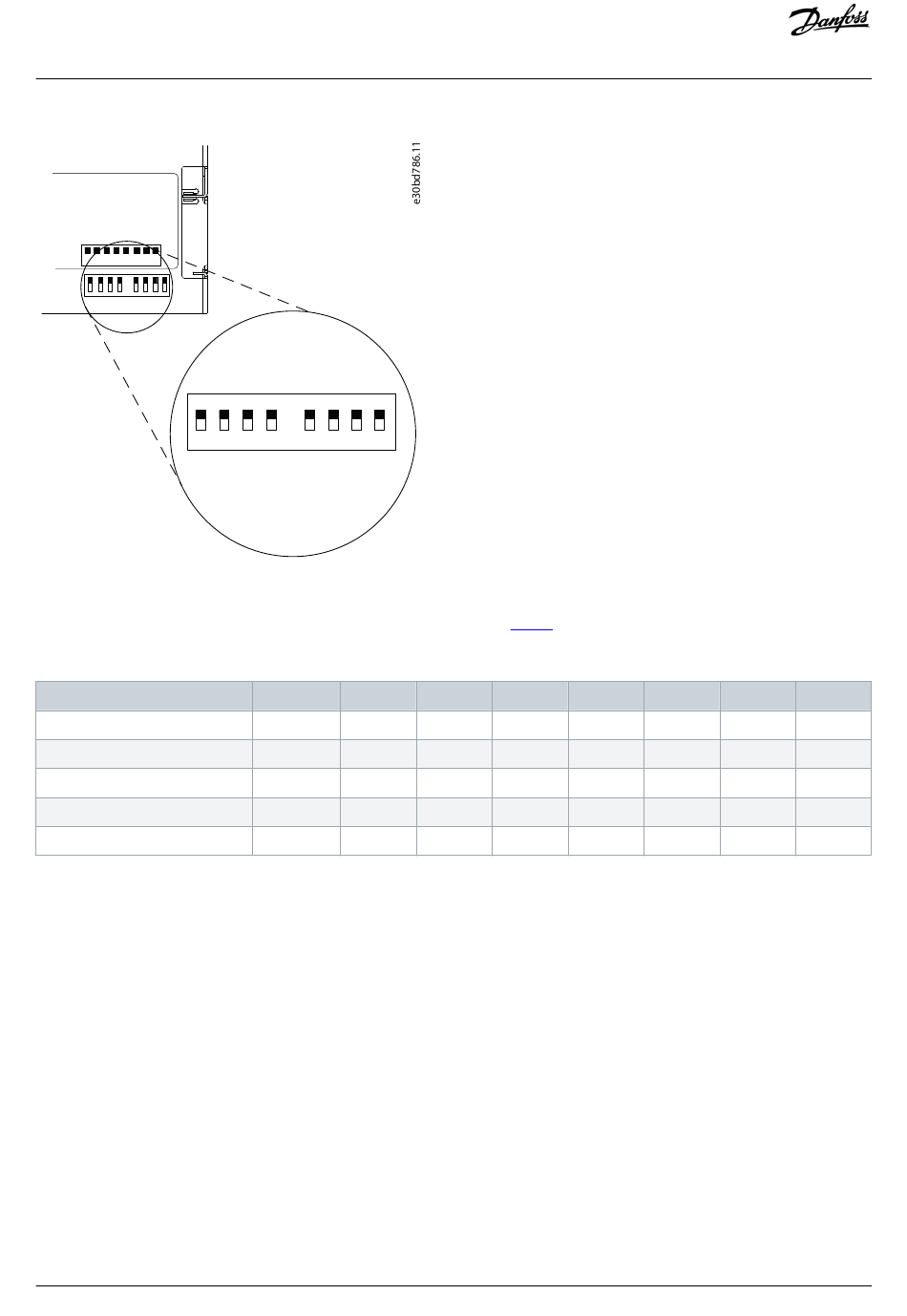

Illustration 2: Address Switches
Use the address switches to set the 253 different station names according to
Table 5: Host Names Setting
Switch
12-08 Host Name
005
035
082
212
The station name change comes into effect at the next power-up. Read the station name in 12-08 Host Name.
6 | Danfoss A/S © 2019.03
8 7 6
+128 +64 +32
OFF OFF OFF
OFF OFF ON
OFF ON OFF
ON ON OFF
table 5.
5 4 3
+16 +8 +4
OFF OFF ON
OFF OFF OFF
ON OFF OFF
ON OFF ON
AN274237376992en-000101 / 130R0856
Installation
2 1
+2 +1
OFF ON
ON ON
ON OFF
OFF OFF
