User Manual OPC UA Server / BACnet Slave
Document code: MN67B32_ENG
Revision 1.000
Page 25 of 28
Industrial Electronic Devices
MECHANICAL DIMENSIONS:

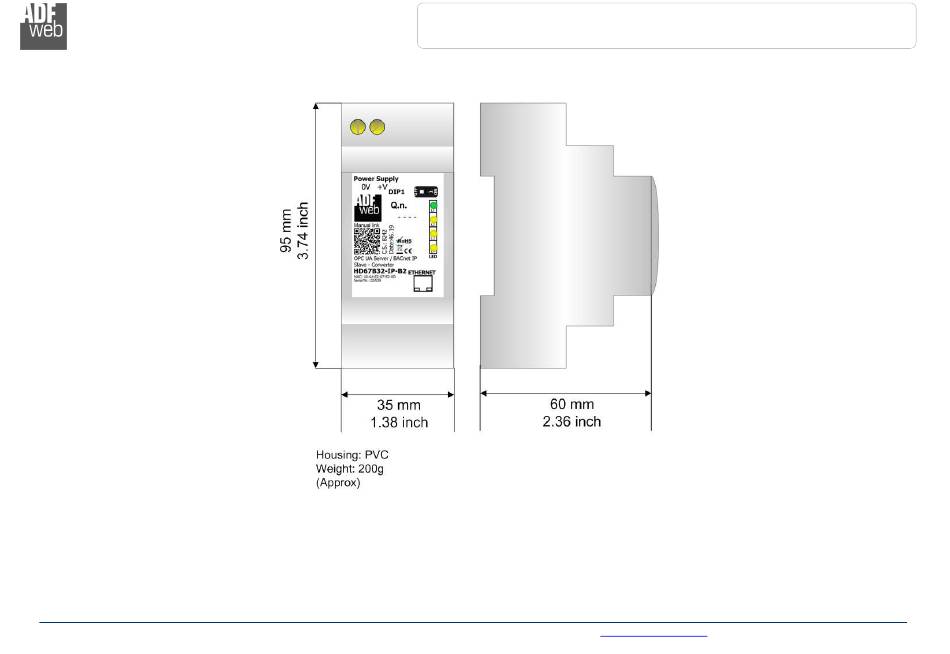

Figure 9: Mechanical dimensions scheme for HD67B32-xxx-B2
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
