OPC UA S :
ERVER
The means of the fields for "OPC UA Server" are:
In the field "IP Address" the IP address for OPC UA side of the converter is
defined;
In the field "SubNet
converter is defined;
In the field "Gateway" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature
can be enabled or disabled pressing the Check Box field;
In the field "Port" the port of OPC UA Server is defined.
BAC S ( BAC /IP):
NET LAVE FOR NET
This section is used to define the main parameters of BACnet/IP line. The means of
the fields are:
the fields "IP ADDRESS" the IP address of BACnet/IP side of the converter is
defined;
In the fields "SUBNET
converter is defined;
In the fields "GATEWAY" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but is possible to insert
any value;
In the field "BACnet Device
converter is defined;
In the field "Device Identifier" the ID of BACnet/IP side of the converter is defined;
If the field "BACnet description up to 32
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for OPC UA side of the
Mask" the SubNet Mask of BACnet/IP side of the
Name" the name of BACnet/IP side of the
chars" is checked, the description of the BACnet objects can be up to 32 chars.
User Manual OPC UA Server / BACnet Slave
Document code: MN67B32_ENG Revision 1.000

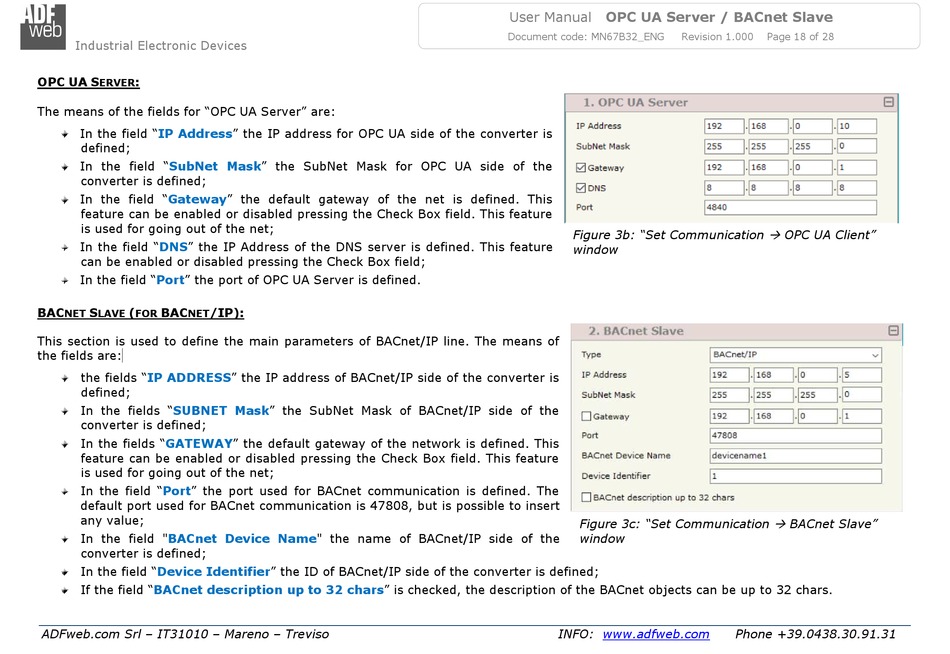

Figure 3b: "Set Communication
