# Feature
17 Ethernet RJ-45 Connector
18 RS-232 Terminal Block
Connector
19 12V DC
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Mount VP-427UHD

Install VP-427UHD using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
www.kramerav.com/downloads/VP-427UHD
(see
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/VP-427UHD
(see

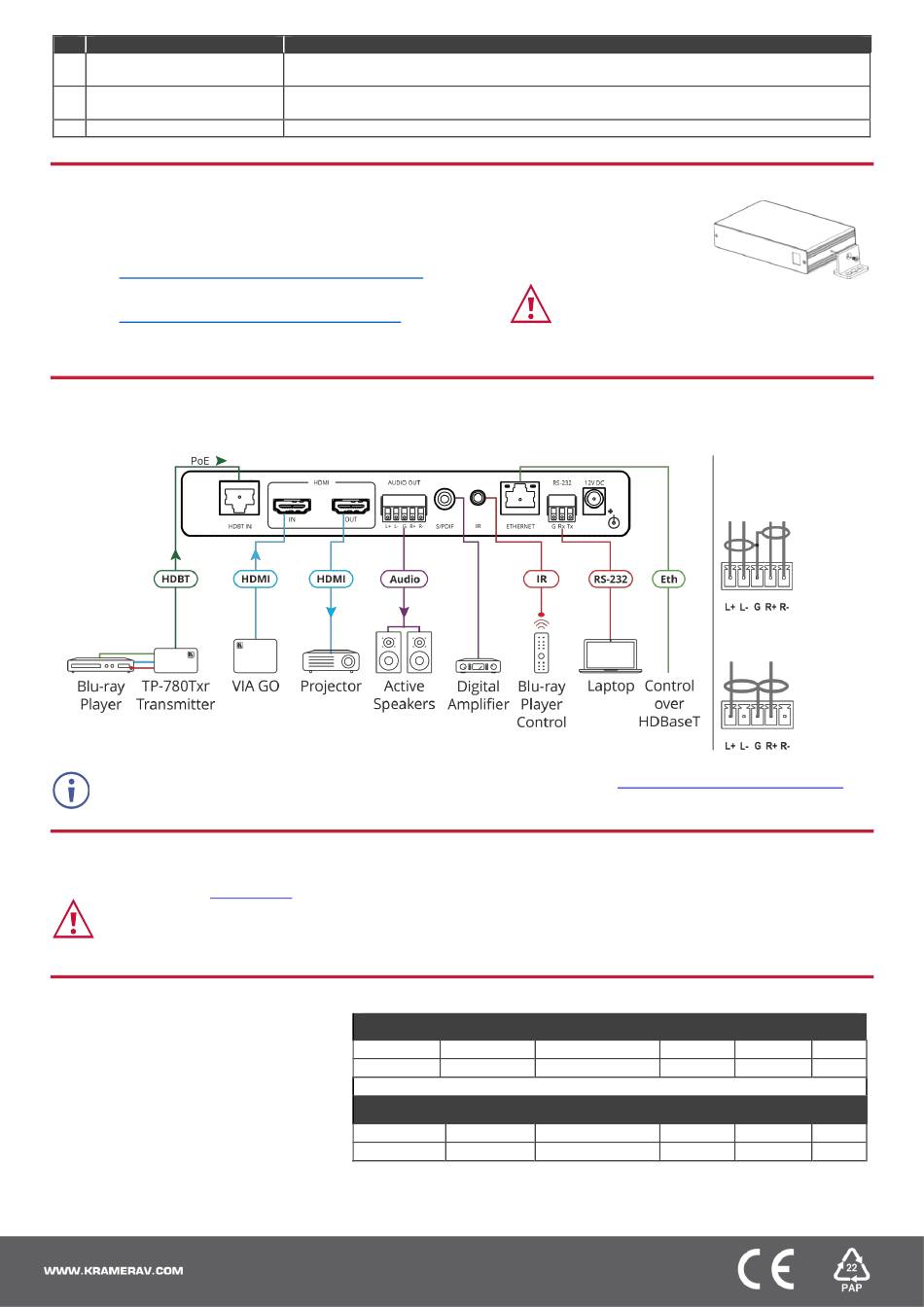

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-427UHD. For best results, we recommend that
you always use Kramer high-performance cables to connect AV equipment to the VP-427UHD.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VP-427UHD.
Using third-party cables may cause damage!

Step 5: Connect power

Connect the power cord to VP-427UHD
Safety Instructions (See www.kramerav.com
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the LPS power supply/cord supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate VP-427UHD

Operate the VP-427UHD:
•
Toggle the HDBT/HDMI front panel
button to select the input.
•
Control device via OSD menu or remotely
by RS-232 serial commands or Ethernet
transmitted by a touch screen system,
PC, or other serial controller.
•
Control remote devices on the
transmitter via RS-232, IR or Ethernet
signal extension.
Function
Connect via a LAN to a PC to control the
HDBT transmitter via the HDBT IN port.
Connects to a controller to control the
VP-427UHD and the RS-232 port of the connected HDBT transmitter.
+12V DC connector for powering the unit.
).
).
and plug it into the mains electricity.
for updated safety information)
RS-232 Control / Protocol 3000?
Baud Rate: 115,200
Data Bits: 8
Example: (get device model): #MODEL?<CR>
Default Ethernet Parameters
IP Address: 192.168.1.39
Subnet mask: 255.255.0.0
VP-427UHD and/or extend Ethernet signals to the
VP-427UHD or to extend RS-232 signals between the
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
Parity: None
Command Format: ASCII
UDP Port #: 50000
TCP Port #: 5000
Connect AUDIO OUT
To a balanced stereo
audio acceptor:
To an unbalanced
stereo audio acceptor:
Stop Bits: 1
Gateway: 0.0.0.0.
