Scan for full manual
Step 1: Check what's in the box

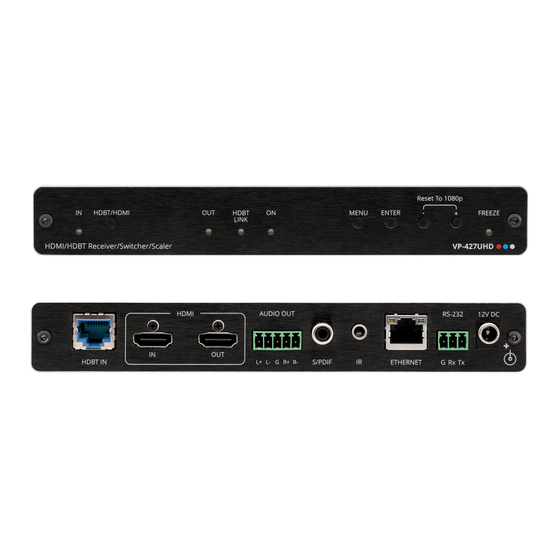

VP-427UHD HDMI/HDBT Receiver/Switcher/Scaler
1 Power adapter and cord

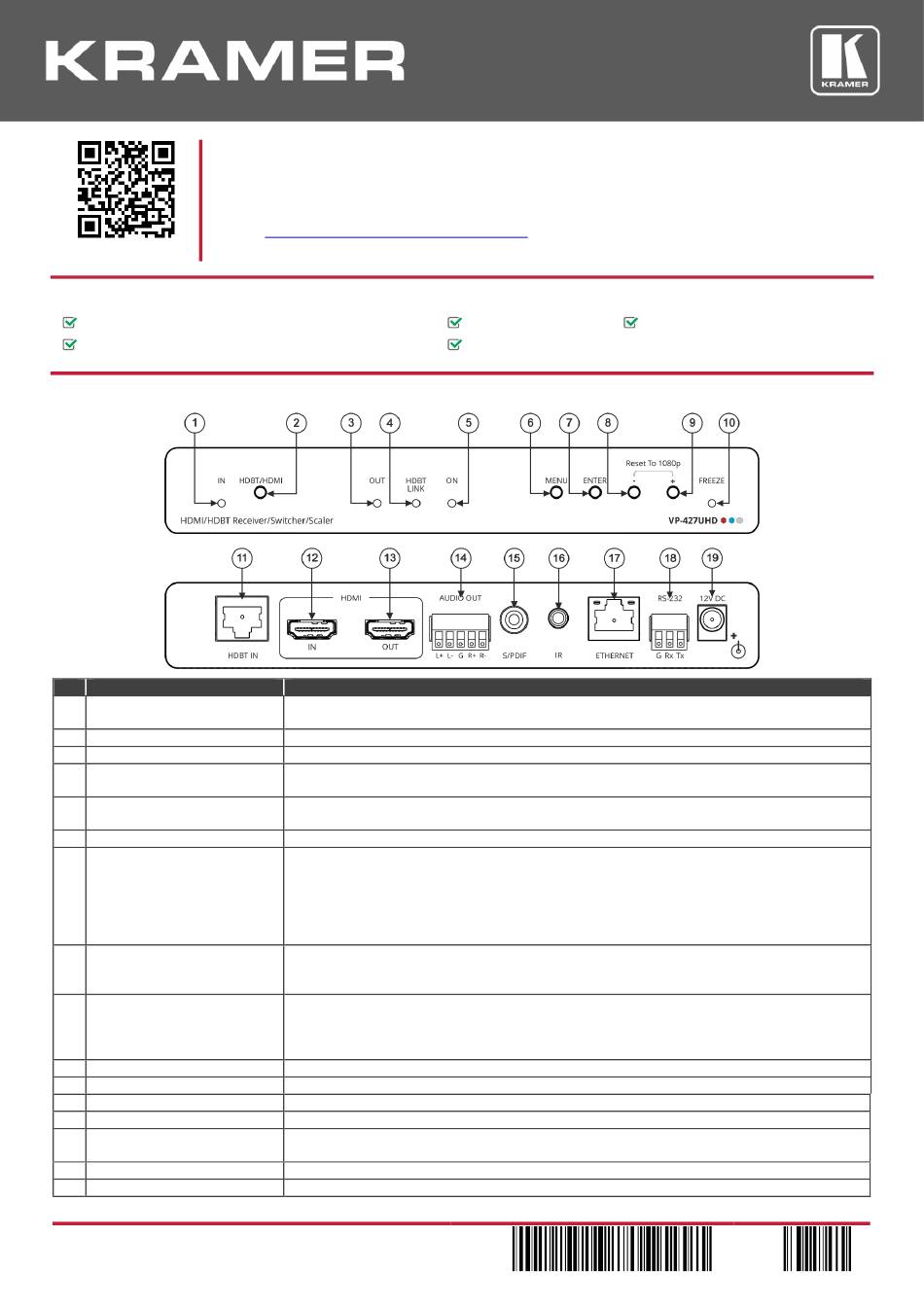

Step 2: Get to know your VP-427UHD
#
Feature
1
IN LED
2
HDBT/HDMI Button
3
HDMI™ OUT Status LED
4
HDBT LINK status LED
5
ON LED
6
MENU Button
7
ENTER Button
– Button
8
9
+ (also Freeze) Button
10
FREEZE LED
11
HDBT IN RJ-45 Connector
12
HDMI IN Connector
13
HDMI OUT Connector
14
AUDIO OUT 5-pin Terminal
Block Connector
15
S/PDIF digital audio output
16
IR 3.5mm Mini Jack
VP-427UHD Quick Start
VP-427UHD Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VP-427UHD
upgrades are available.
Function
Lights green when the HDMI™ input is selected, blue when HDBT is selected and flashes if
no input signal is detected.
Press to select the remote HDBT or the local HDMI source.
Lights green when an HDMI acceptor is connected.
Lights green when an HDBT link between a transmitter and the receiver is successfully
established and is active.
Lights green when the unit is powered from the local 12V DC source and lights blue when
receiving PoE via HDBT.
Press to enter the OSD menu. When in OSD, press to exit one level up.
When not in OSD, press ENTER to view the input status on the display (the selected input,
resolution and frame rate, HDCP state and aspect ratio).
When in OSD, press to select and carry out a menu item or to accept a parameter value.
Press and hold together with the – or + to increase the speed of parameter-decrement or
increment, respectively.
Press and hold for about 3 seconds to reset a menu parameter to its default values.
Press and hold together with the + button to reset the output resolution to 1080p (default).
In OSD, press to move back through the menu list or to decrement a parameter value (or
press together with ENTER to speed up parameter decrement).
Press and hold together with the – button to reset the output resolution to 1080p (default).
When not in OSD: press to freeze the image;
In OSD, press to move forward through the sub-menu list or to increment the parameter
value (or press together with ENTER to speed up parameter increment).
Lights green when freezing the image.
Connects to an HDBaseT transmitter.
Connect to an HDMI source.
Connects to an HDMI acceptor.
Connect to a balanced or unbalanced stereo audio acceptor.
Connect to a digital audio acceptor.
Connect to an IR Sensor (in) or Emitter (out) to control a remote device.
VP-427UHD
for the first time.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 1 5 6 QS
1 Quick start guide
Rev: 5
