6'-0" (1,83 m)
MINIMUM
*
Minimum distance between
Window Sprinklers is 6'-0"
(1,83 m) unless separated
by a baf e or mullion of
suf cient depth to act as a
baf e.

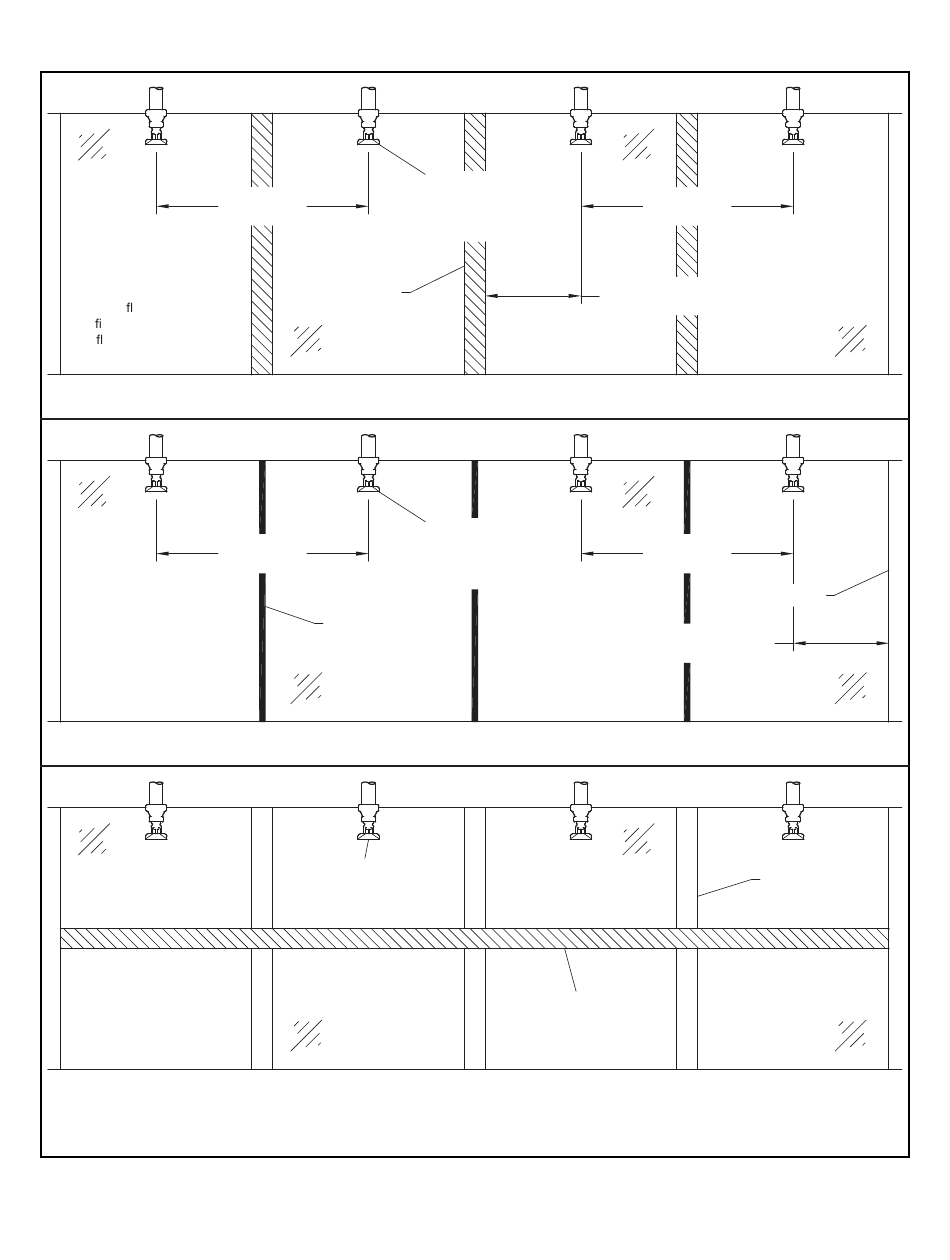

FIGURE 3B-1 - MULTIPLE WINDOWS SEPARATED BY MULLIONS
6'-0" (1,83 m)
MINIMUM
Window Sprinklers are NOT
required to be located with
respect to horizontal or
vertical butt joints.
FIGURE 3B-2 - MULTIPLE WINDOWS SEPARATED BY BUTT JOINTS
Window Sprinklers are NOT
listed to protect windows
when intermediate horizontal
mullions are present.
HORIZONTAL
OR VERTICAL
*
MULLION
HORIZONTAL
OR VERTICAL
BUTT JOINT
HORIZONTAL OR
VERTICAL MODEL
WS SPRINKLER
FIGURE 3B-3 - WINDOWS WITH HORIZONTAL MULLIONS
FIGURE 3B (B-1 TO B-3)
WINDOW MULLIONS AND BUTT JOINTS
MODEL WS
SPRINKLER
4'-0" (1,22 m) MAXIMUM
0'-4" (101,6 mm) MINIMUM
MODEL WS
SPRINKLER
4'-0" (1,22 m) MAXIMUM
0'-4" (101,6 mm) MINIMUM
INTERMEDIATE
MULLION
Page 5 of 8
8'-0" (2,44 m)
MAXIMUM
8'-0" (2,44 m)
MAXIMUM
MULLION
MULLION
TFP620
