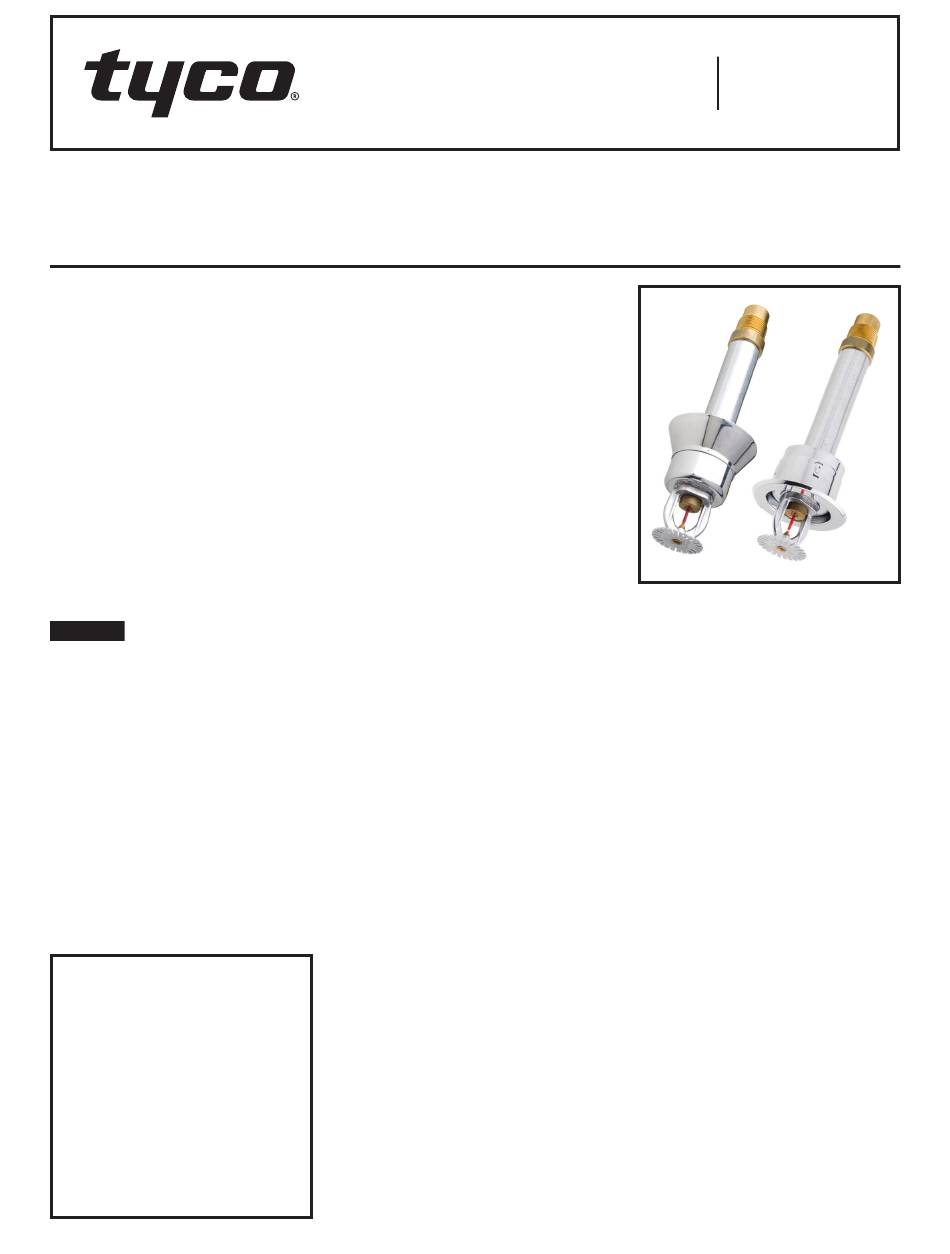

Series DS-2 Dry-Type Sprinklers

11.2K Pendent

Extended Coverage, Light and Ordinary Hazard

General

Description

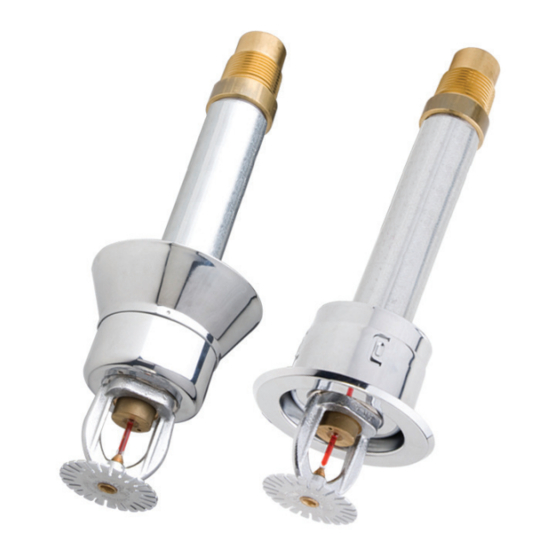

TYCO Series DS-2 Dry-Type Sprinklers,

11.2K Pendent, Extended Coverage,

Light and Ordinary Hazard (ECLH/

ECOH) are decorative glass bulb auto-

matic sprinklers typically used where:

• pendent sprinklers are required on

dry pipe systems that are exposed

to freezing temperatures (for exam-

ple, sprinkler drops from unheated

portions of buildings)

• sprinklers and/or a portion of the

connecting piping may be exposed

to freezing temperatures (for exam-

ple, sprinkler drops from wet sys-

tems into freezers)

NOTICE

Series DS-2 Dry-Type Sprinklers

described herein must be installed

and maintained in compliance with this

document, as well as with the applica-

ble standards of the NATIONAL FIRE

PROTECTION ASSOCIATION (NFPA),

in addition to the standards of any other

authorities having jurisdiction. Failure

to do so may impair the performance

of these devices.

The owner is responsible for main-

taining their fire protection system

and devices in proper operating con-

dition. Contact the installing contrac-

tor or product manufacturer with any

questions.

IMPORTANT

Refer to Technical Data Sheet

TFP2300 for warnings pertaining to

regulatory and health information.

Always refer to Technical Data

Sheet TFP700 for the "INSTALLER

WARNING" that provides cautions

with respect to handling and instal-

lation of sprinkler systems and com-

ponents. Improper handling and

installation can permanently damage

a sprinkler system or its compo-

nents and cause the sprinkler to fail

to operate in a fire situation or cause

it to operate prematurely.

Page 1 of 8

Series DS-2 Dry-Type Sprinklers must

only be installed in fittings that meet

the requirements of the Design Crite-

ria section.

Sprinkler

Identification

Number (SIN)

TY5238

Technical

Data

Approvals

UL and C-UL Listed

NYC Approved under MEA 173-02-E

See Table A.

(These Approvals apply to the service

condition indicated in the Design Criteria

section.)

Maximum Working Pressure

175 psi (12,1 bar)

Inlet Thread Connections

1 in. NPT or

ISO 7-R 1

Discharge Coefficient

See Table D

Temperature Ratings

See Table A

Finishes

Sprinkler: See Table E

Escutcheon: See Table E

Physical Characteristics

Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper

Yoke . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel

Casing . . . . . . . . . . . . . Galvanized Carbon Steel

Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze

Bulb Seat . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze

Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass

Compression Screw . . . . . . . . . . . . . . . . .Bronze

Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze

Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze

Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel

Water Tube . . . . . . . . . . . . . . . . . Stainless Steel

Spring . . . . . . . . . . . . . . . . . . . . . Stainless Steel

Plug . . . . . . . . . . . . . . . Copper Gasketed Spring

Plate Seal . . . . . . . . Beryllium Nickel w/TEFLON

Pin . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel

Button Spring . . . . . . . . . . . . . . . Stainless Steel

Escutcheon . . . . . . . . . . . . . . . . . . .Carbon Steel

FEBRUARY 2020

Worldwide

www.tyco-fire.com

Contacts

Operation

When TYCO Series DS-2 Dry-Type

Sprinklers, 11.2K Pendent, Extended

Coverage, Light and Ordinary Hazard

are in service, water is prevented from

entering the assembly by the Plug

with Gasketed Spring Plate Seal (see

Figure 1) in the Inlet of the sprinkler.

The glass bulb contains a fluid that

expands when exposed to heat. When

the rated temperature is reached, the

fluid expands sufficiently to shatter

the glass bulb, and the Bulb Seat is

released.

The compressed Spring is then able

to expand and push the Water Tube as

well as the Guide Tube outward. This

action simultaneously pulls inward on

the Yoke, withdrawing the Plug with

Gasketed Spring Plate Seal from the

Inlet allowing the sprinkler to activate

and flow water.

TFP540

Need help?

Do you have a question about the DS-2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls DS-2 Series

Page 1 Worldwide www.tyco-fire.com Contacts Series DS-2 Dry-Type Sprinklers 11.2K Pendent Extended Coverage, Light and Ordinary Hazard General Series DS-2 Dry-Type Sprinklers must only be installed in fittings that meet Description the requirements of the Design Crite- ria section. TYCO Series DS-2 Dry-Type Sprinklers, Sprinkler 11.2K Pendent, Extended Coverage, Light and Ordinary Hazard (ECLH/...
Page 2 TFP540 Page 2 of 8 TY5238 with Flush Escutcheon (Figure 2) TY5238 with Recessed Escutcheon with Extended Escutcheon (Figure 3) (Figure 4) Temperature Bulb Rating Color Code without Escutcheon (Figure 5) SPRINKLER FINISH Natural Chromed Natural Chrome Polyester** Polyester** Brass Plated Brass Plated...
Page 3 TFP540 Page 3 of 8 Minimum Flow Minimum Flow Minimum Flow Ordinary Hazard Ordinary Hazard Coverage Area Light Hazard Response Group I Group II Escutcheon ft x ft (0.10 gpm/ft Rating (0.15 gpm/ft (0.20 gpm/ft Type (m x m) (Lpm) (Lpm) (Lpm) 16 x 16...
Page 4 TFP540 Page 4 of 8 K-factor K-factor, LENGTH, gpm/psi Inches (Lpm/bar (mm) SPRINKLER FITTING (REFER TO DESIGN FACE OF 2-1/2 to 6-1/4 11.2 (63 mm to 159 mm) (161,3) CRITERIA SECTION) SPRINKLER FITTING 6-1/2 to 10-1/2 11.1 (165 mm to 267 mm) (159,8) 3-5/8"...
Page 5 TFP540 Page 5 of 8 SPRINKLER FITTING SPRINKLER WRENCHING (REFER TO DESIGN FACE OF CRITERIA SECTION) AREA SPRINKLER ORDER LENGTHS: 3-5/8" DIA. FITTING 1" to 45-1/4" WRENCH (92,1 mm) (25,4 to 1149,4 mm) RECESS IN 1/4" (6,4 mm) 2-3/4" DIA. INCREMENTS FACE OF (69,9 mm)
Page 6 TFP540 Page 6 of 8 For wet pipe system installations of 1 in. NPT Series DS-2 Dry-Type Sprin- TO WET SIDE FACE OF klers connected to CPVC piping, use SYSTEM OUTLET SPRINKLER only the following TYCO CPVC fittings: PLUGGED FITTING •...
Page 7: Installation
TFP540 Page 7 of 8 Clearance Space Step 1. With a non-hardening pipe- or an ice plug. Close the fire protec- In accordance with NFPA 13, when thread sealant such as TEFLON applied tion system control valve and drain the connecting an area subject to freez- to the Inlet threads, hand-tighten the system before removing the sprinkler.
Page 8 1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone +1-215-362-0700 © 2020 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice. NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;...
