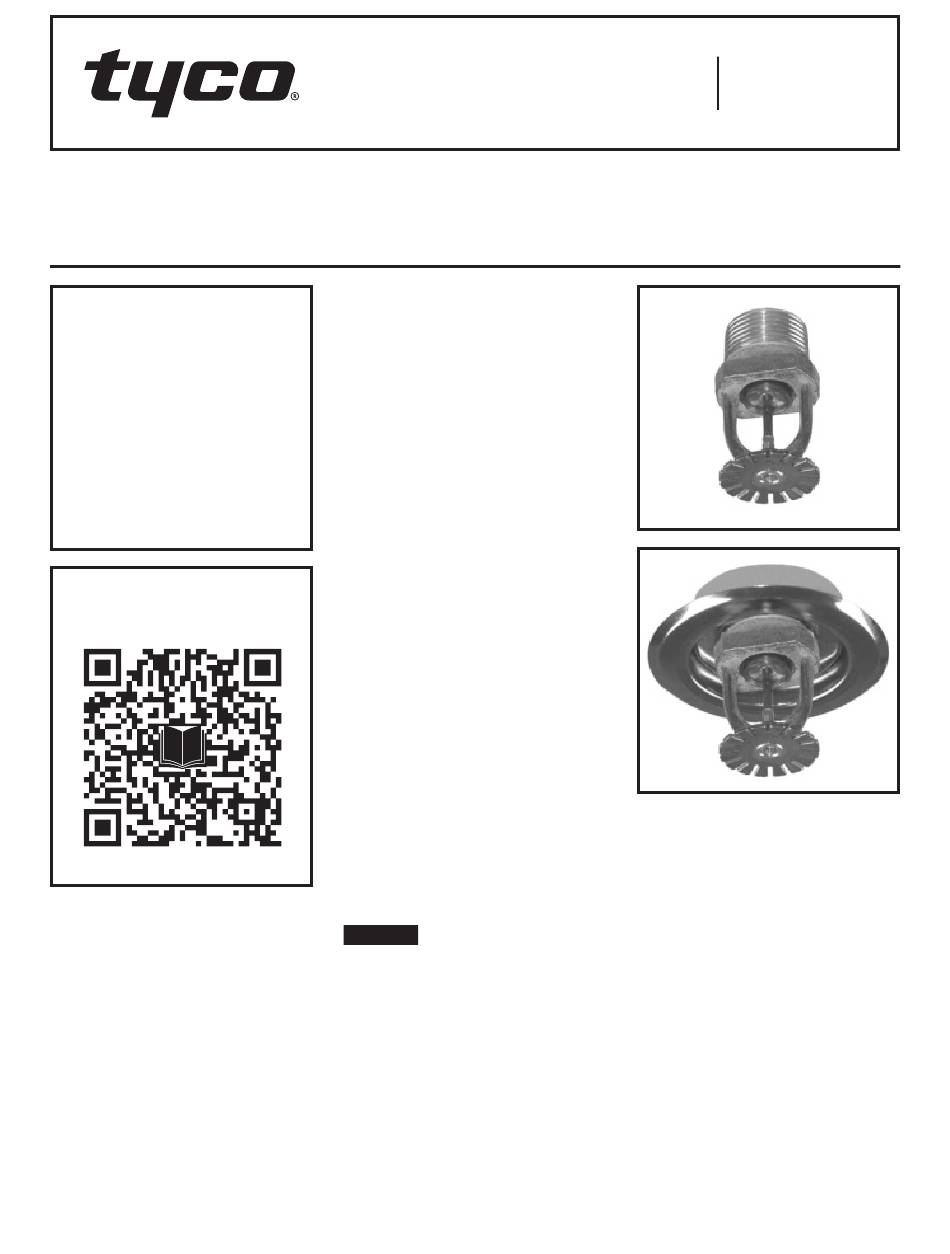

Johnson Controls Tyco EC-8 Series Manual

Series EC-8 — 8.0 K-factor
Extended Coverage (Light Hazard)
Pendent and Recessed Pendent Sprinklers
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp223
General
Description

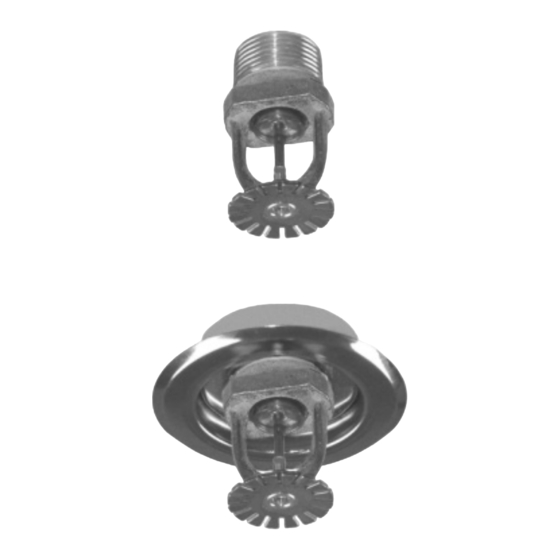

The Series EC-8 Extended Coverage
Pendent Sprinklers are decorative
glass bulb sprinklers designed for use
in light hazard occupancies. They are
intended for use in automatic sprin-
kler systems designed in accordance
with standard installation rules such as
NFPA 13 for a maximum coverage area
2 2
of 400 ft (37,2 m ), as compared to
the maximum coverage area of 225 ft
2
(20,6 m ) for standard coverage sprin-
klers used in light hazard occupancies.
Page 1 of 4
The recessed version of the EC-8
sprinkler, intended for use in areas with
a finished ceiling, uses either of the fol-
lowing two-piece escutcheons:
• Style 30 recessed escutcheon
• Style 40 recessed escutcheon
The style 30 recessed escutcheon pro-
vides up to 1/2 in. (12,7 mm) of total
adjustment from the flush pendent
position, whereas, the style 40 provides
3/4 in. (19,1 mm) of vertical adjustment
from the flush pendent position. The
adjustment provided by the recessed
escutcheons reduces the accuracy to
which the fixed pipe drops to the sprin-
klers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitabil-
ity of these corrosion resistant coatings
for any given corrosive environment.
The effects of ambient temperature,
concentration of chemicals, and gas/
chemical velocity, should be consid-
ered, as a minimum, along with the cor-
rosive nature of the chemical to which
the sprinklers will be exposed.
NOTICE
The Series EC-8 Extended Coverage
Sprinklers described herein must be
installed and maintained in compliance
with this document, as well as with the
applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION, in
addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
2
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
AUGUST 2022
Worldwide
www.tyco-fire.com
Contacts
Sprinkler
Identification
Number (SIN)
TY4232 Pendent, 8 0K
Note: TY4232 is a re-designation for C4232.
TFP223
