Series DS-1 Dry-Type Sprinklers
5.6K Horizontal Sidewall
Standard and Quick Response, Extended Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp520
General
Description

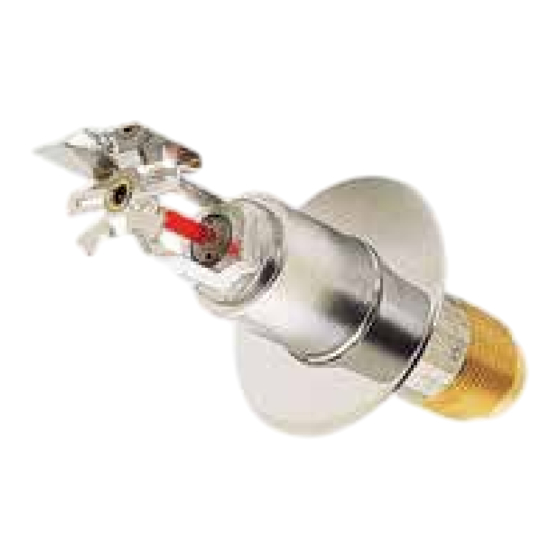

TYCO Series DS-1 Dry-Type Sprinklers,
5.6 K-factor Horizontal Sidewall, Stan-
dard (5 mm Bulb) and Quick Response
(3 mm Bulb) and Extended Cover-
age, are decorative glass bulb auto-
matic sprinklers typically used where
the sprinklers and/or a portion of the
connecting piping may be exposed to
freezing temperatures; for example,
horizontal piping extensions through a
wall to protect an unheated area of a
building. Series DS-1 Dry-Type Sprin-
klers are designed for extended cover-
age use in light hazard occupancies.
Page 1 of 6
NOTICE
Series DS-1 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
Contact the installing contractor or
product manufacturer with any ques-
tions. Series DS-1 Dry-Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
Sprinkler
Identification
Numbers (SINs)
TY3358 . . . . . . . Standard Response
TY3338. . . . . . . . . . Quick Response
Technical
Data
Approvals
UL and C-UL Listed
Note: For additional approvals information,
see Table A.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 in. NPT or ISO 7-R 1
Discharge Coefficient
K=5.6 gpm/psi
½
(80,6 Lpm/bar
Temperature Ratings
See Table A
Finishes
Sprinkler: Natural Brass, Chrome Plated,
or Signal White
Escutcheon: Signal White, Chrome Plated,
or Brass Plated
MAY 2024
Worldwide
Contacts
Physical Characteristics
Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Yoke . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Casing . . . . . . . . . . . . . Galvanized Carbon Steel
Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Bulb Seat . . . . . . . . . . . . . . . . . . . Stainless Steel
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . . . . . . . . . Stainless Steel
Spring . . . . . . . Stainless Steel Gasketed Spring
Plate Seal . . . . . . . . Beryllium Nickel w/TEFLON
Escutcheon . . . . Carbon Steel or Stainless Steel
Operation
When TYCO Series DS-1 Dry-Type
Sprinklers are in service, water is pre-
vented from entering the assembly by
the plug and gasketed spring plate
seal (see Figure 1) in the inlet of the
sprinkler.
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter
the glass bulb, and the bulb seat is
released.
The compressed spring is then able to
expand and push the water tube as well
as the guide tube outward. This action
simultaneously pulls inward on the
yoke, withdrawing the plug and gas-
½
)
keted spring plate seal from the inlet
allowing the sprinkler to activate and
flow water.
www.tyco-fire.com
TFP520

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tyco DS-1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls Tyco DS-1 Series

  • Page 1 Worldwide www.tyco-fire.com Contacts Series DS-1 Dry-Type Sprinklers 5.6K Horizontal Sidewall Standard and Quick Response, Extended Coverage NOTICE IMPORTANT Series DS-1 Dry-Type Sprinklers Refer to Technical Data Sheet described herein must be installed TFP2300 for warnings pertaining to and maintained in compliance with this regulatory and health information.
  • Page 2 TFP520 Page 2 of 6 PLUG WITH YOKE INLET CASING INSERT FRAME 3 or 5 mm DEFLECTOR GASKETED SPRING BAND BULB PLATE SEAL WATER GUIDE BULB VENT COMPRESSION INLET 1" NPT SPRING TUBE TUBE SEAT HOLE SCREW FIGURE 1 EXTENDED COVERAGE HORIZONTAL SIDEWALL ASSEMBLY Temperatures for TY3338...
  • Page 3 TFP520 Page 3 of 6 ORDER LENGTHS: 2-3/4" to 48" 2-3/8" ± 1/8" (69,9 to 1219,2 mm) (60,3 ± 3,2 mm) IN 1/4" (6,4 mm) INCREMENTS FACE OF MOUNTING FACE OF SURFACE 1-3/4" DIA. SPRINKLER (44,5 mm) FITTING 3" DIA. (76,2 mm) SPRINKLER FITTING (REFER TO DESIGN...
  • Page 4: Installation

    TFP520 Page 4 of 6 EXPOSURE TO DRY LENGTH SYSTEM PUSH (SEE DESIGN WRENCH WRENCH CRITERIA SECTION) FLAT IN TO FACE OF ENSURE ENGAGEMENT SPRINKLER WITH FITTING SPRINKLER DSB-2 WRENCH INTENDED FLATS FOR FREEZER DSB-2 STRUCTURES WRENCH INTENDED RECESS FOR FREEZER AREA FIGURE 3 STRUCTURES...
  • Page 5 Inlet seal and that the sprinkler manufacturer with any questions. Inlet Thread Connections, con- needs to be removed for determining tact your Johnson Controls Sales the cause of leakage (for example, an Automatic sprinkler systems are rec- Representative. improper installation or an ice plug).
  • Page 6 1467 Elmwood Avenue, Cranston, RI 02910 | Telephone +1-401-781-8220 © 2024 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice. NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;...
