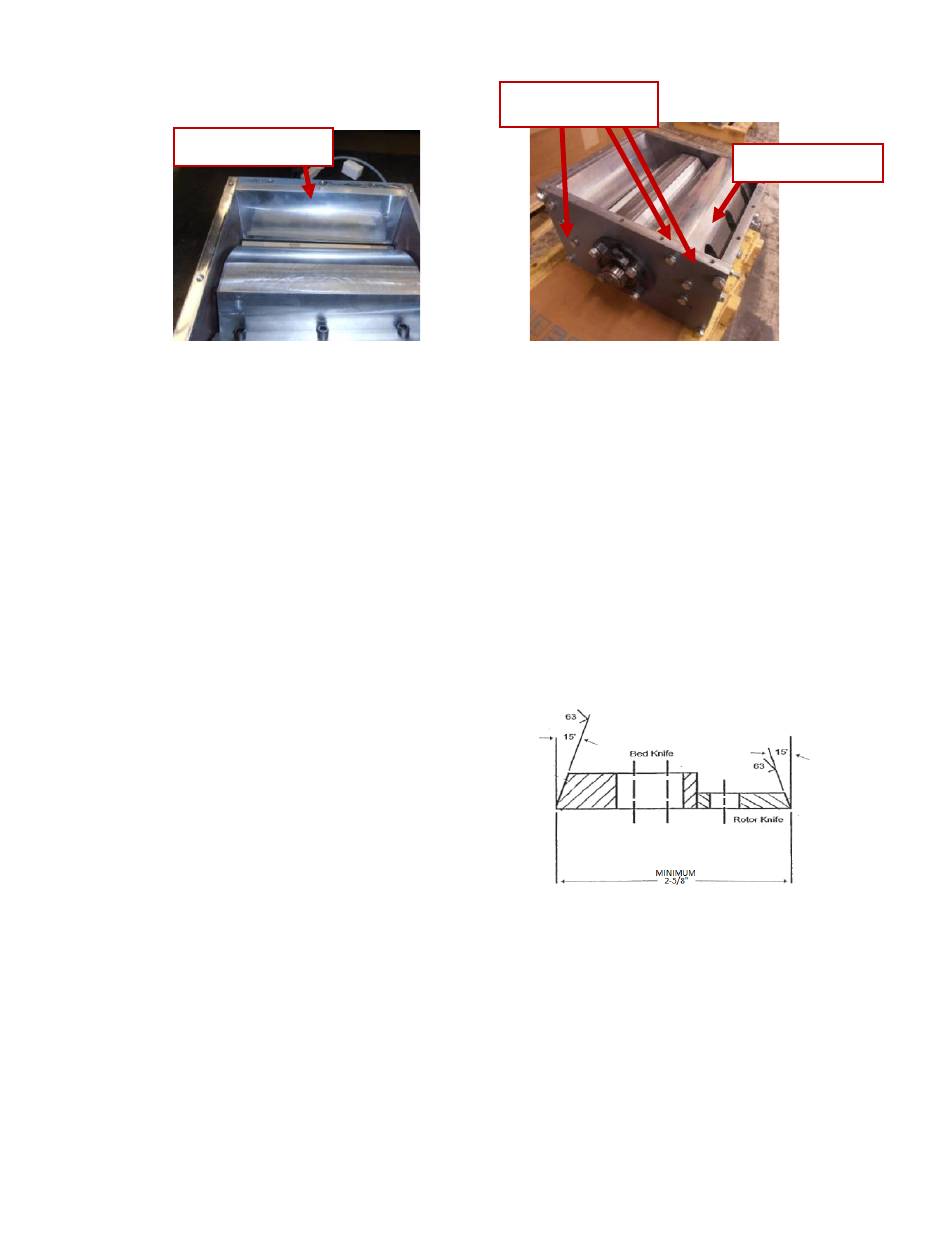

Front deflector
Figure 6.16
13.) Do a final check of bolt torques, assembly bolt tightness, and knife gapping.
Warning: Failure to sharpen or replace knives will result in excess dust, frequent jamming of
STAGE 2 chamber, reduced throughput, excess vibration, and increased noise throughout the
device.
Re-sharpening: Knives can be re-sharpened 2-3 times provided they are not significantly damaged or
worn. Knives must be sharpened as a complete set (2 bed knives, 3 rotor knives). Contact SEM
customer service at 1-800-225-9293 for details or for replacement knives.
Measuring the spare knives:
1. Place knives flat, back-to-back.
2. Measure from cutting edge to cutting edge.
3. If the measurement is below the minimum, then
the knives cannot be used and must be replaced.

6.5 Electrical Panel

The electrical panel is located in the main cabinet, behind the hopper.
Accessing the electrical panel:
1. Open cabinet door.
2. Remove the top cover (see section 6.2).
3. Remove hopper (see section 6.2).
Bolts to replace
Figure 6.18: Minimum measurement of
20
semshred.com | 508.366.1488
Rear deflector
Figure 6.17
knife pairs
