SEM 200 Operation And Maintenance Manual page 16

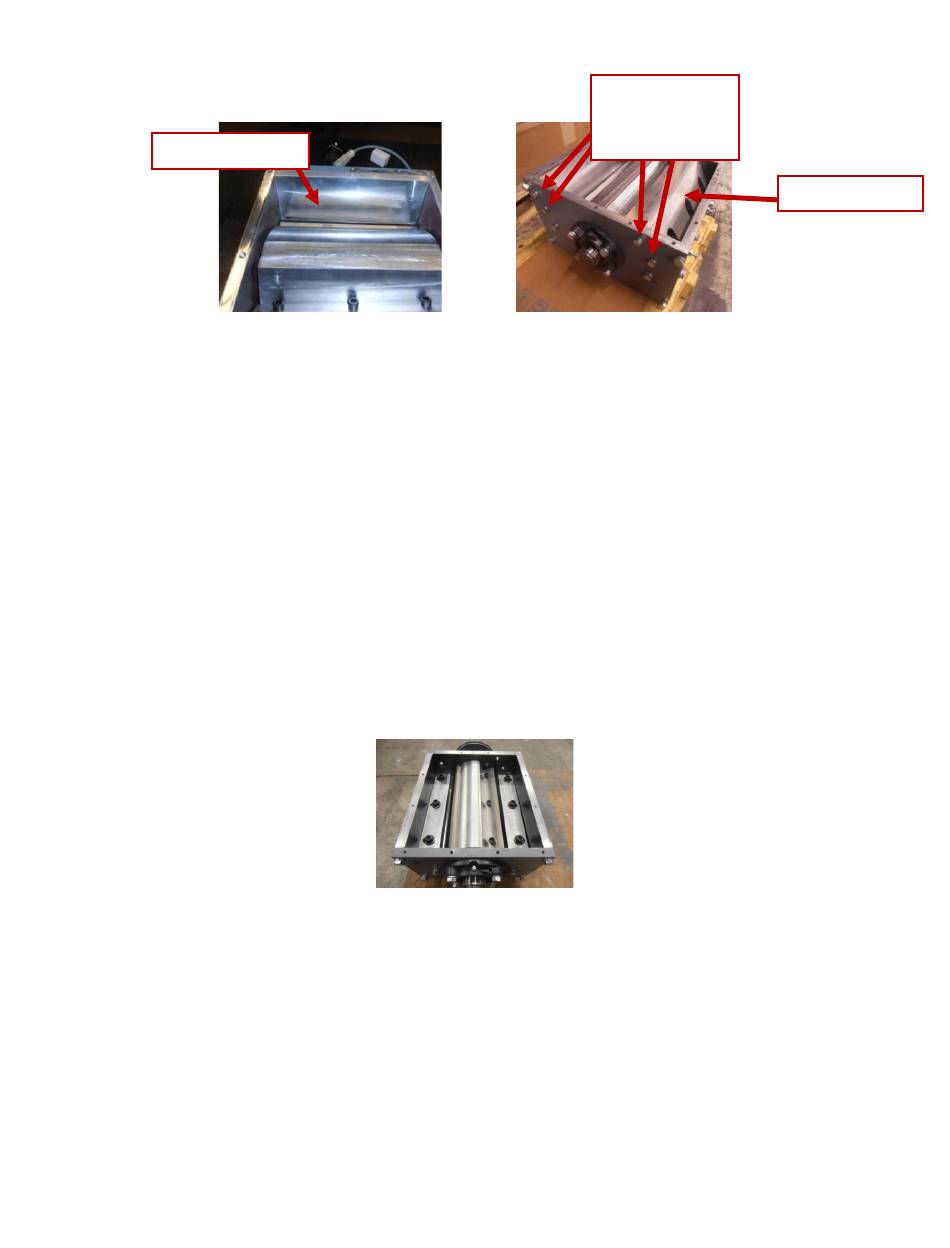

1.) Remove front and rear deflectors. Requires 1/2" wrench
Front deflector
2.) Remove bolts from rotor knives and remove knives noting the edge orientation.
•
CAUTION – Knives are sharp.
•
Requires 5/16" Allen drive socket bit.
3.) Remove bolts from bed knives.
•
Replace one knife at a time.
•
Make sure to keep track of the bed knife clamp orientation.
4.) Wipe bed knife clean and place atop bed knife seat with thicker end towards drive plate and
blades facing rotor. One knife will be upside down.
5.) Wipe bed knife clamp clean and place atop bed knife with thick end towards idle plate (opposite
drive) and the tapered side facing the rotor and the wide part of the taper being on the bottom.
Figure 6.8
Figure 6.10
16
semshred.com | 508.366.1488
Bolts to
remove
(Both sides)
Figure 6.9
Rear deflector
