Care And Maintenance - Johnson Controls tyco DS-1 Series Manual

TFP560
Page 8 of 10

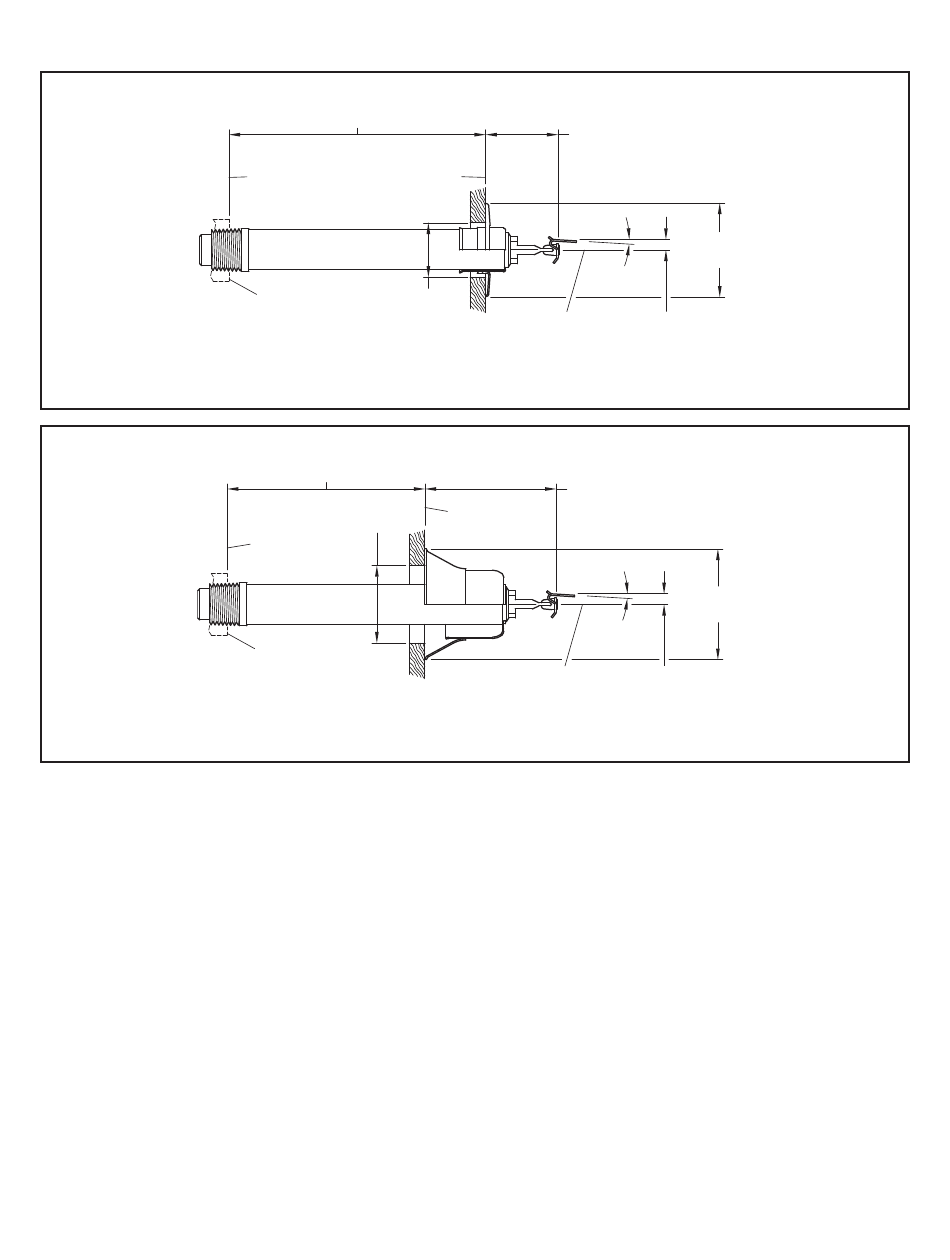

STANDARD COVERAGE HORIZONTAL SIDEWALL WITH STANDARD ESCUTCHEON
1/2" to 45-3/4" (12,7 to 1162,1 mm)
STANDARD COVERAGE HORIZONTAL SIDEWALL WITH DEEP ESCUTCHEON
Care and
Maintenance
TYCO Series DS-1 Stainless Steel
Dry-Type Sprinklers, 5.6K Pendent,
Horizontal Sidewall ( HSW), and
Extended Coverage HSW, Standard
(5 mm bulb) and Quick (3 mm bulb)
Response must be maintained and
serviced in accordance with this
section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system
that it controls, obtain permission to
shut down the affected fire protection
systems from the proper authorities
and notify all personnel who may be
affected by this action.
Absence of the outer piece of an
escutcheon, which is used to cover
a clearance hole, can delay sprinkler
operation in a fire situation.
ORDER LENGTHS:
2-3/4" to 48" (69,9 to 1219,2 mm)
IN 1/4" (6,4 mm) INCREMENTS
FACE OF FACE OF
SPRINKLER MOUNTING
FITTING SURFACE
1-3/4" DIA.
SPRINKLER FITTING
(44,5 mm)
(REFER TO DESIGN
CRITERIA SECTION)
TY3337 (3 MM BULB) AND TY3357 (5 MM BULB)
ORDER LENGTHS:
IN 1/4" (6,4 mm) INCREMENTS
2-1/2" DIA.
FACE OF
(63,5 mm)
SPRINKLER
FITTING
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
TY3337 (3 MM BULB) AND TY3357 (5 MM BULB)
A Vent Hole is provided in the Bulb Seat
to indicate if the Dry Sprinkler is remain-
ing dry. (Refer to Figures 1 through 3.)
Evidence of leakage from the Vent
Hole indicates potential leakage past
the Inlet seal and the need to remove
the sprinkler to determine the cause
of leakage; for example, an improper
installation or an ice plug. Close the
fire protection system control valve and
drain the system before removing the
sprinkler.
Sprinklers which are found to be
leaking or exhibiting visible signs of
corrosion must be replaced.
Automatic sprinklers must never be
painted, plated, coated, or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
2-3/8" ± 1/8"
(60,3 ± 3,2 mm)
3.5°
CENTERLINE
OF WATERWAY
FIGURE 14
4-1/4" ± 1/8"
(108,0 ± 3,2 mm)
FACE OF
MOUNTING
SURFACE
3.5°
CENTERLINE
OF WATERWAY
FIGURE 15
3" DIA.
(76,2 mm)
5/16"
(7,9 mm)
3-1/2" DIA.
(88,9 mm)
5/16"
(7,9 mm)
Care must be exercised to avoid
damage to the sprinklers - before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced. Also, replace any sprinkler
that has a cracked bulb or that has lost
liquid from its bulb. (Refer to Installa-
tion Section.)
The owner is responsible for the inspec-
tion, testing, and maintenance of their
fire protection system and devices in
compliance with this document, as well
as with the applicable standards of the
NATIONAL FIRE PROTECTION ASSO-
CIATION (e.g., NFPA 25), in addition to
the standards of any other authorities
having jurisdiction. Contact the install-
ing contractor or product manufacturer
with any questions.
Automatic sprinkler systems are rec-
ommended to be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
