Johnson Controls tyco DS-1 Series Manual page 7

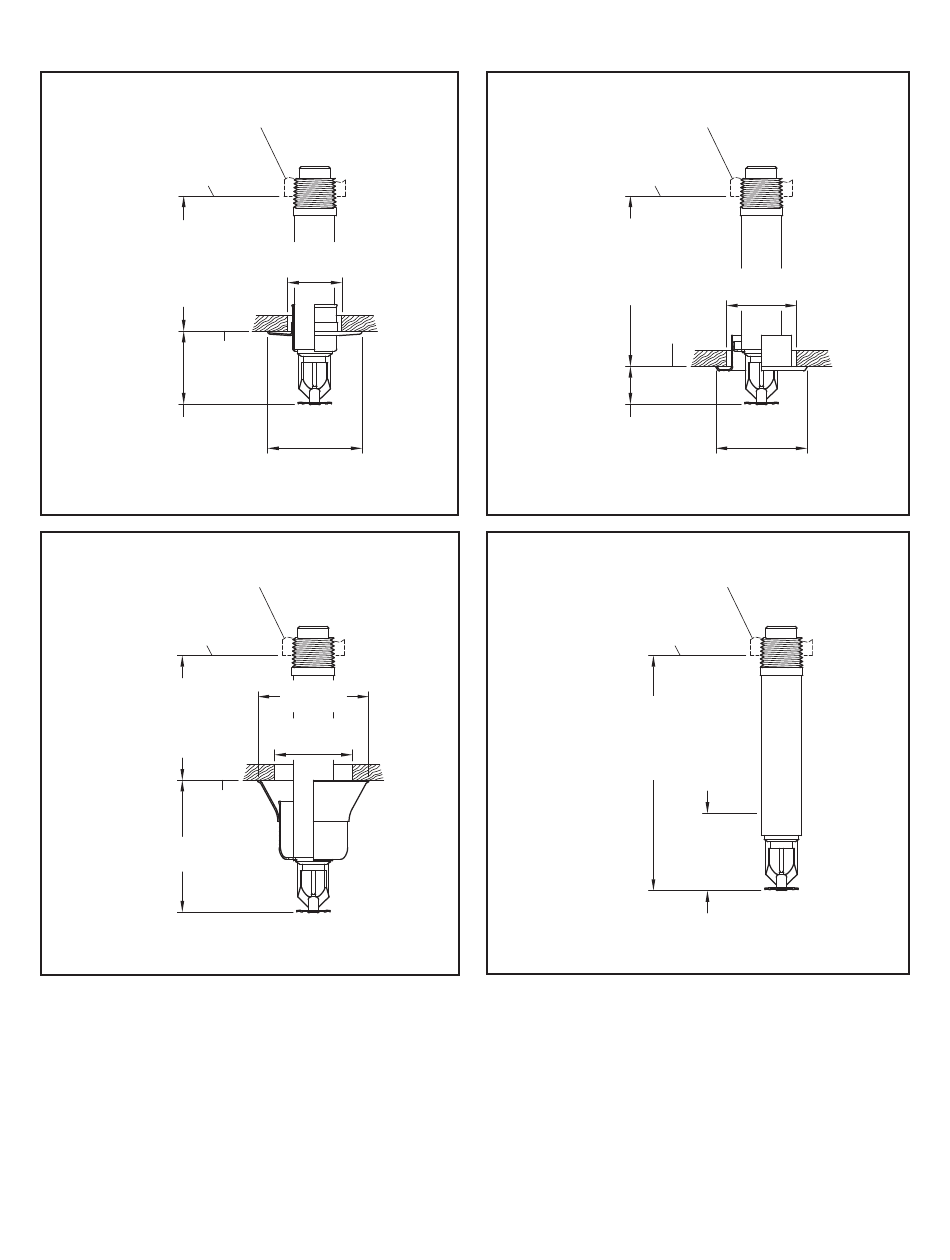

SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
FACE OF
SPRINKLER
FITTING
ORDER LENGTHS:
2-3/4" to 48"
(69,9 to 1219,2 mm)
IN 1/4" (6,4 mm)
INCREMENTS
FACE OF
CEILING
2-3/16" ± 1/8"
(55,6 ± 3,2 mm)
FIGURE 10
PENDENT WITH STANDARD ESCUTCHEON
TY3230 (3 MM BULB) AND TY3250 (5 MM BULB)
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
FACE OF
SPRINKLER
FITTING
ORDER LENGTHS:
1/2" to 46"
(12,7 to 1168,4 mm)
IN 1/4" (6,4 mm)
INCREMENTS
FACE OF
CEILING
4-1/4" ± 1/8"
(108,0 ± 3,2 mm)
FIGURE 12
PENDENT WITH DEEP ESCUTCHEON
TY3230 (3 MM BULB) AND TY3250 (5 MM BULB)
1-3/4" DIA.
(44,5 mm)
3" DIA.
(76,2 mm)
3-1/2" DIA.
(88,9 mm)
2-1/2" DIA.
(63,5 mm)
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
FACE OF
SPRINKLER
FITTING
ORDER LENGTHS:
3-3/4" to 48"
(95,3 to 1219,2 mm)
IN 1/4" (6,4 mm)
INCREMENTS
FACE OF
CEILING
1-3/8" ± 1/8"
(34,9 ± 3,2 mm)
FIGURE 11
PENDENT WITH RECESSED ESCUTCHEON
TY3230 (3 MM BULB) AND TY3250 (5 MM BULB)
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
FACE OF
SPRINKLER
FITTING
ORDER LENGTHS:
5" to 48"
(127,0 to 1219,2 mm)
IN 1/4" (6,4 mm)
INCREMENTS
MINIMUM
1-3/4" (44,5 mm)
DEFLECTOR
TO CEILING
FIGURE 13
PENDENT WITHOUT ESCUTCHEON
TY3230 (3 MM BULB) AND TY3250 (5 MM BULB)
TFP560
Page 7 of 10
2-1/4" DIA.
(57,2 mm)
2-7/8" DIA.
(73,0 mm)
