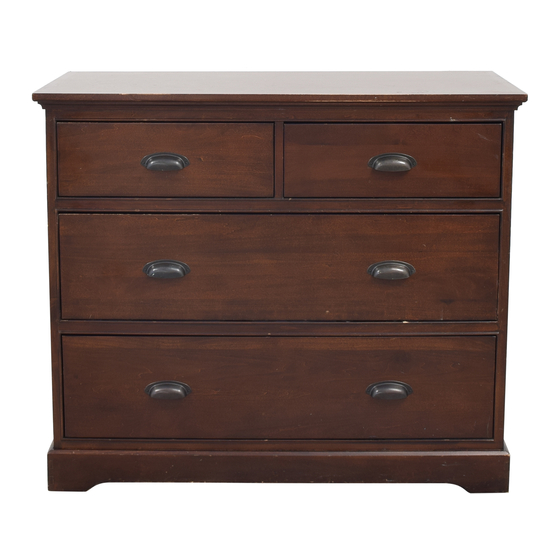

baby&child MARLOWE DRESSER Installation Instruction

W A R N I N G : ADULT ASSEMBLY ONLY OWING TO THE PRESENCE OF SMALL
PARTS, SHARP POINTS AND EDGES
Customer Service- If you are missing parts or have any questions about this product, please
contact us at : 1-800-762-1751

FURNITURE TIPPING RESTRAINT

Young children may be injured by tipping furniture and the use of a tipping restraint is highly
recommended. When properly installed, this restraint could provide protection against the
unexpected tipping of furniture due to small tremors, bumps or climbing. We recommend
mounting this restraint to a wall stud.
WARNING: This product is only a deterrent. It is not a substitute for proper adult
supervision.
P a r t l i s t
(4) Plastic brackets
(2) Restraint strap
(4) Phillip screws M4x30mm
(4) Phillip screws M4x20mm
(4) Plastic anchor
I n s t a l l a t i o n i n s t r u c t i o n
1. Attach one of the mounting brackets near the top back edge of the furniture piece by inserting
the shorter screw.
2. Determine the final position of the furniture piece. Mark location on the wall approximately 2"
below the bracket mounted to the back of the furniture.
3. Drill a starter hole into the wall stud. If wall stud is not available, drill a hole into the wall and
insert plastic anchor. Gently tap the anchor until the flange of the anchor is flush with the wall.
4. Attach the second bracket by inserting the longer screw through the bracket and into the wall.
5. Place the furniture so the bracket on the back edge is in line with the bracket in the wall.
6. Lace one end of the nylon restraint strap down through each bracket. Bring both ends together
and slide the beaded end until it snap locks unto the keyhole slot.
7. To double lock; return the beaded end back through the keyholes as shown.
8. Check to make sure the strap is securely laced and locked to the brackets.
M A R L OW E D R E S S E R
-Page 1 of 2-
