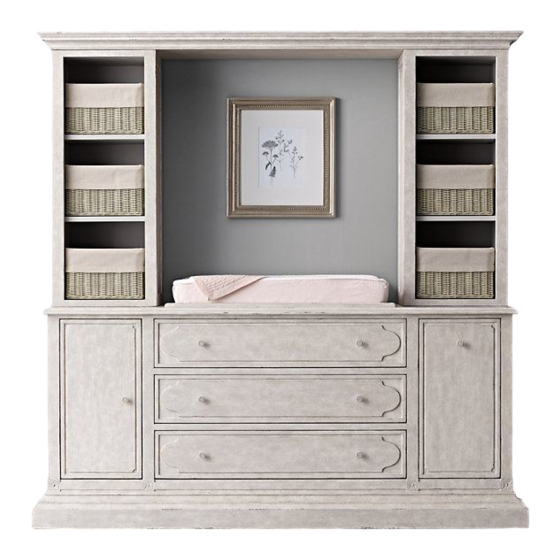

baby&child BELLINA CHANGING TABLE WALL Assembly Instructions

WARNING:
Adult assembly only owing to the presence of small parts, sharp points and edges.
•
FALL HAZARD - To prevent death or serious injury from falls, always keep child within arms reach.
•
The surface used should be level, stable structurally sounds with a minimum surface dimension of 45" by 20".
•
Read all instructions before use of the changing table.
•
Keep the instructions for future reference.
•
Do not use the changing if it is damage or broken.
•
This changing system is intended to use with children weighing up to 30 lbs.
•
Cushion pads size is 32" W x 16" D x 4"H.
•
CAUTION : WHEN CHILD REACHES A MAXIMUM WEIGHT OF 30 LBS. THE CHANGING TABLE SHALL NO
LONGER BE USED.
IMPORTANT
These case parts can be cumbersome and heavy to some people, therefore, the assistance of two or more people
are recommended in order to prevent personal injury and insure the case parts are not damaged during the
assembly Process.
Customer Service - If you are missing parts or have any questions about this product please contact us at
1-800-762-1751

PART LIST

A. BASE
B. LEFT CABINET
C. RIGHT CABINET
D. CANOPY

HARDWARE LIST

NO
ROUND HEAD PHILLIPS WOOD SCREW
1
MENDING PLATE
2
FLAT HEAD WOOD SCREW
3
SHELF HOLDER
4
FIGURE 01
B E L L I N A C H A N G I N G T A B L E W A L L
D E S C R I P T I O N
QTY
12
4
16
24

INSTRUCTIONS

STEP #1:

Set the base (A) in the desired location 16" to 20"
from the wall. Examine the alignment of the doors
and drawers. If leveling is necessary, gently tilt the
base slightly and adjust the levelers accordingly. Turn
the levelers clockwise to raise the furniture piece and
counter clockwise to lower it. Adjust all levelers until
the correct level or flatness is achieved. Refer to
FIGURE 01.
Page 1 of 3
