Digi Wi-Point 3G Application Guide
How to Create a VPN between a Wi-Point 3G and Linksys
________________________________________________________________________
Scenario
Digi Wi-Point 3G is used for primary internet connectivity at a remote site. The remote
site needs a way to get data to and from an office location.
Theory of Operation
A remote site needs to be able to retrieve and send data to an office location from its
Ethernet and Wi-Fi enabled devices. The way to do this will be to setup a VPN tunnel
between the Wi-Point 3G and the Linksys VPN appliance at the office location, to
provide a secure tunnel to the office location.

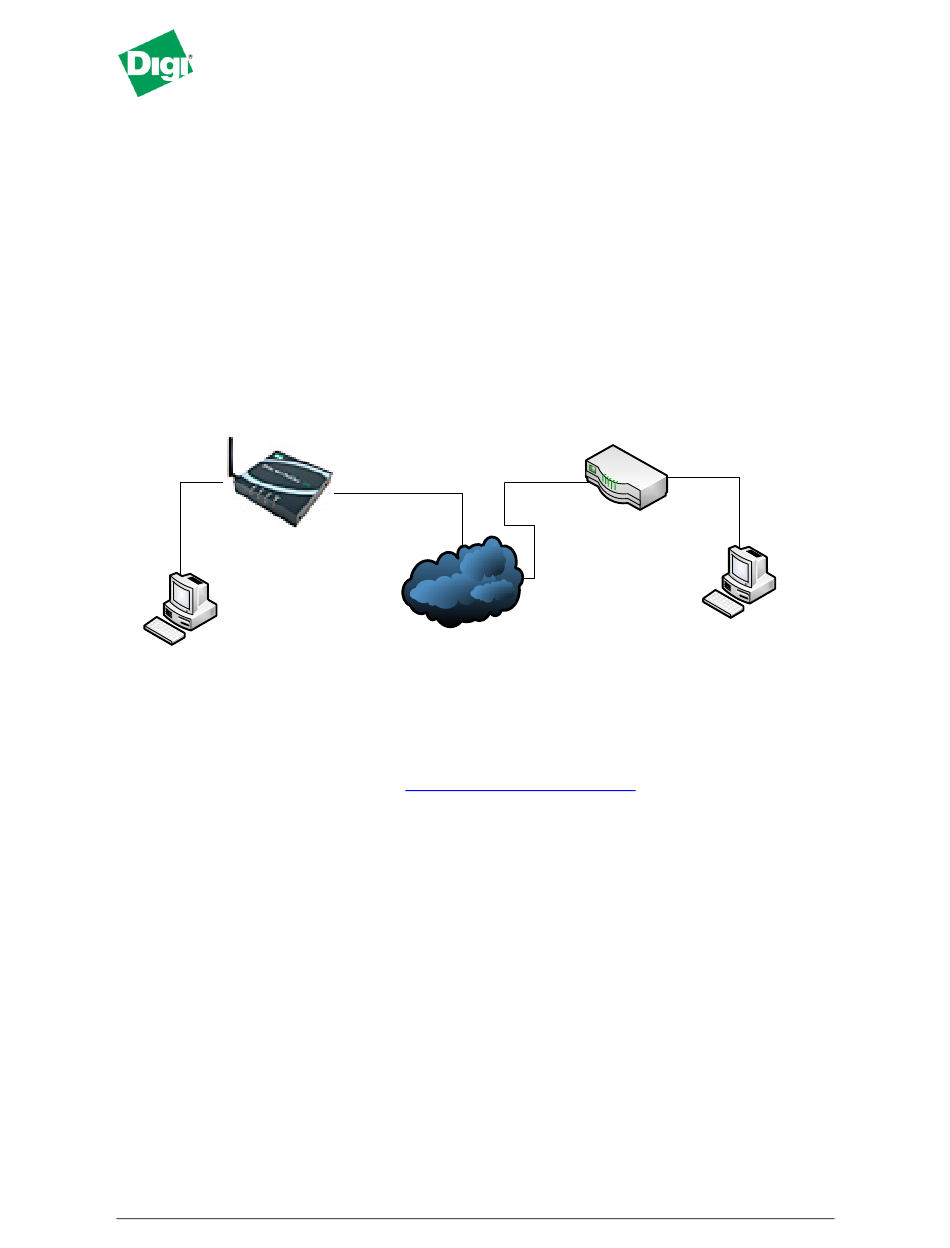

Sample Diagram
WAN IP: 5.6.7.8
WAN IP: 1.2.3.4
LAN IP: 192.168.1.1
LAN IP: 10.1.254.1
Linksys VPN Appliance
Digi Wi-Point
3G
Internet Cloud
Servers, PCs, PLCs, etc.
PCs, PLCs, etc.
Carrier Plan and PC / VPN Appliance Requirements
Digi Wi-Point 3G Requirements: Firmware version 1.1.34-8 or later is installed. To
download the latest firmware, go to http://www.digi.com/support.
GSM GPRS/EDGE APN Type needed: VPN and GRE end-points usually require static
(persistent) IP addresses and must support mobile terminated data connections. If mobile
termination is not an option with your current APN, you will need to acquire a new one
that does support mobile termination.
CDMA networks may also require special plans to provide static IP addresses and
support mobile terminated data connections.
Check with your wireless provider on the available plan types.
2/20/2009
Digi International
1 of 6
Advertisement
Table of Contents
Related Manuals for Digi Wi-Point 3G
Summary of Contents for Digi Wi-Point 3G
- Page 1 How to Create a VPN between a Wi-Point 3G and Linksys ________________________________________________________________________ Scenario Digi Wi-Point 3G is used for primary internet connectivity at a remote site. The remote site needs a way to get data to and from an office location. Theory of Operation A remote site needs to be able to retrieve and send data to an office location from its Ethernet and Wi-Fi enabled devices.
- Page 2 Digi Wi-Point 3G Application Guide – Linksys VPN Connection Digi Wi-Point 3G Configuration 1. Read and follow the quick-start guide for the Digi Wi-Point 3G. A link has been provided: http://ftp1.digi.com/support/documentation/90000907_a.pdf 2. Assign a static IP address to the Ethernet port (the default address is 192.168.1.1).
- Page 3 Digi Wi-Point 3G Application Guide – Linksys VPN Connection iii. Click Apply to save the settings. 2/20/2009 Digi International 3 of 6...
- Page 4 Digi Wi-Point 3G Application Guide – Linksys VPN Connection Linksys Configuration 1. Configure the Linksys VPN device: a. Log into the web interface of the Linksys appliance, and navigate to the VPN setup of the device. i. For example, in the device used for this example, Linksys RV042, the VPN setup is located on the toolbar at the top of the screen.
- Page 5 Digi Wi-Point 3G Application Guide – Linksys VPN Connection e. Click Save Settings to save the settings. 2/20/2009 Digi International 5 of 6...
- Page 6 2. This configuration will work with other VPN parameters than what is listed in the screenshots. i.e. – 3DES Where to Get More Information Refer to the Digi Connect router user documentation and Digi technical support website www.digi.com/support for more information. Technical assistance is available at http://www.digi.com/support/eservice/eservicelogin.jsp.
