Digi Wi-Point 3G Application Guide
How to Create a VPN between Wi-Point 3G and Sonicwall
________________________________________________________________________
Scenario
Digi Wi-Point 3G is used for remote site connectivity. The primary site is using a
Sonicwall VPN appliance. The two networks need to be connected, and the data needs to
be encrypted between them.
Theory of Operation
A remote location needs to be able to build a secure tunnel between the main site and a
remote branch. One location is using a Digi Wi-Point 3G gateway to provide primary
internet connectivity. The other location is using a Sonicwall VPN appliance for primary
site connectivity. AVPN tunnel will be created to the Digi Wi-Point 3G gateway,
creating a secure connection for data to pass through.

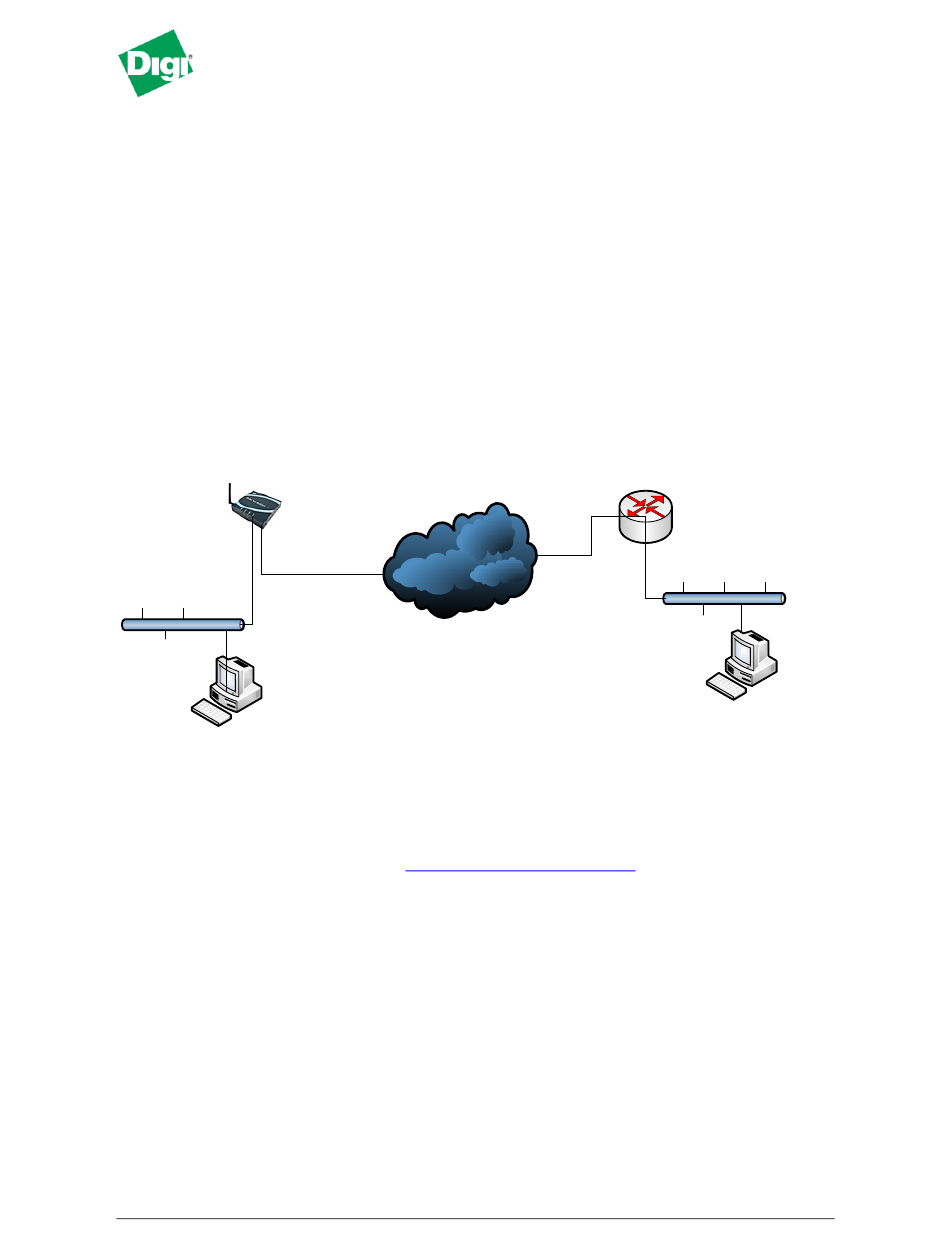

Sample Diagram
Wi-Point 3G
WAN IP: 1.2.3.4
Sonicwall
LAN IP: 10.4.113.1
WAN IP: 5.6.7.8
LAN IP: 172.16.1.1
Internet Cloud
PCs, PLCs, Servers, Etc.
PCs, PLCs, Servers, Etc.
Carrier Plan and PC / VPN Appliance Requirements
Digi Wi-Point 3G Requirements: Firmware version must be 1.1.34-8 or later. To
download the latest firmware, go to http://www.digi.com/support.
GSM GPRS/EDGE APN Type needed: VPN and GRE end-points usually require static
(persistent) IP addresses and must support mobile terminated data connections. If mobile
termination is not an option with your current APN, you will need to acquire a new one
that does support mobile termination.
CDMA networks may also require special plans to provide static IP addresses and
support mobile terminated data connections.
Check with your wireless provider on the available plan types.
5/13/2009
Digi International
1 of 6
Advertisement
Table of Contents
Related Manuals for Digi Wi-Point 3G
Summary of Contents for Digi Wi-Point 3G
- Page 1 How to Create a VPN between Wi-Point 3G and Sonicwall ________________________________________________________________________ Scenario Digi Wi-Point 3G is used for remote site connectivity. The primary site is using a Sonicwall VPN appliance. The two networks need to be connected, and the data needs to be encrypted between them.
- Page 2 Digi Connect Family Application Guide – Wi-Point 3G to Sonicwall Digi Wi-Point 3G Configuration 1. Read and follow the quick-start guide for the Digi Wi-Point 3G. 2. Assign a static IP address to the Ethernet port (the default address is 192.168.1.1).
- Page 3 Digi Connect Family Application Guide – Wi-Point 3G to Sonicwall f. Click Apply to save the changes g. A reboot is required for the settings to take effect. Reboot the unit. 5/13/2009 Digi International 3 of 6...
- Page 4 Digi Connect Family Application Guide – Wi-Point 3G to Sonicwall Sonicwall VPN Configuration 1. Configure the Sonicwall VPN device a. Log into the Web Interface of the Sonicwall device. b. Navigate to VPN on the left hand panel. c. Under the section titled VPN Policies, click the Add button.
- Page 5 Digi Connect Family Application Guide – Wi-Point 3G to Sonicwall e. Click OK to save the settings. f. Click Apply in the upper right hand corner to apply the settings to the device. You may have to reboot the device for these changes to take effect, depending on your model of Sonicwall.
- Page 6 2. This configuration will work with other VPN parameters than what is listed in the screenshots. i.e. – DES, 3DES, AES 192-bit, AES 256-bit, etc. Where to Get More Information Refer to the Digi Wi-Point 3G user documentation and Digi technical support website at www.digi.com/support for more information. Technical assistance is available at http://www.digi.com/support/eservice/eservicelogin.jsp.
