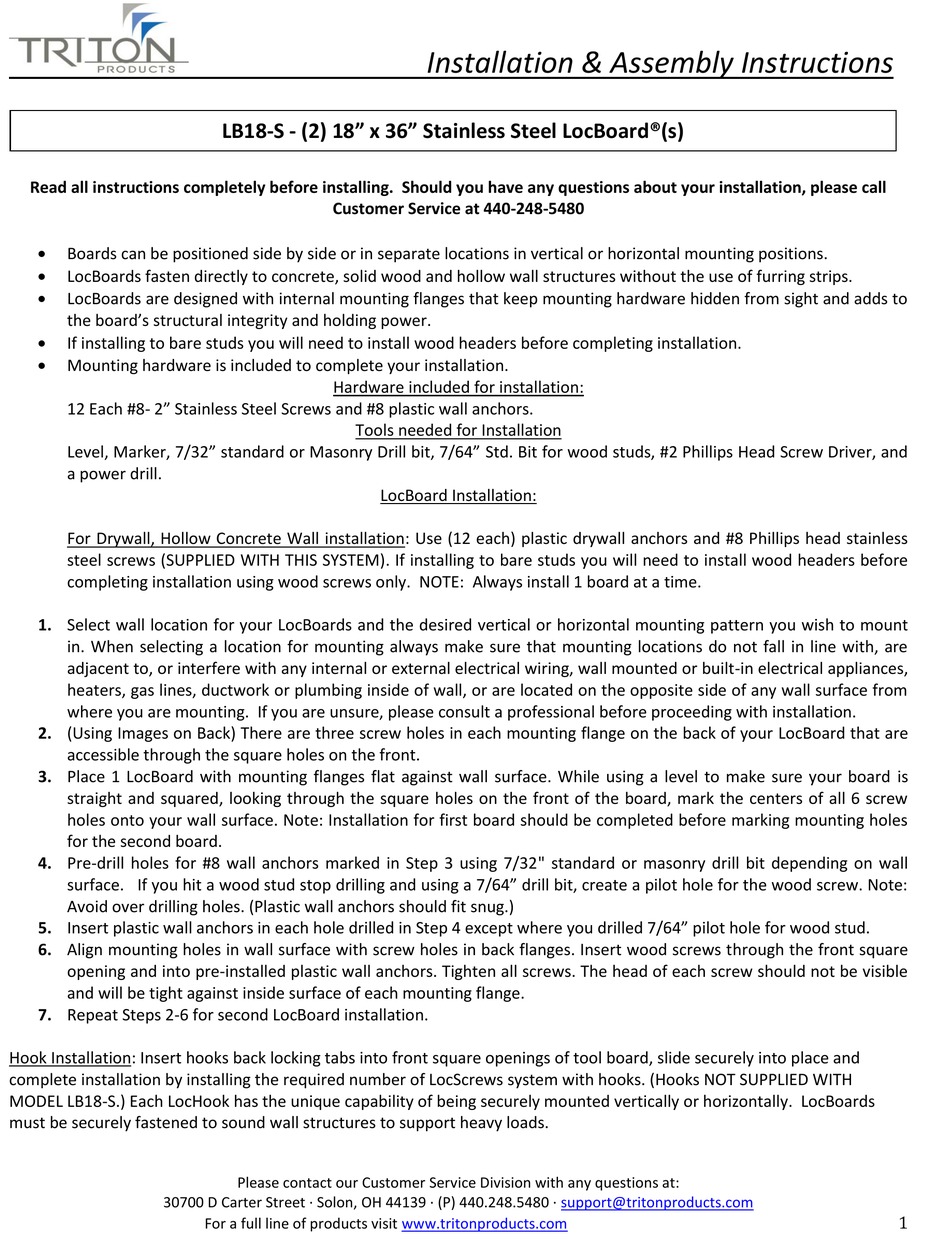

Triton LocBoard LB18-S Installation & Assembly Instructions

Read all instructions completely before installing. Should you have any questions about your installation, please call

Boards can be positioned side by side or in separate locations in vertical or horizontal mounting positions.

LocBoards fasten directly to concrete, solid wood and hollow wall structures without the use of furring strips.

LocBoards are designed with internal mounting flanges that keep mounting hardware hidden from sight and adds to
the board's structural integrity and holding power.

If installing to bare studs you will need to install wood headers before completing installation.

Mounting hardware is included to complete your installation.
12 Each #8- 2" Stainless Steel Screws and #8 plastic wall anchors.
Level, Marker, 7/32" standard or Masonry Drill bit, 7/64" Std. Bit for wood studs, #2 Phillips Head Screw Driver, and
a power drill.
For Drywall, Hollow Concrete Wall installation: Use (12 each) plastic drywall anchors and #8 Phillips head stainless
steel screws (SUPPLIED WITH THIS SYSTEM). If installing to bare studs you will need to install wood headers before
completing installation using wood screws only. NOTE: Always install 1 board at a time.
1. Select wall location for your LocBoards and the desired vertical or horizontal mounting pattern you wish to mount
in. When selecting a location for mounting always make sure that mounting locations do not fall in line with, are
adjacent to, or interfere with any internal or external electrical wiring, wall mounted or built-in electrical appliances,
heaters, gas lines, ductwork or plumbing inside of wall, or are located on the opposite side of any wall surface from
where you are mounting. If you are unsure, please consult a professional before proceeding with installation.
2. (Using Images on Back) There are three screw holes in each mounting flange on the back of your LocBoard that are
accessible through the square holes on the front.
3. Place 1 LocBoard with mounting flanges flat against wall surface. While using a level to make sure your board is
straight and squared, looking through the square holes on the front of the board, mark the centers of all 6 screw
holes onto your wall surface. Note: Installation for first board should be completed before marking mounting holes
for the second board.
4. Pre-drill holes for #8 wall anchors marked in Step 3 using 7/32" standard or masonry drill bit depending on wall
surface. If you hit a wood stud stop drilling and using a 7/64" drill bit, create a pilot hole for the wood screw. Note:
Avoid over drilling holes. (Plastic wall anchors should fit snug.)
5. Insert plastic wall anchors in each hole drilled in Step 4 except where you drilled 7/64" pilot hole for wood stud.
6. Align mounting holes in wall surface with screw holes in back flanges. Insert wood screws through the front square
opening and into pre-installed plastic wall anchors. Tighten all screws. The head of each screw should not be visible
and will be tight against inside surface of each mounting flange.
7. Repeat Steps 2-6 for second LocBoard installation.
Hook Installation: Insert hooks back locking tabs into front square openings of tool board, slide securely into place and
complete installation by installing the required number of LocScrews system with hooks. (Hooks NOT SUPPLIED WITH
MODEL LB18-S.) Each LocHook has the unique capability of being securely mounted vertically or horizontally. LocBoards
must be securely fastened to sound wall structures to support heavy loads.
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙

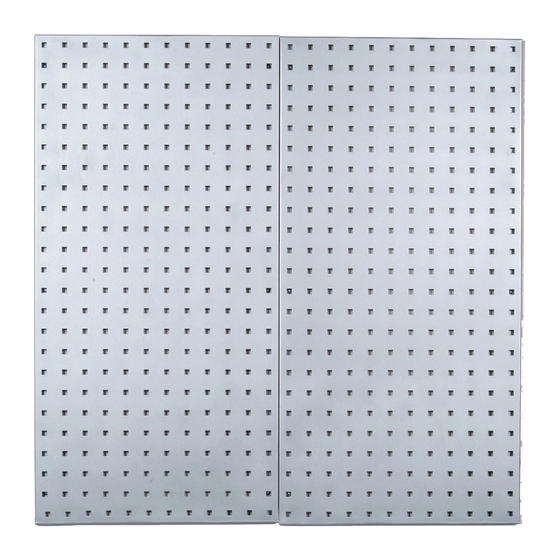

LB18-S - (2) 18" x 36" Stainless Steel LocBoard®(s)
Customer Service at 440-248-5480
Hardware included for installation:

Tools needed for Installation

LocBoard Installation:

Please contact our Customer Service Division with any questions at:
For a full line of products visit
Installation & Assembly Instructions
