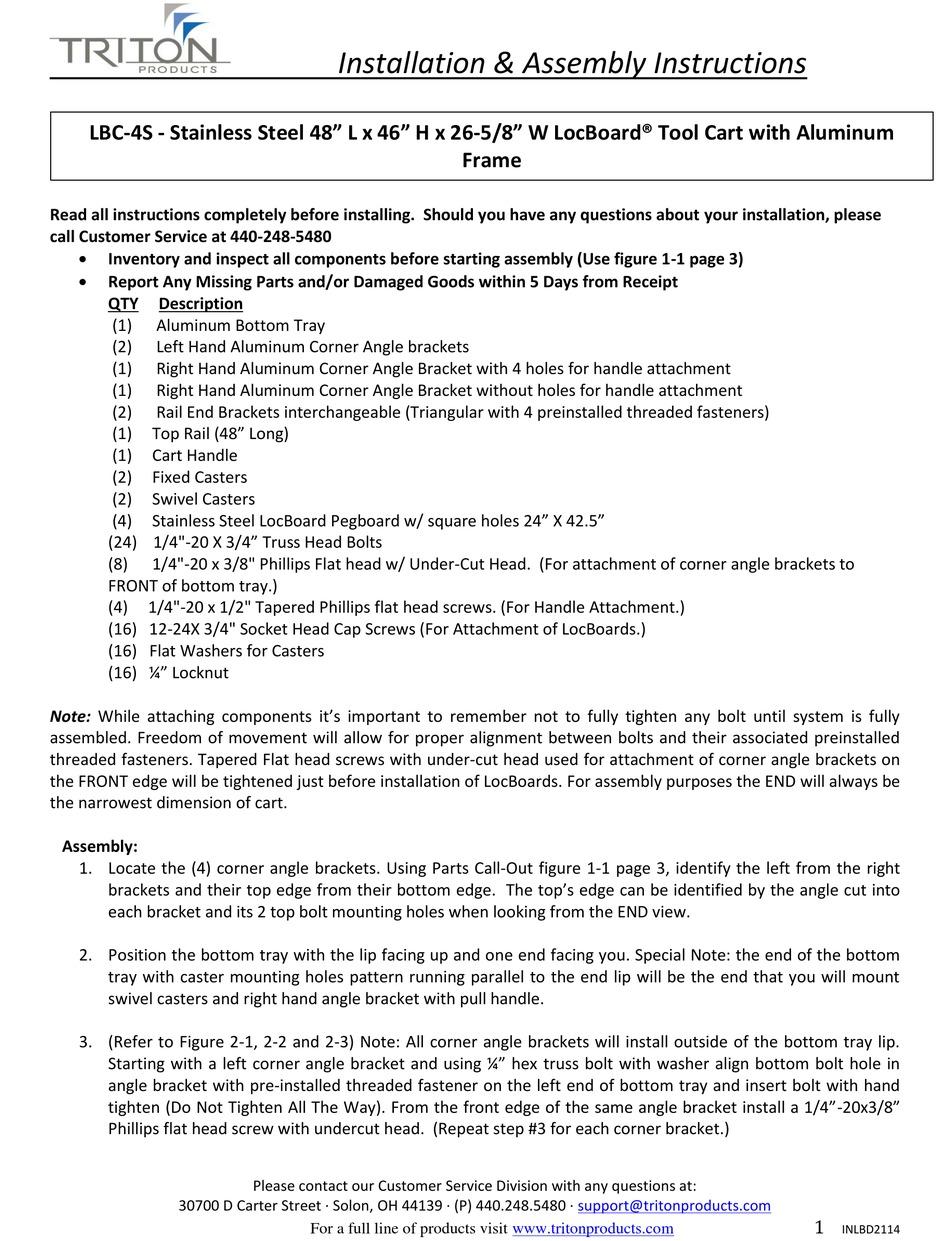

Triton LocBoard LBC-4S Installation & Assembly Instructions

LBC-4S - Stainless Steel 48" L x 46" H x 26-5/8" W LocBoard® Tool Cart with Aluminum
Read all instructions completely before installing. Should you have any questions about your installation, please
call Customer Service at 440-248-5480

Inventory and inspect all components before starting assembly (Use figure 1-1 page 3)

Report Any Missing Parts and/or Damaged Goods within 5 Days from Receipt
QTY Description
(1) Aluminum Bottom Tray
(2) Left Hand Aluminum Corner Angle brackets
(1) Right Hand Aluminum Corner Angle Bracket with 4 holes for handle attachment
(1) Right Hand Aluminum Corner Angle Bracket without holes for handle attachment
(2) Rail End Brackets interchangeable (Triangular with 4 preinstalled threaded fasteners)
(1) Top Rail (48" Long)
(1) Cart Handle
(2) Fixed Casters
(2) Swivel Casters
(4) Stainless Steel LocBoard Pegboard w/ square holes 24" X 42.5"
(24) 1/4"-20 X 3/4" Truss Head Bolts
(8) 1/4"-20 x 3/8" Phillips Flat head w/ Under-Cut Head. (For attachment of corner angle brackets to
FRONT of bottom tray.)
(4) 1/4"-20 x 1/2" Tapered Phillips flat head screws. (For Handle Attachment.)
(16) 12-24X 3/4" Socket Head Cap Screws (For Attachment of LocBoards.)
(16) Flat Washers for Casters
(16) ¼" Locknut
Note: While attaching components it's important to remember not to fully tighten any bolt until system is fully
assembled. Freedom of movement will allow for proper alignment between bolts and their associated preinstalled
threaded fasteners. Tapered Flat head screws with under-cut head used for attachment of corner angle brackets on
the FRONT edge will be tightened just before installation of LocBoards. For assembly purposes the END will always be
the narrowest dimension of cart.
Assembly:
1. Locate the (4) corner angle brackets. Using Parts Call-Out figure 1-1 page 3, identify the left from the right
brackets and their top edge from their bottom edge. The top's edge can be identified by the angle cut into
each bracket and its 2 top bolt mounting holes when looking from the END view.
2. Position the bottom tray with the lip facing up and one end facing you. Special Note: the end of the bottom
tray with caster mounting holes pattern running parallel to the end lip will be the end that you will mount
swivel casters and right hand angle bracket with pull handle.
3. (Refer to Figure 2-1, 2-2 and 2-3) Note: All corner angle brackets will install outside of the bottom tray lip.
Starting with a left corner angle bracket and using ¼" hex truss bolt with washer align bottom bolt hole in
angle bracket with pre-installed threaded fastener on the left end of bottom tray and insert bolt with hand
tighten (Do Not Tighten All The Way). From the front edge of the same angle bracket install a 1/4"-20x3/8"
Phillips flat head screw with undercut head. (Repeat step #3 for each corner bracket.)
