Summary of Contents for POLYPOOL PP1465

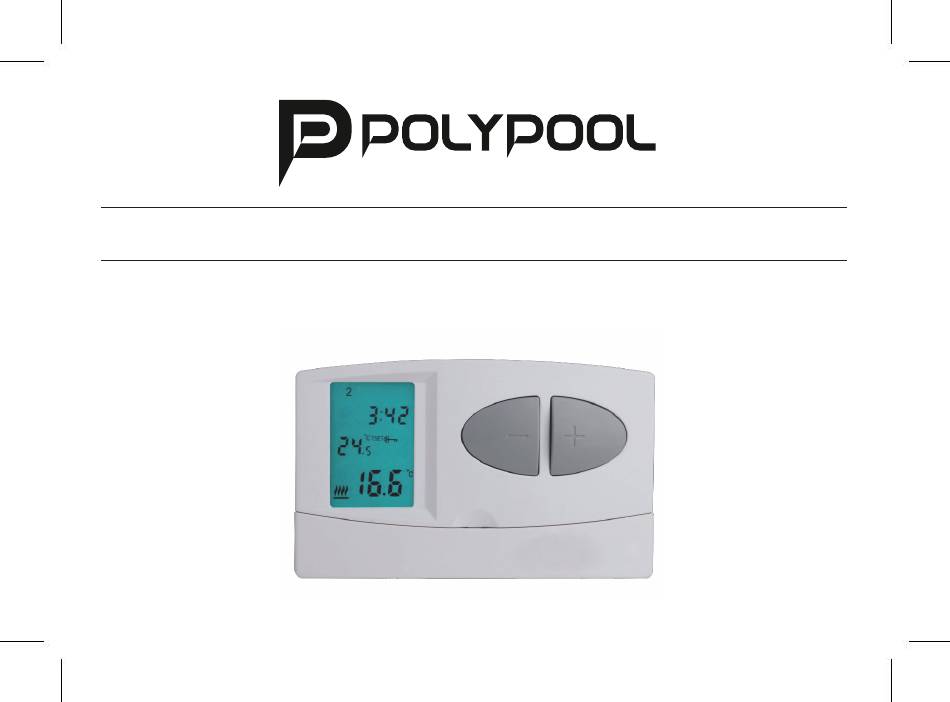

- Page 1 User instructions “EASY” DIGITAL CHRONOTHERMOSTAT PP1465...
-
Page 2: General Warnings
The chronothermostat has 6 separate and independent GENERAL WARNINGS daily temperature programs (intervals) that can be set for each day of the week. Ignition times can be set at This type of relay ambient thermostat is suitable for 10 minute intervals and temperatures can be adjusted regulating many models of available boilers. - Page 3 The thermostat ignition sensitivity can be Information shown on the LCD selected: ± 0.2°C (factory setting, recommended display of the thermostat: for heating systems with radiator) or + 0/-0.2°C (this setting is recommended for underfloor heating). This configuration represents the temperature Manual Days difference between the adjusted value and the actual...
-
Page 4: Important Warning
POSITION THERMOSTAT OF THE THERMOSTAT INSTALLATION • Position the thermostat in a position protected from Pressing the lever on the upper side of the temperature changes or extreme heat (e.g., direct thermostat housing, remove the rear base of the thermostat as shown in the figure. sunlight, refrigerator, fireplace, etc.). - Page 5 after the assembly process has been completed. Opening lever Press the back to release ATTENTION! The device must be installed by a qualified installer. Always follow the manufacturer's instructions when connecting the thermostat to any heating or cooling device.
-
Page 6: Basic Setting
Press the "DAY” " button. The day number flashes on the display, press the (-) or (+) buttons to set the BASIC SETTING number of the current day (Monday 1; Tuesday 2; Wednesday 3, etc.). 3.1 Inserting the batteries Press the “DAY button again to confirm the day set; Pressing the lever on the upper side of the the hour number flashes on the display, press the (-) or thermostat, remove the rear base of the thermostat... - Page 7 based central heating systems. (for example where 3.3 Set ignition sensitivity flat radiators are installed) with low thermal inertia, while the ignition sensitivity of + 0/-0.2°C (the Based on the factory settings, the sensitivity of the display shows the symbol "S:2" for this setting) is ignition is ±...
- Page 8 (“HP:OFF”). To prevent the pump from blocking, the pump protection function turns on the boiler for one minute at 24 every day outside the heating season. The pump protection works if the boiler is also on during the summer. It is reasonable to set a low temperature level on the thermostat during this period, for example +10°C, to prevent unnecessary starts to the boiler when the weather becomes...
-
Page 9: Programming The Thermostat
With the factory settings the thermostat operates with the following programming for all the days of the week: PROGRAMMING THERMOSTAT Thermostat programming allows setting of the 7:00 20°C switch-on hours and selection of the desired temperatures for each programming band. The 09:00 17°C thermostat can be programmed in daily/weekly... -
Page 10: Program Settings
Press the (-) or (+) buttons to select the day to be Temperature programmed or all the days of the week. To use the same program for all the days of the week, select the solution (1 2 3 4 5 6 7). Press the "PROG"... -
Page 11: Copy Function
pressing the “DAY” button during programming After programming all the values, press the on the unwanted program. The display shows this "SET" button to confirm the programmed process through lines (- - - -), which appear on the time values and to return to the main screen. (After and temperature segments. -
Page 12: Program Cancellation
• flash). Repeatedly press the "PROG" button to Press the "COPY" button to copy the selected check the values of the P2, P3 ignitions, etc. day's program. The copy stops the number from • flashing indicating that the copy has been made After checking the program, it is possible to return •... - Page 13 Button temperature ( ):press the “SET”, button, hold it down and then press the (+) button once FACTORY VALUES COMBINED and then, using the(-) and/or (+), buttons, set the WITH THE BUTTONS temperature to be combined with the (+) button. After setting the temperature, press the "SET"...
- Page 14 Press theDAYbutton to set the desired forcing hours display the symbol appears and the thermostat (from 1 to 9 hours). The thermostat will maintain the will temporarily control the boiler based on the value modified temperature for the period of time set. After set until the next program intervenes.
- Page 15 "Holiday" function can be interrupted by returning to the set program by pressing the “SET” button. TURN ON THE BACK- 5.4 Changing the temper-ature GROUND LIGHT until the next manual interference Press the "LIGHT" button to activate the display Set the desired temperature by pressing the (-) or (+) background light which will light up for 10 seconds.
-
Page 16: Changing The Battery
CHANGING THE BATTERY The average battery life is 1 year, but frequent use of the background light can considerably reduce this time. If the symbol on the display shows a low battery charge, replace the batteries (see Section 2). After replacing the batteries, proceed to set the day, hour and minutes again, while the set programs remain stored and it is therefore not necessary to reprogram the thermostat. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS 8A (2A inductive charge) Contacts rating: 0 to 35°C (with 0.1°C increase) Temperature measurement range: 7 at 35°C (with 0.5°C increase) Temperature regulation field: ±0.5°C Sensitivity: ± 0.2°C (for radiator heating systems) Selectable activation sensitivity: + 0/-0.2°C (for underfloor heating) Daily, Weekly Programming: 10 minutes... - Page 20 Poly Pool S.p.A. via Sottocorna, 21/B 24020 Parre (BG) - Italy Tel. 035 4104000 www.polypool.it...
