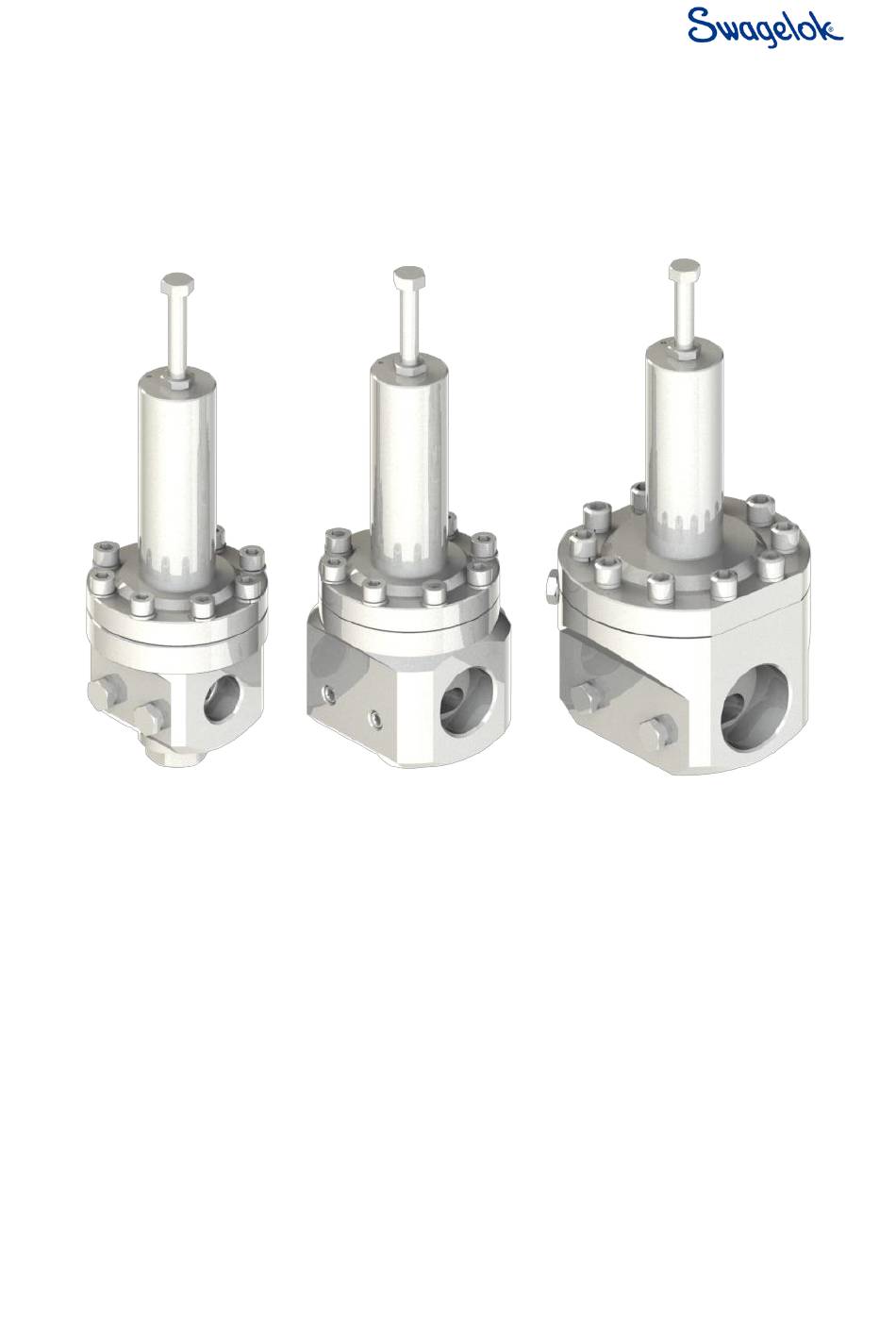

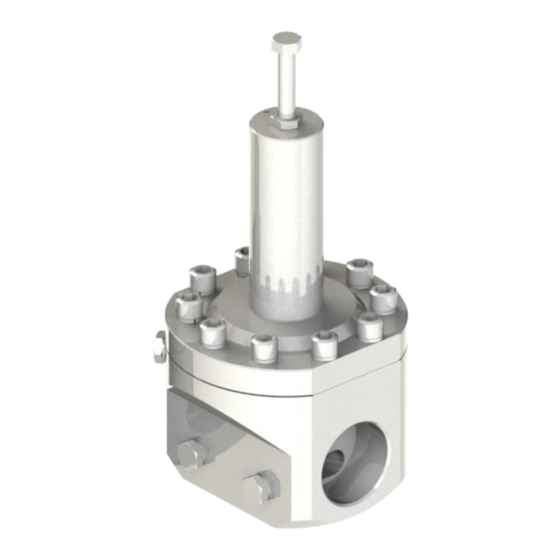

RS(H)10/15/20 Pressure-Reducing Regulator
User Manual
Read the complete manual before installing and using the regulator.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swagelok RS10 Series

  • Page 1 RS(H)10/15/20 Pressure-Reducing Regulator User Manual Read the complete manual before installing and using the regulator.
  • Page 2 Safe Product Selection When selecting a product, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. WARNING • Users must be trained and equipped for the handling, use, and servicing of pressure products and systems.
  • Page 3: Table Of Contents

    Contents Introduction ................................ 4 Overview................................4 Standard Features ............................4 Additional Options ............................4 Oxygen Service ............................... 4 Installation ................................5 Points of Attention Before Installation ......................5 Installation ............................... 5 Operation ................................6 Required Tools for Operation .......................... 6 Points of Attention Before Operation .......................
  • Page 4: Introduction

    The regulator is available with the following options: Anti-tamper Oxygen Service For more information about hazards and risks of oxygen enriched systems see the Swagelok Oxygen System Safety technical report (MS-06-13). Cleaning and packaging to ensure compliance with product cleanliness requirements stated in ASTM G93 Level C is available.
  • Page 5: Installation

    Installation CAUTION Do not use the regulator as a shutoff device. A level of leakage across the regulator seat can occur during normal operation. Points of Attention Before Installation This regulator can be equipped with a variety of different options. Before installing the regulator you should fully understand the functions of the supplied options and the suitability of your particular regulator for the intended application.
  • Page 6: Operation

    Operation Required Tools for Operation A 19 mm open-ended wrench is required for changing the set pressure on a standard regulator. A 19 mm and a 32 mm open-ended wrench are required for anti-tamper regulators. Points of Attention Before Operation CAUTION The product can be hot or cold, depending on the environmental temperature and the process media temperature.
  • Page 7: Maintenance

    To reduce maintenance related system downtime to a minimum, either during commissioning or normal operation, Swagelok recommends having maintenance kits readily available on site. The need for maintenance kits is particularly important during the commissioning phase of a system installation due to residual assembly debris remaining in the system.
  • Page 8: Points Of Attention Before Removal From The System

    Points of Attention Before Removal from the System Swagelok recommends removing the regulator from the system for servicing and maintenance. Follow all local system safety and maintenance procedures when removing the regulator. WARNING Before removing a regulator from the system, to avoid personal injury, you must: •...
  • Page 9: Assembly Reference Data

    Assembly Reference Data Torque Recommended Lubrication Item Component Name Kit Type(s) lbf·ft (N·m) (included in kit per Table 1) RS(H)10: 37 (50) Body plug C1, C2 RS(H)15: 37 (50) Lubricate threads RS(H)20: 52 (70) Body plug O-ring B1, B2, C1, C2 Poppet spring C1, C5 Poppet backup ring...
  • Page 10 RS(H)10/15/20 Series, Exploded view Fig 1...
  • Page 11 RS(H)10/15 Series, Diaphragm Sensing, Section View Fig 2...
  • Page 12 RS(H)10/15 Series, Piston Sensing, Section View; Control Range 5 Fig 3...
  • Page 13 RSH10/15 Series, Piston Sensing, Section View; Control Ranges 6,7 and 8 Fig 4...
  • Page 14 RS(H)20 Series, Section View Fig 5...
  • Page 15: Disassembly

    Maintenance kit components will be supplied preassembled where practicable to aid reassembly. Swagelok recommends replacing all O-rings removed during disassembly. Swagelok recommends that dynamic O-rings should be lightly lubricated per Table 2. NOTICE All threaded components must be lightly lubricated per Table 2 before reassembly to avoid...
  • Page 16: Reassembly

    Reassembly RS(H)10 Series: Standard Diaphragm Sensing 1. Fit the body plate (10) into the body (9) and retain with the retaining ring (11). 2. Fit the Seat O-ring (8) into the body (9) and ensure that it is seated all the way round. 3.
  • Page 17: Rs(H)10 Series: Standard Piston Sensing

    RS(H)10 Series: Standard Piston Sensing 1. Follow steps 2 through 9 of the RS(H)10 series standard diaphragm sensing reassembly procedure. 2. If present fit the body plate (10) into the body (9) oriented per Fig 3. 3. Fit the piston plate O-ring (20), piston O-ring (17) and, if present, piston backup ring (18) onto and into the piston plate (19).
  • Page 18: Testing

    Testing Swagelok recommends that the regulator be tested for seat and shell leakage to atmosphere. A well performing regulator will not show any indication of leaking. If any evidence of a leak is identified this must be rectified. Any damaged components must be replaced.
  • Page 19: Troubleshooting

    Troubleshooting Symptom Cause Remedy The outlet pressure creeps up, A damaged poppet and/or Replace the poppet and/or seat. without adjusting the spring. seat. Leakage around the body plug. A damaged O-ring. Replace the O-ring. A damaged diaphragm or O- Replace the diaphragm or O-ring. Leakage between the body and ring.
  • Page 20 Warranty Information Swagelok products are backed by The Swagelok Limited Lifetime Warranty. For a copy, visit swagelok.com or contact your authorized Swagelok representative. Swagelok, Snoop - TM Swagelok Company Krytox – TM The Chemours Company © 2018 Swagelok Company July 2018, RevB...
