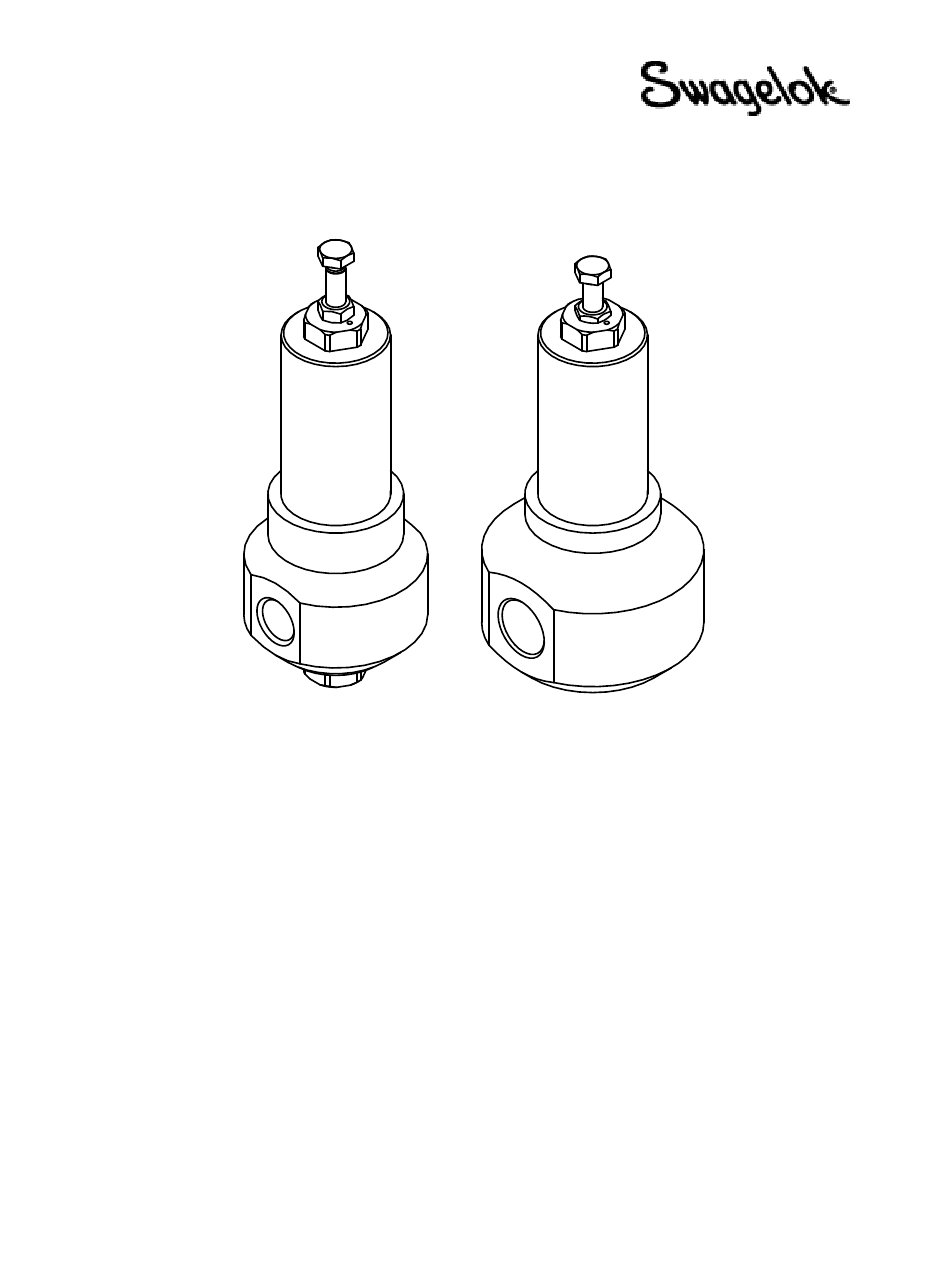

RHPS Series
CRS4,6
User Manual
Read the complete manual before installing and using the regulator.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHPS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swagelok RHPS Series

  • Page 1 RHPS Series CRS4,6 User Manual Read the complete manual before installing and using the regulator.
  • Page 2: Table Of Contents

    WARNING Before removing a regulator from the system for service, you must ▪ depressurize system ▪ purge the system to remove any residual system media left in the regulator. Contents Introduction ............................... 3 Installation ..............................4 Operation ..............................5 Maintenance .............................. 6 Testing ................................
  • Page 3: Introduction

    Introduction Representative drawing of a CRS4 body springguide (body) o-ring springhousing setspring bodyplate (balance) o-ring valvespring sliding bearing ring pistonplate (piston) o-ring bodyplug piston (piston) back-up ring valve (bodyplug) o-ring seat (seat) o-ring setscrew (hexagon head)
  • Page 4: Installation

    Installation WARNING ® When installing a Swagelok self-venting regulator, position the vent connection or line away from operating personnel. Operating personnel must protect themselves from exposure to system fluids. CAUTION Do not use the regulator as a shutoff device. Connections to System Before connecting to system, verify the regulator is closed by turning the handle or adjusting screw: ▪...
  • Page 5: Operation

    Operation Note: All directions are when viewed from above. ▪ Outlet and control pressure settings are obtained by adjusting the set screw with a 13 mm open end wrench. ▪ To increase the outlet or control pressure, rotate the set screw clockwise. ▪...
  • Page 6: Maintenance

    Points of attention before assembly ▪ All parts must be clean and undamaged before starting assembly. ▪ Swagelok recommends replacing all o-rings before assembly. ▪ All threaded parts must be lightly lubricated before assembly to avoid galling of threads. ▪...
  • Page 7 Assembly instructions ▪ Clamp the body in the vice, with the bodyplug side upwards. ▪ Place the correct o-ring around the seat and place the seat in the body. ▪ Place the correct o-ring, the valvering, the valvespring and the valve into the bodyplug. ▪...
  • Page 8: Testing

    Testing Check the regulator for leakage across the seat, with low- and high inlet pressure. Check the regulator for leakage across the piston, with low- and high outlet pressure. Check the required outlet pressure range. A well performing regulator is 100 % bubble tight. If there is a leakage across the seat or the piston or leakage to the outside, the damaged parts must be replaced.
  • Page 9: Troubleshooting

    Troubleshooting Problem: The outlet pressure creeps up, without turning the setscrew. Cause: A damaged valve and/or seat. Solution: Replace the valve and/or the seat. Problem: Leakage around the body plug. Cause: A damaged o-ring or insufficient torque on the body plug. Solution: Replace the o-ring ring or tighten the body plug according to the torque specifications.
  • Page 10 Warranty Information Swagelok products are backed by The Swagelok Limited Lifetime Warranty. For a copy, visit swagelok.com or contact your authorized Swagelok representative. For additional information, see www.swagelok.com. WARNING: Swagelok, Snoop – Swagelok Company Do not mix/interchange Swagelok products or components ©...

This manual is also suitable for:

Crs4Crs6
