RHPS Series
BD(H) 20, 25 (-DP)
User Manual
Read the complete manual before installing and using the regulator.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RHPS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Swagelok RHPS Series

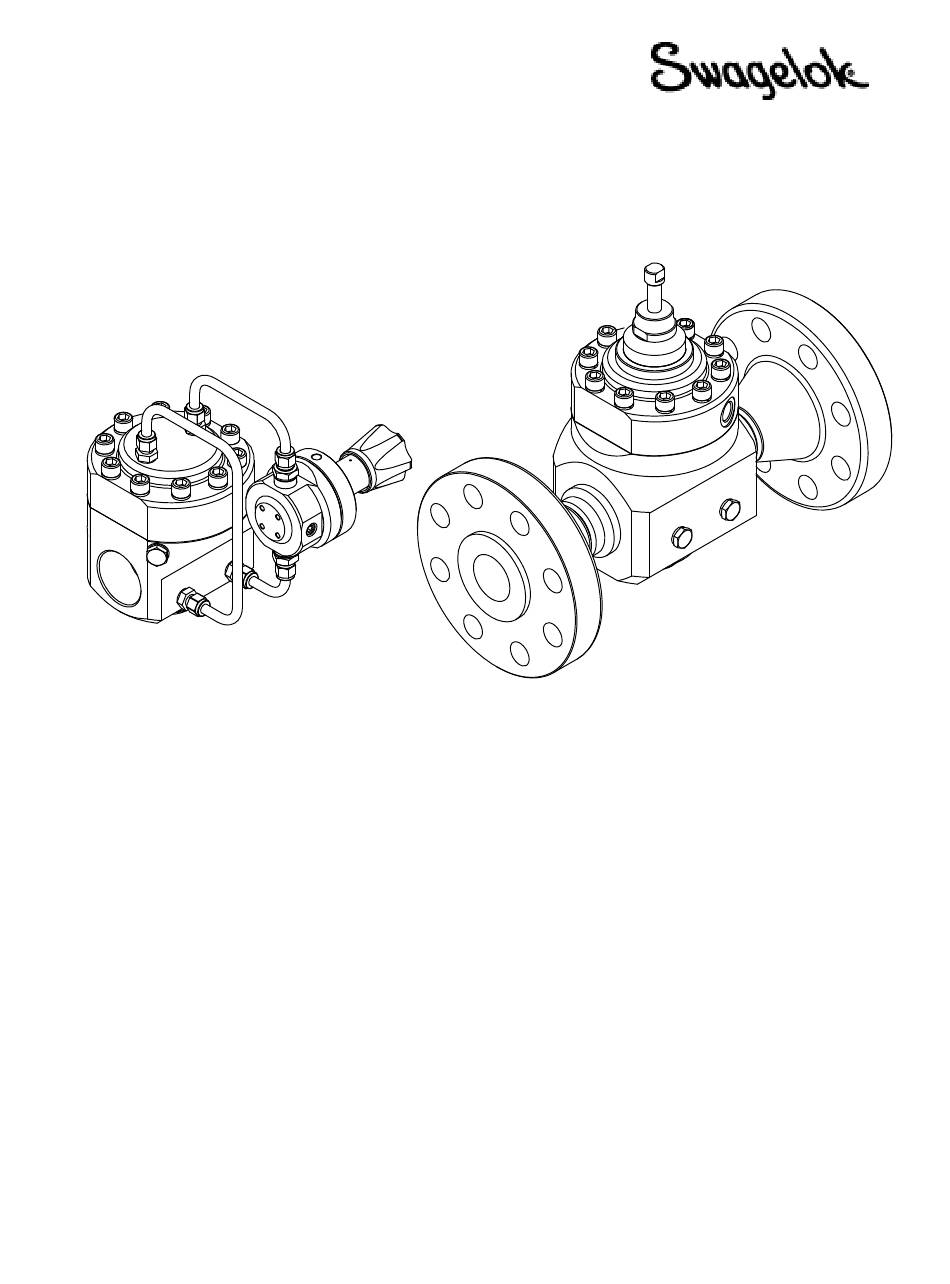

  • Page 1 RHPS Series BD(H) 20, 25 (-DP) User Manual Read the complete manual before installing and using the regulator.
  • Page 2: Table Of Contents

    WARNING Before removing a regulator from the system for service, you must ▪ depressurize system ▪ purge the system to remove any residual system media left in the regulator. Contents Introduction ............................3 Installation .............................. 5 Operation ..............................8 Maintenance ............................9 Testing ..............................
  • Page 3: Introduction

    Introduction Representative drawing of the standard BD20, 25-DP body assembly guide ring springguide dome o-ring domescrew bodyplug ring valve case setspring socket head cap screw valve screw o-ring setscrew valve insert pistonplate o-ring piston o-ring o-ring seat retaining ring...
  • Page 4 Dome loading with differential pressure A differential pressure dome loaded regulator has a set spring inside the dome. The set spring is used to maintain a desired pressure difference between the dome pressure and the outlet pressure. Usually the dome pressure is a reference pressure taken elsewhere out of the system. dome diaphragm plate diaphragm...
  • Page 5: Installation

    Installation WARNING ® When installing a Swagelok self-venting regulator, position the vent connection or line away from operating personnel. Operating personnel must protect themselves from exposure to system fluids. CAUTION Do not use the regulator as a shutoff device. CAUTION...
  • Page 6 This can be achieved by sensing the outlet pressure downstream of the regulator and feeding it back to the regulator. For this purpose Swagelok has provided a special connection, marked on the regulator itself as "external feedback".
  • Page 7 Connecting the external feedback The external feedback must be installed as follows: ▪ The external feedback is to be connected in a turbulence-free zone in the downstream piping, at a maximum distance of 5x the outside diameter of the down stream piping. ▪...
  • Page 8: Operation

    Operation Note: All directions are when viewed from above. ▪ Inlet and set pressure settings are obtained by adjusting pressure in the dome. ▪ Increase the pressure in the dome to increase the inlet pressure. ▪ Decrease the pressure in the dome to decrease the inlet pressure. ▪...
  • Page 9: Maintenance

    Points of attention before assembly ▪ All parts must be clean and undamaged before starting assembly. ▪ Swagelok recommends replacing all o-rings and the diaphragm before assembly. ▪ All threaded parts must be lightly lubricated before assembly to avoid galling of threads. ▪...
  • Page 10: Testing

    Testing Check the regulator for leakage across the seat, with low- and high inlet pressure. Check the regulator for leakage across the diaphragm, with low- and high outlet pressure. A well performing BD(H)20/BD(H)F25 is 100 % bubble tight. If there is a leakage across the seat or the diaphragm, the damaged parts must be replaced.
  • Page 11: Troubleshooting

    Troubleshooting Problem: The outlet pressure creeps up, without increasing the dome pressure. Cause: A damaged valve and/or seat. Solution: Replace the valve and/or the seat. Problem: Leakage around the bodyplug. Cause: A damaged o-ring or insufficient torque on the body plug. Solution: Replace the o-ring or tighten the bodyplug according to the torque specifications.
  • Page 12 Warranty Information Swagelok products are backed by The Swagelok Limited Lifetime Warranty. For a copy, visit swagelok.com or contact your authorized Swagelok representative. For additional information, see www.swagelok.com. Swagelok, Snoop – Swagelok Company Caution: Do not mix or interchange parts ©...
