Site requirements

Select an installation site that meets the detailed installation site
requirements described in the server user guide on the Documentation
CD and on the HP website (http://www.hp.com).

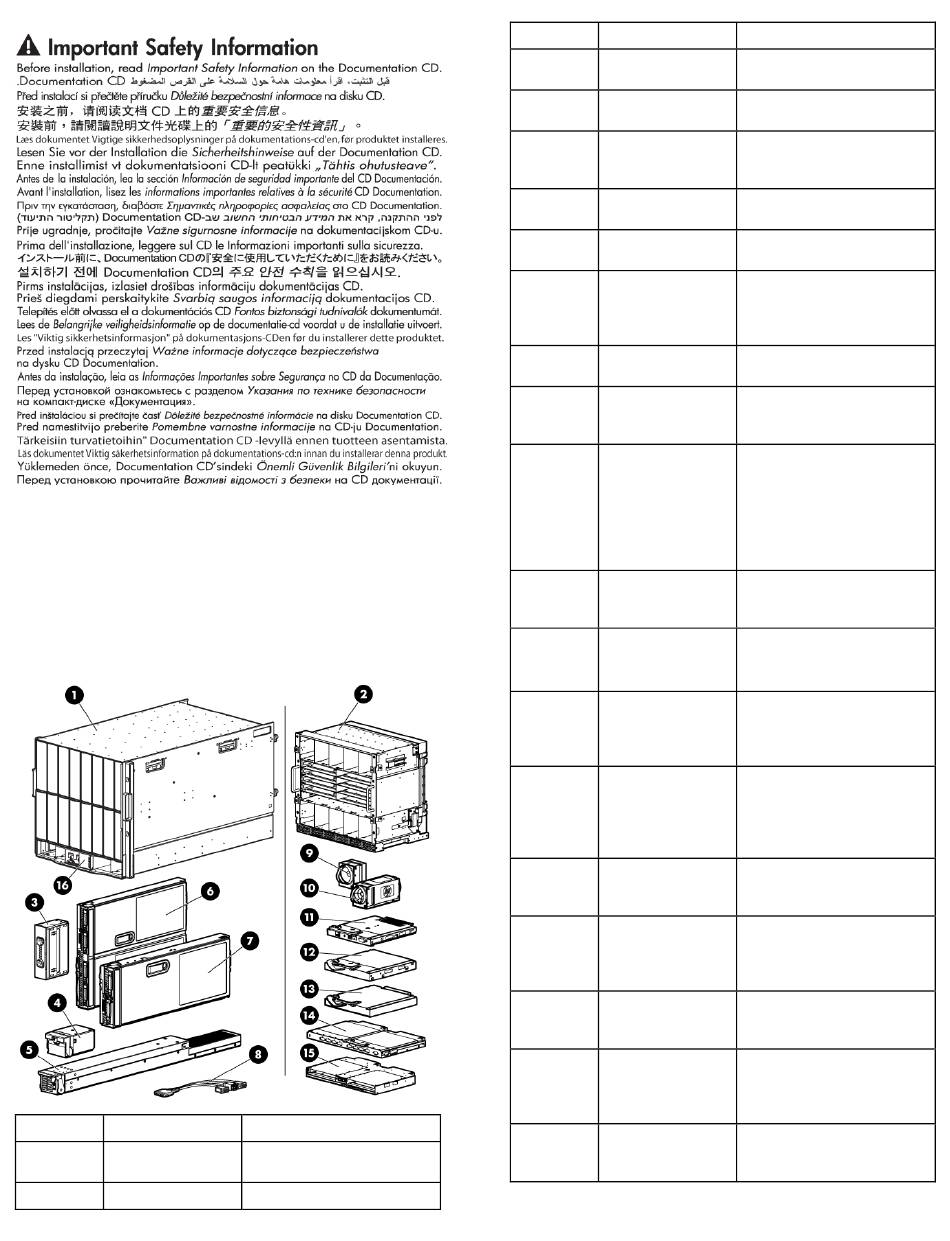

Verifying the pallet contents

Item Name
HP BladeSystem
1
c7000 Enclosure
Rear cage
2
Description
The HP BladeSystem enclosure
The rear section of the enclosure
Item Name
Device bay blank
3
Power supply blank
4
Enclosure hot-plug
5
power supply (quantity
as ordered)
Full-height device
6
(quantity as ordered)
Half-height device
7
(quantity as ordered)
Local I/O cable
8
Fan blank
9
HP Active Cool 300
10
Fan (quantity as
ordered)
Onboard
11
Administrator with
KVM module
Onboard
12
Administrator with
KVM blank
Interconnect blank
13
Interconnect module
14
(quantity and type as
ordered)
Onboard
15
Administrator with
KVM tray
HP BladeSystem Insight
16
Display
Power retention ties
17*
(single-phase
enclosures only)
Documentation CD
18*
Hard copy installation
19*
instructions for blades,
options, and
interconnects
Installation checklist
20*
* Not shown
3
Description
A mandatory insert installed in
any unused device bay
A mandatory insert installed in
any unused power supply bay
The power supply for the
enclosure
The full-height server or storage
blade
The half-height server or storage
blade
A cable with serial, USB, and
video connectors that connects to
the I/O connector on the front of a
blade
A mandatory insert installed in
any unused fan bay
A fan used to cool the components
installed in the enclosure
Hot-pluggable enclosure
management module. One
module is required to manage the
components installed in the
enclosure. To provide redundant
enclosure management, you can
install an optional second module.
A mandatory cover installed in
any unused Onboard
Administrator bay
A mandatory insert installed in
any unused interconnect bay
Any of several components, such
as pass-thrus or switches that
enable communication between
the blade and the enclosure
Hot-pluggable tray that houses up
to two Onboard Administrator
modules and provides two
enclosure link connectors, the rear
enclosure UID, LED, and switch.
A display that provides
information about the health and
operation of the enclosure
Tie straps that help prevent
single-phase power cables from
disconnecting from the power
connectors
A CD containing detailed
documentation on using the
enclosure
The printed installation instructions
A checklist to guide you through
installation of the enclosure and
components
