RoadScan Canada PBC10 User Instruction Manual

Hide thumbs Also See for PBC10:
Table of Contents

Advertisement

Quick Links

Download this manual
RoadScan Canada
PBC10
User Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBC10 and is the answer not in the manual?

Questions and answers

Related Manuals for RoadScan Canada PBC10

Summary of Contents for RoadScan Canada PBC10

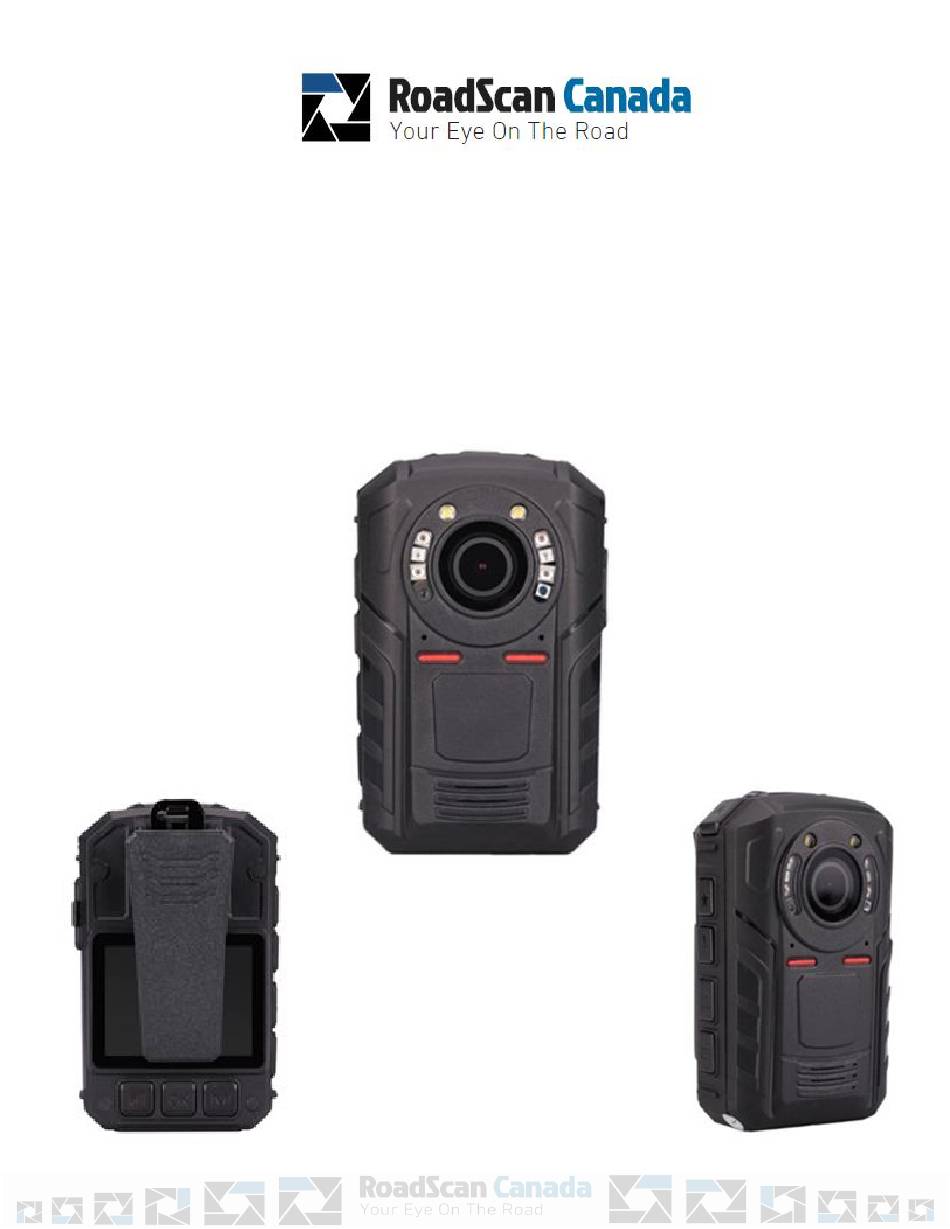

  • Page 1 RoadScan Canada PBC10 User Instruction Manual...

  • Page 2: Camera Layout

    CAMERA LAYOUT 1. Manual IR key short Press: Night Vision b. Manual long Press: White Light 2. Power: hold for 3 seconds to turn on/off or ‘back’ button 3. Mode Indication LED a. Green=power on b. Red=video on c. Yellow=statement or audio only on 4.
  • Page 3 Power Power On – ​ H old the power button on the top right for 3 seconds – a chime and a WELCOME screen will temporarily be displayed. The view of the camera lens will be displayed on the main LCD screen and LED at top of camera will be solid green. Power Off –​...
  • Page 4 Page Photographs Press the photo button to take a photograph. Photographs can be taken during video record mode. Photographs are in .JPEG format. Statements & Audio Button Record a statement ​ – When the device is ​ n ot recording ​ – press the audio button to record a statement.
  • Page 5 Page Playback The playback screen can be viewed by pressing the ​ O K ​ b utton​ ​ ( located under the LCD view screen) when the camera is in standby mode and on the main display screen. The user will be prompted to enter a password. The default password is ‘0’ – 6 times, by pressing the ​...
  • Page 6 Figure 2 Page Playback After selecting the form of data wished to be viewed, tab over to the file wished to be viewed and press the ​ O K ​ b utton​ ​ t o select that file. Pressing the​ OK ​ b utton​ ​ o n a video or audio file​...

  • Page 7: Menu Access

    To access the menu, press the ​ M enu ​ b utton or ​ l etter M​ , while on the main LCD view screen while the camera is in standby mode, the user will be prompted to enter a password (see Playback for password entry instructions).

  • Page 8: Special Features

    15. 18/30: ​ S creen Save​ - Allows user to set the amount of time before the device’s screen saver is on. Options are off, 30 second and, 1, 3, and 5 minutes. ● 19/30: ​ L CD Brightness​ - Allows user to change the brightness of the device’s screen. Options are low, medium and high. ●...
  • Page 9 3. Plug the USB cable directly into the computer 4. Use the charging base with the 12 volt adaptor while in the vehicle IMPORTANT: if the camera is not used and charged on a consistent basis, the camera’s battery will lose the ability to hold a charge. Batteries are not replaceable and not covered under warranty.
  • Page 10 4. The computer should then recognize the camera as a ‘D’, ‘E’, ‘F’, or ‘G’ drive. IMPORTANT: depending on your company’s firewall system, the camera may not be allowed access to your system thus preventing the viewing of data. Please contact your IT personnel to assist with this measure.
  • Page 11 (ie; video recording, photo capture, and power on/off). This is important as it will demonstrate when the camera has been in operation. If data is missing this file can be checked to ensure that the data files match the time and operation of use. 7.
  • Page 12 Failure to delete files which results in missed data being recorded will not be constituted as a warranty issue or a failure of the product nor will RoadScan Canada Inc be held liable for any data failed to be captured.
  • Page 13 Page 11 Camera Ports The PBC10 only features USB port on the right side of the camera. Use this port to access data on to the computer. There is no port for the addition of a mini camera at this time.
  • Page 14 DASH CAM The PBC10 can be used as a dash cam in your vehicle making it the most versatile camera in the industry . To attach the PBC10 docking station to your vehicle, locate the best suitable spot on the dashboard to allow for best viewing position, clean the area of the dashboard to ensure proper adhesion.
  • Page 15 Warranty is void in this circumstance. OPERATION OF DASH CAM The PBC10 may be in the record mode prior to placing the camera into the dock or alternatively, the record button may be pushed once the camera is in the docking station.
  • Page 16 Figure 14 Wifi App Settings 1. Ensure to turn ​ ‘ Wifi on’​ in the settings menu. 2. A green Wifi indicator will be visible on the top of the rear screen. Figure 15 3. Go to the Wifi Settings on the phone and locate MyDVR-XXXXXX. Figure 16 Page 14 Wifi App Settings...
  • Page 17 6. Live streaming (on the phone only, not remotely at a desk), control of recording and photographs will be functional. Figure 17 a. Video b. Take a photo - upper left corner c. Adjust brightness - upper left corner d. Camera list (if multiple cameras have been used by your phone) - upper right corner e.
  • Page 18 Figure 18 f. Speedometer (for dash camera functionality) g. Switch to hybrid GPS mode Hybrid GPS view provides a video view, date, time, and google maps location Figure 19 Page 16...
  • Page 19 Wifi App Settings 8. Orientates Northern direction 9. Mode (video or photo) and Quick Settings (resolution and other settings) 10. Quick settings provides the ability to adjust resolution, sync your device, format storage, reset camera settings and more. Figure 20 11.
  • Page 20 Wifi App Settings 12. Files can be located in the file list for video and photos. Figure 22 Figure 23 Page 18...

  • Page 21: Troubleshooting

    Reasons for the camera to stop functioning are:low battery, card full, multi buttons ● pushed simultaneously, incorrectly plugged into charging base or computer. PBC10 not charging: check the USB and port to make sure there is a proper ● connection.
  • Page 22 RoadScan Canada Inc. The content of this manual is furnished for informational use only, is subject to change without notice. RoadScan Canada Inc assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
  • Page 23 • DO NOT use this product to carry out any illegal activities such as sneak preview, etc. RoadScan Canada Inc shall not be responsible for any consequences of illegal conducts made by users.

  • Page 24: Warranty

    LIMITATION OF LIABILITY The liability of RoadScan Canada Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall RoadScan Canada Inc be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
  • Page 25 Page 22...
