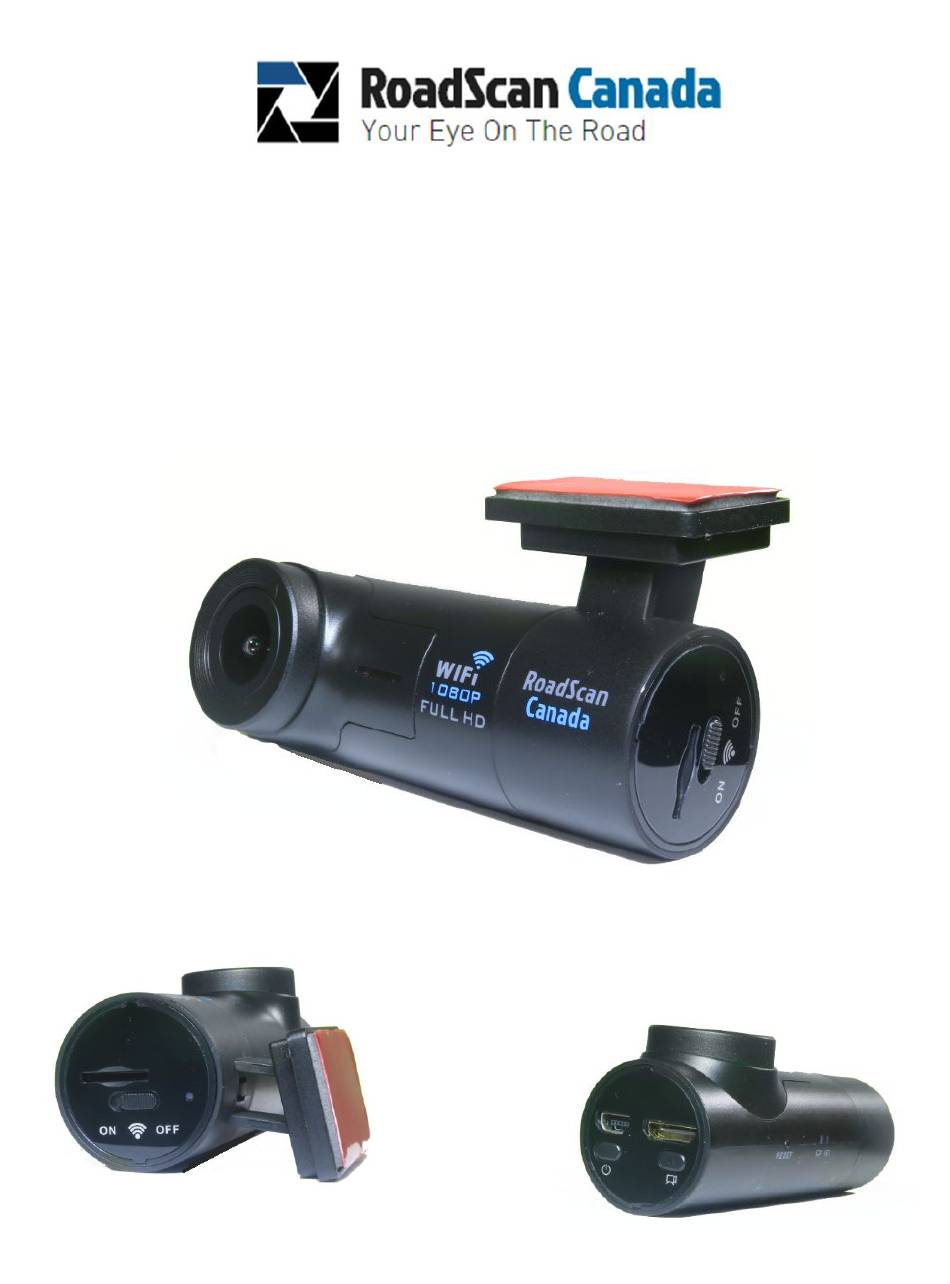

- Page 1 RoadScan Canada CAR DVR RSC DC3 USER INSTRUCTION MANUAL...
-
Page 2: Camera Layout
CAMERA LAYOUT 1.Lens 2.WiFi Indicator 3.WiFi On/Off 4.TF Card Slot 5.Power 6.Recording 7.Power/USB 8.HDMI 9.Reset 10.Recording Indicator 11.Charging Indicator BOX CONTENTS Hardwire Kit Car Charger USB Cable Fixed plate Suction Cup GPS (Optional) Page 1... -
Page 3: Installation
CHECK SD CARD IS WORKING DAILY. FAILURE TO DO SO MAY RESULT IN VIDEO NOT BEING RECORDED. RoadScan Canada Inc DOES NOT TAKE RESPONSIBILITY IF VIDEO IS NOT RECORDED DUE TO SD CARD ISSUES. 2.Slide the fixed plate to the DVR. - Page 4 4.Adjust the visual angle of the DC3. It is recommended to place the camera as much as possible behind the mirror so that the driver’s view is not blocked . N OTE: Figure 3 is strictly a representation of the camera attached to the windshield and not a suggestion of the placement on the windshield.
-
Page 5: Operation
OPERATION 1. P ower: the camera turns on when the car charger enters the USB port. Hold the power button (on side with USB port) to turn off/on (if required). If the camera is professionally installed with a hard wire kit (purchased separately), then the camera will turn on/off automatically when power is supplied or disconnected. - Page 6 App Store, download and install. Figure 6 2. C onnect WiFi : To connect the DC3 WiFi, locate SSID AMBA_BOSS (Amba), wait for the WiFi signal to indicate that there is a connection, enter password 1234567890, 123456789 or 12345678.
- Page 7 OPERATION FOR SMART CLIENT 3. View real-time recording : Once opened, live video feed from the DC3 will be displayed and recording. Figure 9 SETTINGS 1. Video must be stopped prior to viewing data or going to the settings menu. Stop the recording by pressing...
- Page 8 SETTINGS 2. Press the settings button to access the menu (Figure 11). Figure 11 3. The Setting Menu will display. (Figure 12) Figure 12 Page 7...
- Page 9 SETTINGS 4. FORMAT THE SD CARD - This must be done a minimum of every 30 days. FAILURE TO DO SO WILL NULLIFY ANY WARRANTY. IMPORTANT - ALL DATA WILL BE DELETED WHEN FORMATTING, MAKE SURE ALL DATA IS SAVED PRIOR TO FORMATTING.
- Page 10 SETTINGS Video Resolution: 2560x1080 30P 21:9/2304x1296 30P 16:9/1920x1080 30P 16:9/HDR 1920x1080 30P 16:9/1280x720 60P 16:9/1280x720 30P 16:9/HDR 1280x720 30P 16:9/1920x1080 45P 16:9; Default 2304x1296 30P 16:9 Photo Resolution: 4M(2688x1512 16:9)/9M(4000x2250 16:9)/13M(4800x2700 16:9); Default 4M(2688x1512 16:9) Video Stamp Date: On/Off/Cancel; Default On Video Stamp Driver ID: On/Off/Cancel;...
-
Page 11: File Playback
PHOTO MODE To reach photo mode, stop the recording button (figure 10), tap the ’photo button’ (Figure 13) and the camera switches to photo mode. To take a photo, tap the red photo button. Figure 13 To return to video mode, tap the grey video button. FILE PLAYBACK 1. - Page 12 FILE PLAYBACK 2. The screen in Figure 15 will be displayed with the list of menus at the top. Tap the menu to view. Videos that are part of an event or incident will be placed into the ‘event’ folder - these files cannot be deleted on the camera and can only be deleted on the computer.
- Page 13 TO VIEW YOUR FILES ON YOUR PC Plug your camera into your PC via the USB cord (provided) into the USB connection. Find the location of the camera on your PC. The computer should recognize the camera as D, E, F or G drive (or designated drive for your company), Figure 19.
-
Page 14: Recommendations / Troubleshooting
RECOMMENDATIONS / TROUBLESHOOTING ● It is recommended to reformat the TF card once a month - FAILURE TO DO SO WILL NULLIFY YOUR WARRANTY OF ANY KIND. ● If the video captured is long, it is recommended to download and view on the computer as the length in time to download will be reduced. -
Page 15: Camera Specifications
CAMERA SPECIFICATIONS Item Parameter Product Size 90*38.4*30mm Chipset Ambarella A7 Lens Fix Focus Lens(150 degrees) Video Resolution 1296P, 1080P, 720P, HDR 1080P, HDR 720P File Format Video mp4, H.264; JPG USB Port USB2.0 high Speed HDMI Output Support External Memory card TF card,up to 32GB G-sensor Support... - Page 16 • Please check the RSC DC3’s features periodically to ensure that it is operating as required. • Please use the RSC DC3 as a tool while driving and use driver’s safety while driving. • Please do not operate the functions of RS2000 while operating a vehicle.
- Page 17 Monitoring one’s private activities without consent is illegal and this product is not designed or manufactured for these purposes. • DO NOT use this product to carry out any illegal activities such as sneak preview, etc. RoadScan Canada Inc shall not be responsible for any consequences of illegal conducts made by users.
-
Page 18: Warranty
RoadScan Canada Inc. DOES NOT warranty installations. Improper installations will void the warranty. RoadScan Canada Inc DOES NOT warranty any DC3 using an unapproved SD card. All other cards, other than the one noted in this manual will nullify any warranty implied or assumed.
