Summary of Contents for RoadScan Canada DC3

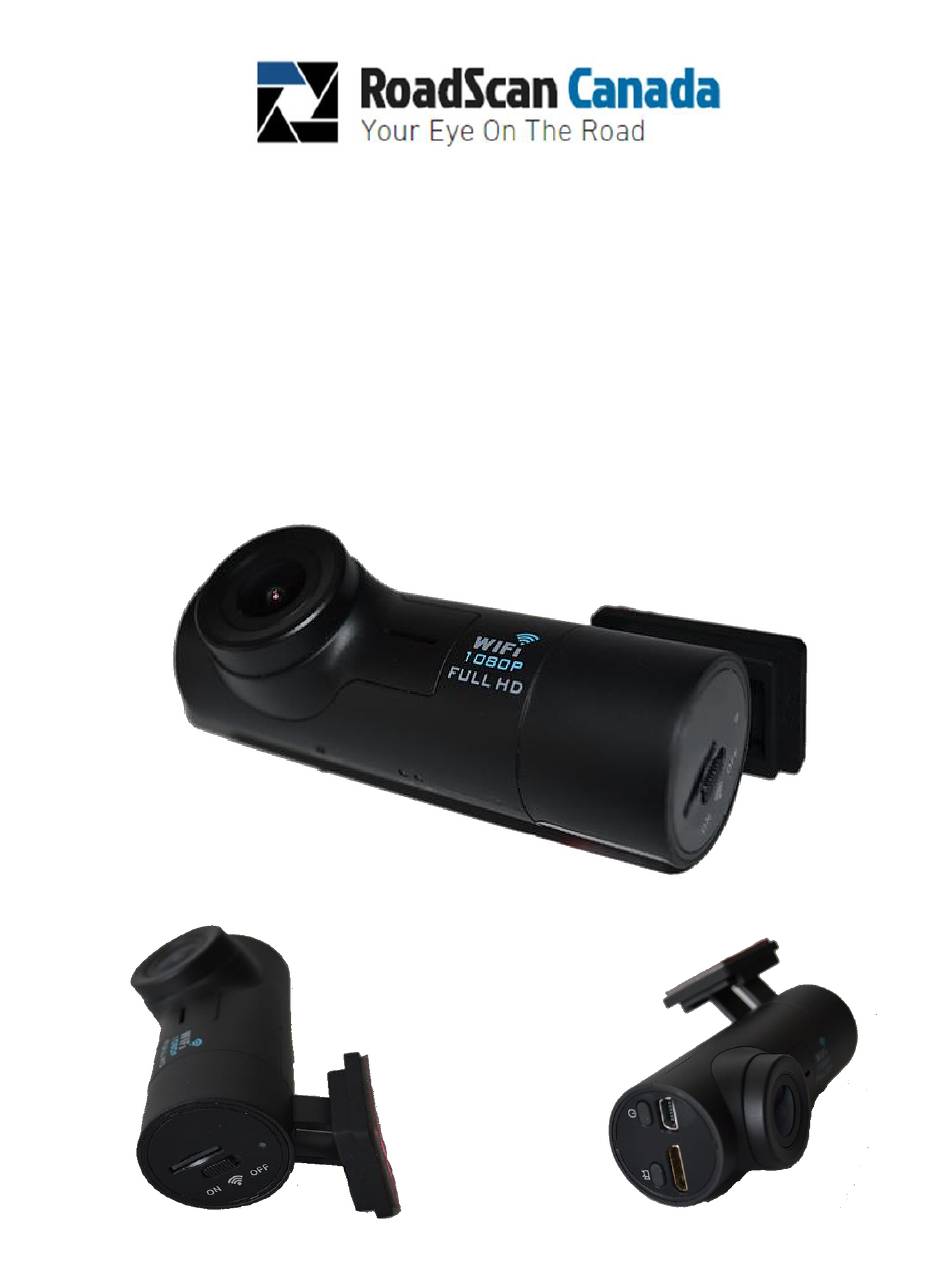

- Page 1 RoadScan Canada CAR DVR RSC DC3 USER INSTRUCTION MANUAL...
-
Page 2: Box Contents
Camera Layout 1.Lens 2.WiFi Indicator 3.WiFi On/Off 4.TF Card Slot 5.Power 6.Recording 7.USB 8.HDMI 9.Reset 10.Recording Indicator 11.Charging Indicator BOX CONTENTS Hardwire Kit Car Charger USB Cable Fixed plate Suction Cup GPS (Optional) Page 1... -
Page 3: Installation
INSTALLATION 1.Insert one TF card to the DVR as shown in figure below 2.Slide the fixed plate to the DVR. As shown in figure below 3.Attach the fixed plate to the appropriate place (eg.. The windshields of the car). Adjust the visual angle of the DVR. -
Page 4: Operation
4.Insert the car charger to the USB port. As shown in figure below OPERATION 1. Power turns on when the car charger enters the USB port. Hold the power button (on side with USB port) to turn off/on. If the camera is professionally installed with a hard wire kit (purchased separately), then the camera will turn on/off automatically when power is applied or disconnected. - Page 5 2. Connect WiFi: Before connecting WiFi, you may wish to forget passwords of all other WiFi hot spot names in your smartphone or tablet, otherwise you may have to reconnect your WIFI from your device to your camera. Find SSID (WiFi hot spot name). SSID name begins AMBA_. Password is 1234567890. 3.
- Page 6 Press the settings button to access the menu The settings menu will pop up. Under Video: turn both Video Time Stamp and Video Date Stamp on. Under Photo: turn both Photo Time Stamp and Photo Date Stamp on. Page 5...
- Page 7 4. Switching to Photo mode: After you stop the recording you can switch to Photo mode by clicking on the grey camera symbol: The red record button with a video camera symbol will have switched to a red button with a camera symbol. You can take photos by pressing this red button: Similarly, when in Photo mode you can press the video camera symbol to switch back to video mode.
- Page 8 On the top right corner, you will see the video resolution symbol, you can change the resolution as you like by clicking on the symbol and choosing the resolution. 5. View the video or photo files: After you stop the recording, an image from the recording will appear at the top left of screen.
- Page 9 Going back to the main screen, at the bottom right there will be a “task list” symbol. Clicking on this will show the downloaded media content. There are three available files: normal videos, photos and event videos. All these files can be shared. Clicking on Normal Files is another way to access the media files from the camera in which you can also Online Playback, Download or Delete the videos or photos.
- Page 10 To view files on your PC: Plug your camera into your PC via USB connection. Find the location of camera on your PC. The computer should recognize the camera as D, E, F or G drive. Open NORMAL to view all normal files From NORMAL file open media001 file to view all media files on your camera.
- Page 11 Camera SPECIFICATIONS Item Parameter Product Size 90*38.4*30mm Chipset Ambarella A7 Lens Fix Focus Lens(150 degrees) Video Resolution 1296P, 1080P, 720P, HDR 1080P, HDR 720P File Format Video mp4, H.264; JPG USB Port USB2.0 high Speed HDMI Output Support External Memory card TF card,up to 32GB G-sensor Support...
- Page 12 GPS Player Instructions – if you have purchased the GPS unit GPS Player zip file is included in the GPS player folder of camera micro SD card, extract it and execute the player. There is a link on our website for the GPS player, Datakam that can be downloaded (http://datakam.ee/player) 1.Open the GPS player, add file by clicking 2.Playback the video in the playlist, double click to play.
-
Page 13: Recommendations / Troubleshooting
RECOMMENDATIONS / TROUBLESHOOTING ● It is recommended to reformat the TF card once a month ● If the video captured is long, it is recommended to download onto and open on a computer as the length in time to download will be much faster. If your data is time stamped for 2015, go back into the settings, click on the time setting, then click the ‘ok’... - Page 14 • Please use the RSC PBC1 as a tool while driving and use driver’s safety while driving. • RoadScan Canada Inc shall not be held responsible for any traffic violations related to the positioning or improper use of our product.
- Page 15 Monitoring one’s private activities without consent is illegal and this product is not designed or manufactured for these purposes. • DO NOT use this product to carry out any illegal activities such as sneak preview, etc. RoadScan Canada Inc shall not be responsible for any consequences of illegal conducts made by users.
-
Page 16: Warranty
LIMITATION OF LIABILITY The liability of RoadScan Canada Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall RoadScan Canada Inc be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
