Summary of Contents for Repotec RP-PE054

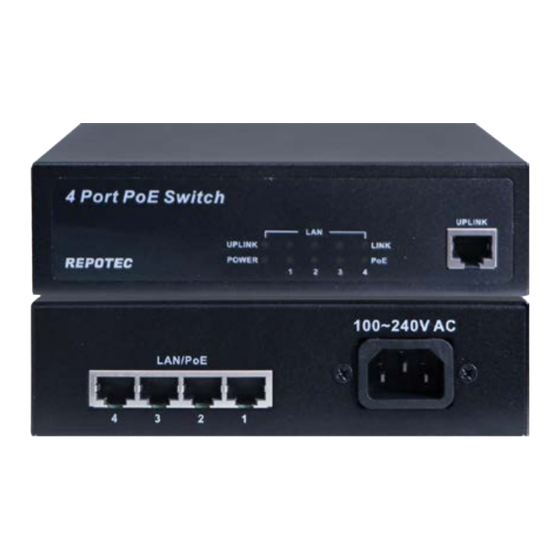

- Page 1 5 ports Fast Ethernet Switch With 4 Ports 802.3at PoE User Manual Ver 1.0...
- Page 2 Introductions The PoE Switch is a 5-port 10M/100M Fast Ethernet Switch with one uplink port plus 4 ports of Power over Ethernet capability. Per PoE port is power supply up to 30W. The total PoE power budget is 65W. It is an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.
- Page 3 Installation Steps 1. Use the power cord to power up the PoE switch, and the LED indicator “Power” will be on. 2. Connect “UPLINK” port of the PoE switch to other LAN switch via Ethernet Cat.5e/6/7 cables. The LED indicator “UPLINK” will be on. 3.
- Page 4 Technical Specifications IEEE 802.3: 10 BASE-T Standards IEEE 802.3u: 100 BASE-TX IEEE 802.3at/af: Power Over Ethernet MAC Address: 1K Features Buffer Memory: 512K bits Transmission Method: Store and Forward 100Mbps port - 148,800pps Filtering/Forwarding Rates 10Mbps port - 14,880pps 10BaseT Cat. 3, 4, 5 UTP/STP Transmission Media 100BaseTX Cat.
