Repotec RP-1008W User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

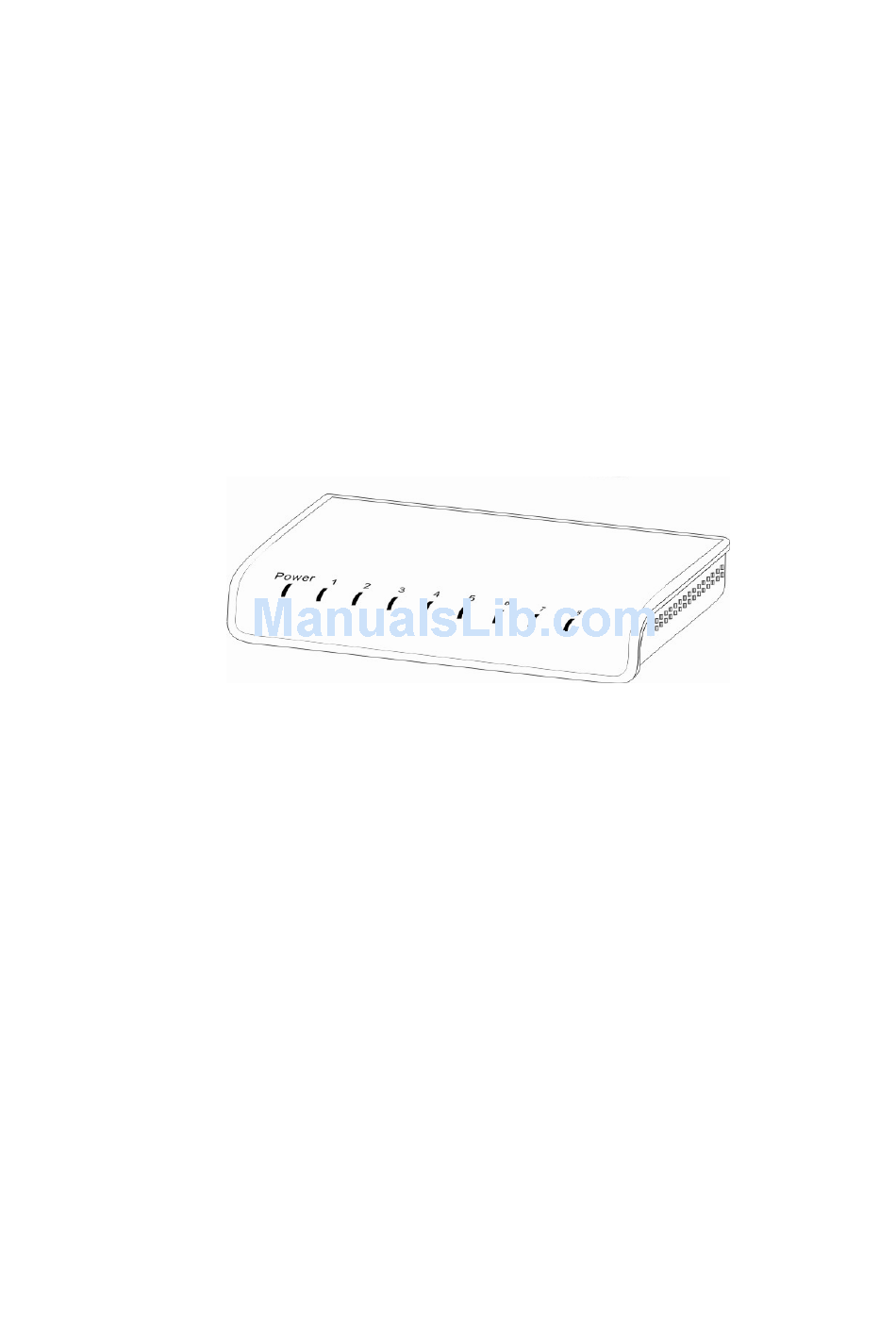

8 Port Nway Fast Ethernet
Web Smart Switch
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP-1008W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Repotec RP-1008W

Summary of Contents for Repotec RP-1008W

  • Page 1 8 Port Nway Fast Ethernet Web Smart Switch User’s Manual...

  • Page 2: Fcc Warning

    FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates and radiates radio frequency energy and, if not installed and used in accordance with the user’s manual, it may cause interference in which case users will be required to correct interference at their own expenses.

  • Page 3: Front Panel Leds

    Power Power is supplied through an external DC power adapter. Front Panel (LEDs) LED Indicators of 5/8 Port 10/100M Switch Status Operation Power Power is on. Power is off. LINK/ACT Port is for connection No connection. Flashing Data is transmitting or receiving. Rear Panel (Connections) Switch/Hub to this 5/8 Port Fast Ethernet Switch This switch provides automatic crossover detection functionality for any port.
  • Page 4 Configure Please follow the steps to configure this Web Smart switch. Step 1: Use a twisted pair cable to connect this switch to your PC. Step 2: Set your PC’s IP to 192.168.2.xx. Step 3: Open the web browser (like IE…), and go to 192.168.2.1 site, and then you will see the login screen.
  • Page 5 Step 4: On the following home page, select the configuration by clicking the icon. It includes, - Administrator - Port Management - VLAN Setting - QoS Setting - Port Security - Logout Administrator: Authentication Configuration You can change the user name and the password, and click “Update” to confirm the new change.
  • Page 6 Administrator: System IP Configuration You can change the IP address by typing the new IP address and click “Update” to confirm the new change, and then the message will show “Setting Process OK!!”, After that, you should reset this switch by power off and then power on it to complete the new change.
  • Page 7 Administrator: Firmware Update Follow the instruction on the screen to update the new firmware. Please contact with your sales agents to get the latest firmware information. Port Management: Port Control Configuration Select the “Port No.” which you want to configure the mode below, “Capability”...
  • Page 8 Port Management: Bandwidth Control Select the “Port No.” which you want to configure the mode below, “TX Rate” is meant you can set the maximum transmission rate of this selected port and choose the full speed or in 128K/256K/512K/1M/2M/4M/8M speed. “RX Rate”...
  • Page 9 Port Management: Max Packet Length You can select the maximum packet length setting, 1536 byte or 1552 byte of this switch. VLAN Setting: Group VLAN Setting There are 4 VLAN groups, 01, 02, 03, 04, can be used. You can select a group, and then click the port number which you want to put it into the selected VLAN group.
  • Page 10 VLAN Setting: Multi to 1 Setting This is a special design for easily setting the switch VLAN into “VLAN Per Port“. After this setting, all ports can only connect to the destination port. QoS Setting: Class of Service Configuration You can select the class of service for each port. QoS Setting: High Priority Queue Configuration You can select WRR low weight 1/4 or 1/8.
  • Page 11 QoS Setting: Customization Diffserv Please follow the instruction on the screen to update the setting. Port Security When this function is enabled, the port will record the first receiving source MAC address as the security MAC address and only allow the packet which has this MAC address to activate on the port.
  • Page 12 Technical Specifications Standards IEEE 802.3 10BaseT IEEE 802.3u 100Base TX IEEE 802.3x Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1p, Class of Service, Priority Protocols Ports 8 * RJ45 ports, with 10/100Mbps Transmission method Store-and-forward Packet Buffer 512K bits Mac Table Size Smart Features Port-based VLAN: Maximum 5/8 QoS: 2 Queues...
