NQ-GA20P2
Integrated
Power
Amplifier
Installation
and Use

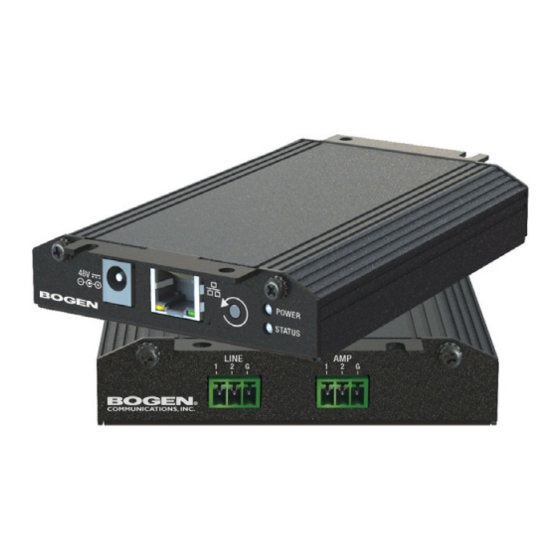

The NQ-GA20P2 is a 20W plenum rated Class
D integrated power amplifier. Designed to
operate over a 10/100 Ethernet network, the
NQ-GA20P2 is IEEE 802.3at compliant and can
be powered using Power-Over-Ethernet Plus
(PoE+) or the optional Bogen PS4830W 48VDC
power adapter. The NQ-GA20P2 can direct drive
a single 8 ohm load and has a balanced line out
to drive auxiliary power amplifiers.
Notice
Every effort was made to ensure that the
information in this manual was complete and
accurate at the time of printing; however, all
information is subject to change.
Publication Number 740-00059C
1911

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NYQUIST NQ-GA20P2 and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen NYQUIST NQ-GA20P2

Summary of Contents for Bogen NYQUIST NQ-GA20P2

  • Page 1 10/100 Ethernet network, the NQ-GA20P2 is IEEE 802.3at compliant and can be powered using Power-Over-Ethernet Plus (PoE+) or the optional Bogen PS4830W 48VDC power adapter. The NQ-GA20P2 can direct drive a single 8 ohm load and has a balanced line out to drive auxiliary power amplifiers.
  • Page 2 écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet. The ventilation should not be impeded by cover- 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.

  • Page 3: Important Safety Information

    - si l’appareil est destiné à être utilisé sous un climat tempéré. Important Safety Information WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.
  • Page 4 8. Unplug this apparatus during lightning storms or when unused for long periods of time. 9. Refer all servicing to qualified service 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.

  • Page 5: Installation

    3. Connect a Cat5 type cable into the module’s Ethernet port and ensure the other end of the cable is correctly connected to a PoE+ switch port on your network. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.
  • Page 6 Auxilary Ampli er. – Use Shielded Cable. Figure 1 4. If using a 48V power supply, connect the PS4830PV 48VDC power supply to the 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.
  • Page 7 Solid blue – The amplifer is in an uninitialized state and is not associated to a server. (The server may be in a discovery mode.) 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.

  • Page 8: Using The Reset Button

    For more information about resetting configuration settings, refer to the Nyquist NQ- GA20P Configuration Manual. Temperature Indicator 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 1-800-999-2809 © Copyright 2019, Bogen Communications, Inc.
  • Page 9 For more information, refer to the Nyquist NQ-GA20P2 Configuration Manual. Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class A dig- ital device, pursuant to Part 15 of the FCC rules.

  • Page 10: Limited Warranty, Exclusion Of Certain Damages

    (as confirmed by Bogen upon inspection) during the warranty period will be repaired or replaced by Bogen, at Bogen’s option, with new or refurbished product, provid- ed the product is shipped insured and prepaid...
  • Page 11 MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen’s liability arising out of the manufacture, sale or supplying of prod- ucts or their use or disposition, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product.
  • Page 12 -- same address as above or call 201-934-8500, at owner’s expense. Returned products which do not qualify for warranty service, may be repaired or replaced at Bogen’s option with a previously repaired or refurbished items. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bo- gen Factory Service Department.
